30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 369

Connection manual (Hardware)
B-63943EN/02 13.PANEL i
- 351 -
13.6.11 Ethernet
CAUTION
Before attaching or detaching cables, turn off the
power to the PANEL i, and ensure that the power
is off.
When installing a network, be very careful not to
allow the network to be affected by the influence of
other noise sources.
Some devices required for networking are not
dust-proof. When using such a device, be sure to
install it in a dust-proof cabinet.

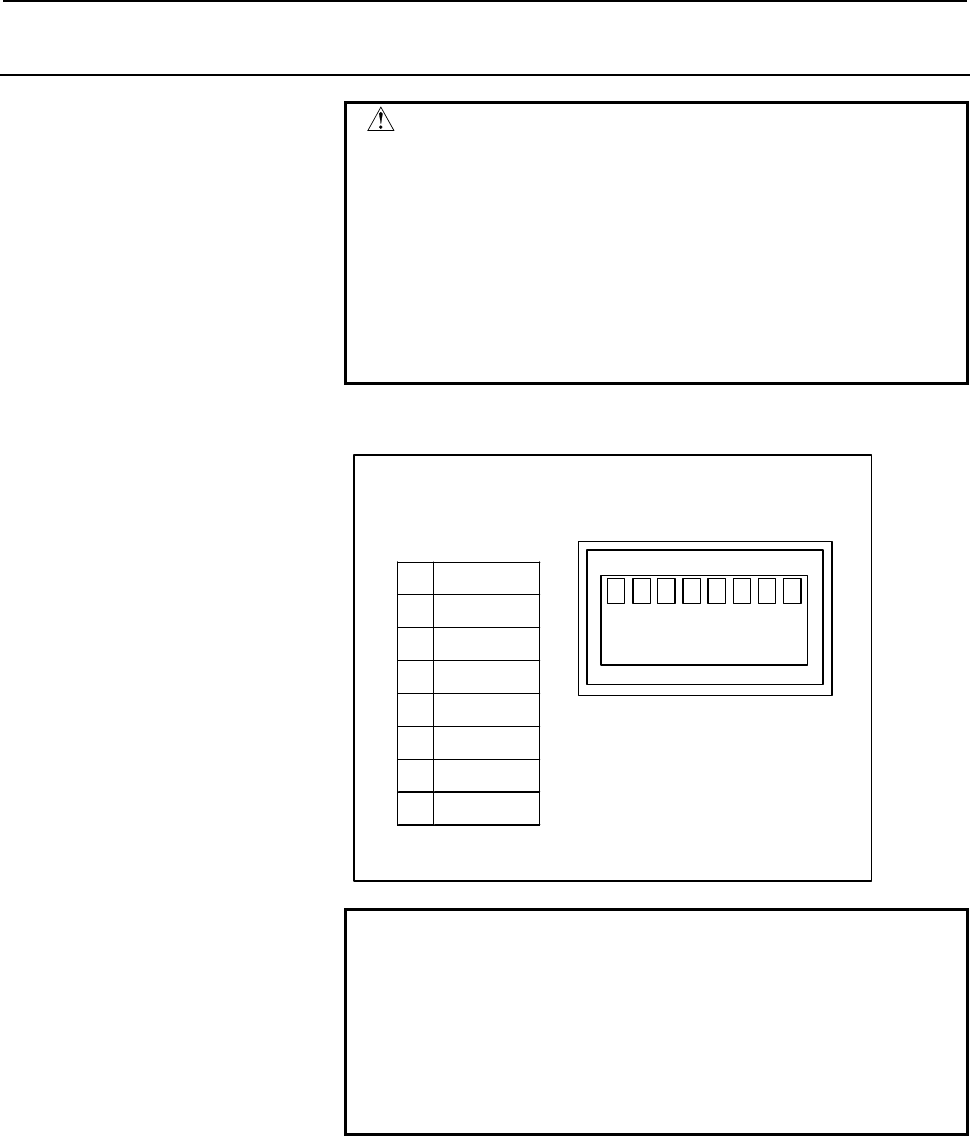

PANEL i
1 TX+
2 TX-
3 RX+
4
5
6 RX-
7
8
CD38U
(RJ-45)
1 2 3 4 5 6 7 8
NOTE
1 For connection, be sure to use category 5 twisted
pair cables with a common shield.
2 Commercially available cables are classified into
cables for straight connection and cables for cross
connection. Select an appropriate type according
to the use.
3 The total cable length is 100 m maximum.
