30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 202

Connection manual (Hardware)
8.CONNECTION TO FANUC I/O Link B-63943EN/02
- 184 -

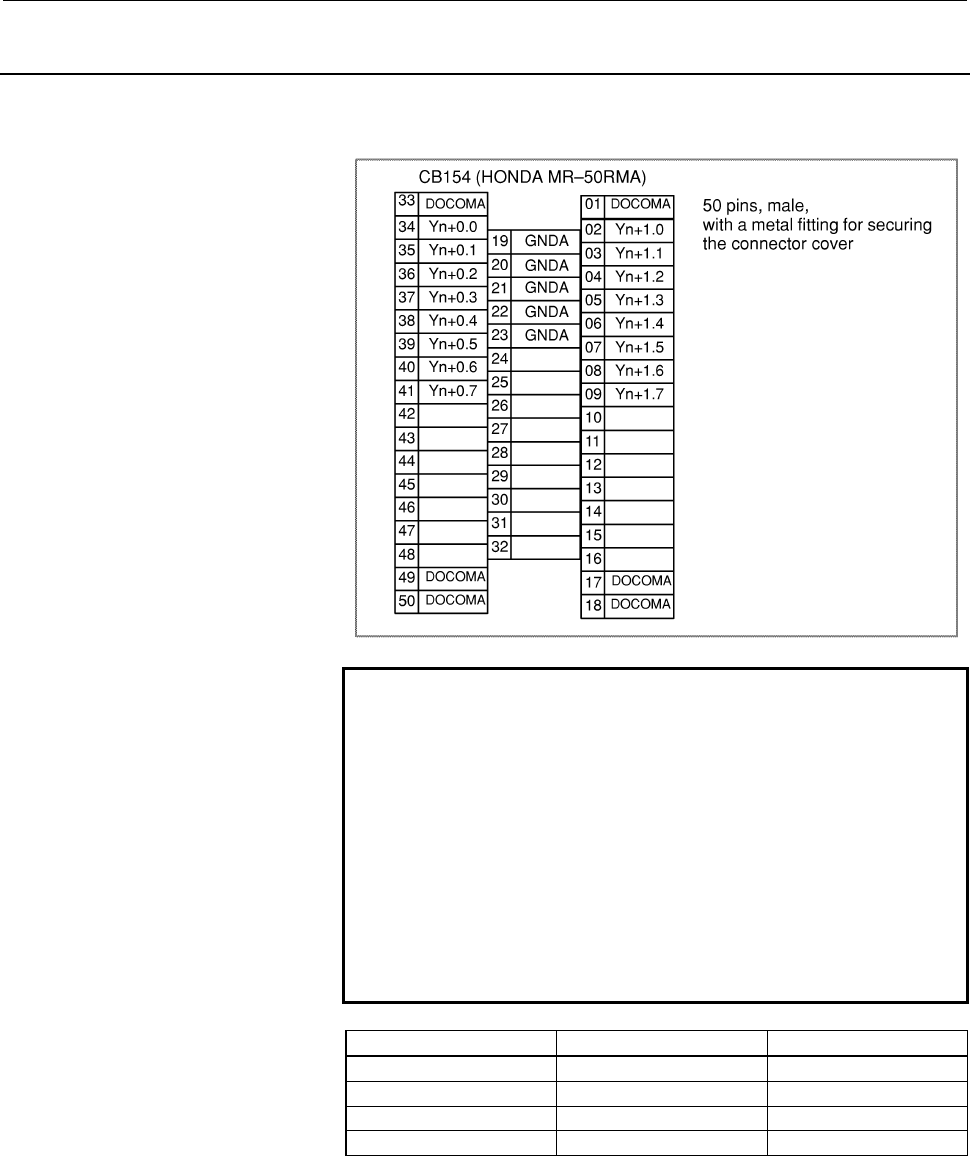

8.4.8 2A Output Connector Pin Allocation
This section describes the 2A output connector pin allocation of
expansion module C.
NOTE
1 The DI/DO addresses of an expansion module and
the DI/DO addresses of the basic module are
contiguous. Addresses allocated to I/O Link are
handled as a group covering the basic and
expansion modules. That is, when the first
addresses allocated are X0004 and Y0000 (m = 4,
n = 0), the DI/DO addresses are as listed below.
2 When the 2A output module is used, the DI
addresses of the module cannot be used. (When
the 2A output module is used as expansion module
3, X13 through X15 cannot be used.)
DI DO
Basic module X4 to X6 Y0 to Y1
Expansion module 1 X7 to X9 Y2 to Y3
Expansion module 2 X10 to X12 Y4 to Y5
Expansion module 3 X13 to X15 Y6 to Y7
