30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 178

Connection manual (Hardware)
8.CONNECTION TO FANUC I/O Link B-63943EN/02
- 160 -
Weight of optical link adapter
Main body: Approx. 100 g.

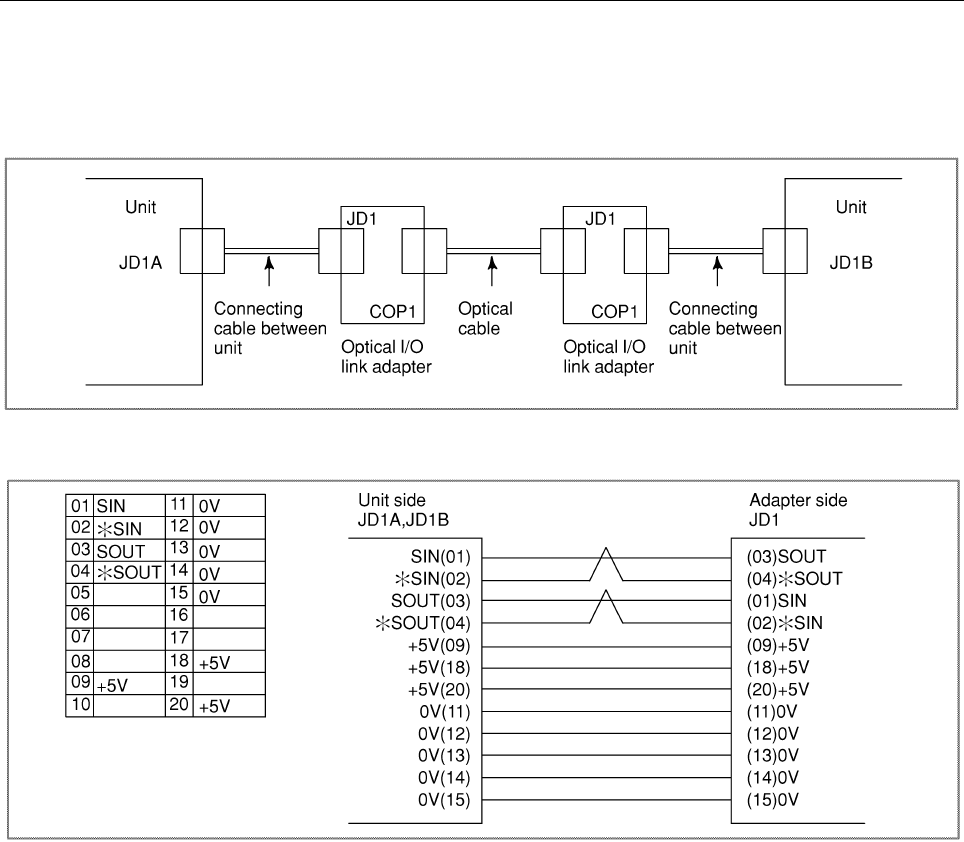

• Connection
• Connection diagram
1 Recommended cable connectors
PCR-E20FA (Honda Tsushin Kogyo Co., Ltd.)
FCN-247J020-G/E (Fujitsu Ltd.)
52622-2011 (Molex Japan Co., Ltd.)
2 Recommended cable (wire material) : A66L-0001-0284#10P
3 Cable length : Max. 2 m (when the recommended cable is used)
• Optical cable
1 Specification:
A66L-6001-0009# L5R003 ........ 5 m long
A66L-6001-0009# L10R03 ........ 10 m long
A66L-6001-0009# L15R03 ........ 15 m long
2 Cable length
Maximum length: 200 m (standard type)
Maximum length: 100 m (high-speed type)
