30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 276

Connection manual (Hardware)
8.CONNECTION TO FANUC I/O Link B-63943EN/02
- 258 -
8.9.3.8 Manual pulse generator connection
When only the manual pulse generator.

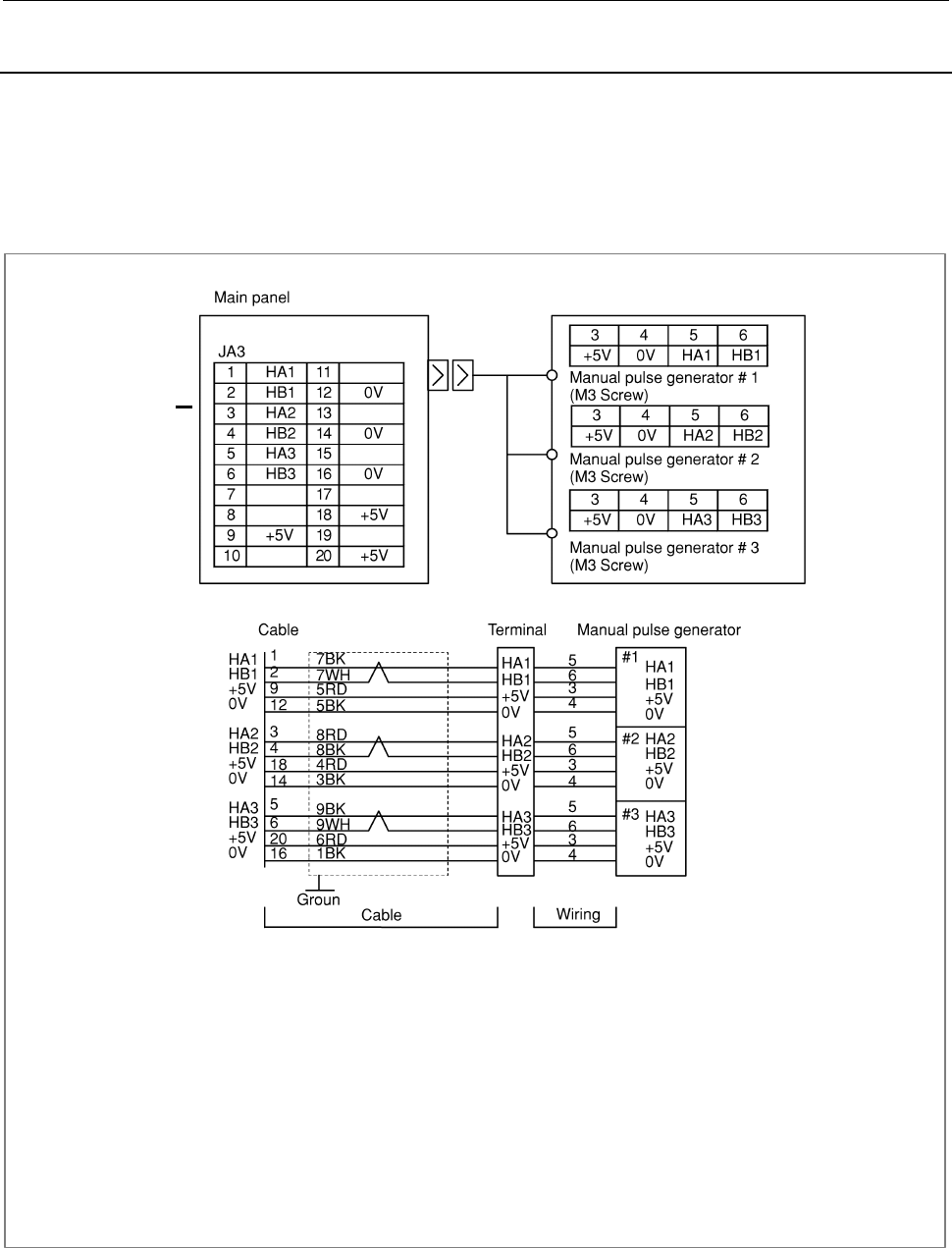

Example of the 3 manual pulse generator connection is as follows. If
this CNC uses some I/O unit having MPG interface (ex. Dispersion
type I/O module for panel) and this operator's panel, the MPG
interface nearest the CNC is only available on the I/O Link
connection.
When the depth of the operator's panel is 80mm min.
Recommended wire material : A66L-0001-0286(#20AWG
×
6+#24AWG
×
3 pairs)
Recommended connector : A02B-0120-K303 (Including below connector and case)
(Connector : HIROSE FI40B-2015S Soldering type)
(Case : HIROSE FI-20-CV)
Recommended cable : A02B-0120-K841(7m) (MPG 3 units)
A02B-0120-K848(7m) (MPG 2 units)
A02B-0120-K847(7m) (MPG 1 unit)
(These cables don't include the wiring part in the figure.)
When the depth of the operator's panel is 60mm min.
Recommended wire material : A66L-0001-0284#10P(#28AWG
×
10pairs)
Recommended connector : A02B-0236-K302 (Including below connector and case)
(Connector : HIROSE FI30-20S Stand wire press-mount type)
(Case : HIROSE FI-20-CV7)
