8.CONNECTION TO FANUC I/O Link B-63943EN/02

- 204 -

8.4.20 Distribution I/O Setting

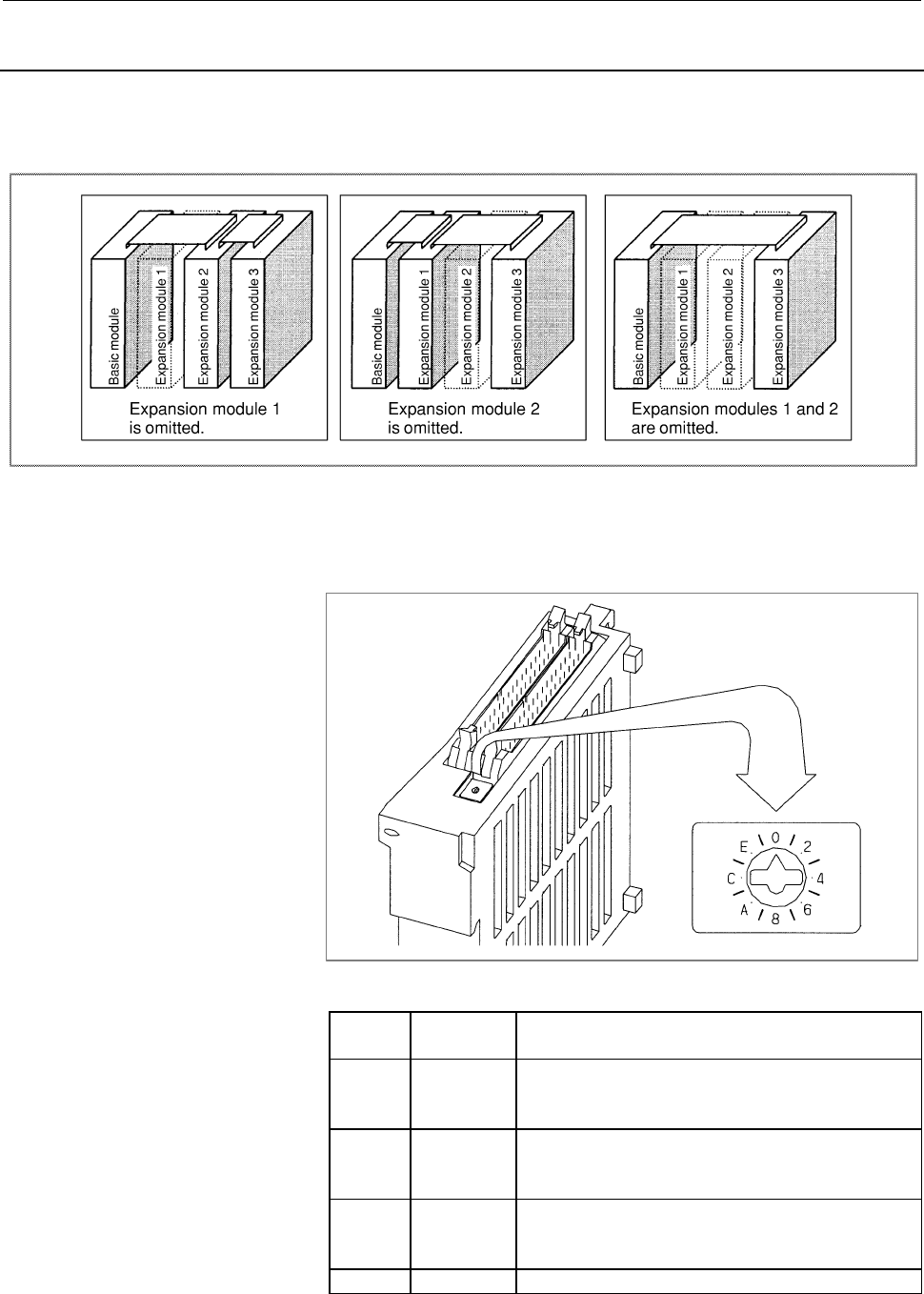

By changing the setting (rotary switch) for the expansion modules,

connections can be made by omitting some expansion modules as

shown below.

Method of setting (control and method of setting the control)

As shown below, the control (rotary switch) is located on an

expansion module. To change the setting, turn the switch with a

flat-bladed screwdriver with a tip width of about 2.5 mm.

The function of the rotary switch is as follows:

Setting

position

Actual

indication

Meaning of setting

0 0 This is the standard setting. The rotary switch is

factory-set to this position. This setting is used

when no expansion module is omitted.

1 - Set the rotary switch on an expansion module to

this position when the preceding expansion module

is omitted.

2 2 Set the rotary switch on an expansion module to

this position when the preceding two expansion

modules are omitted.

3 - This setting is prohibited.
