11.CONNECTION FOR Series 300is/310is/320is B-63943EN/02
- 306 -

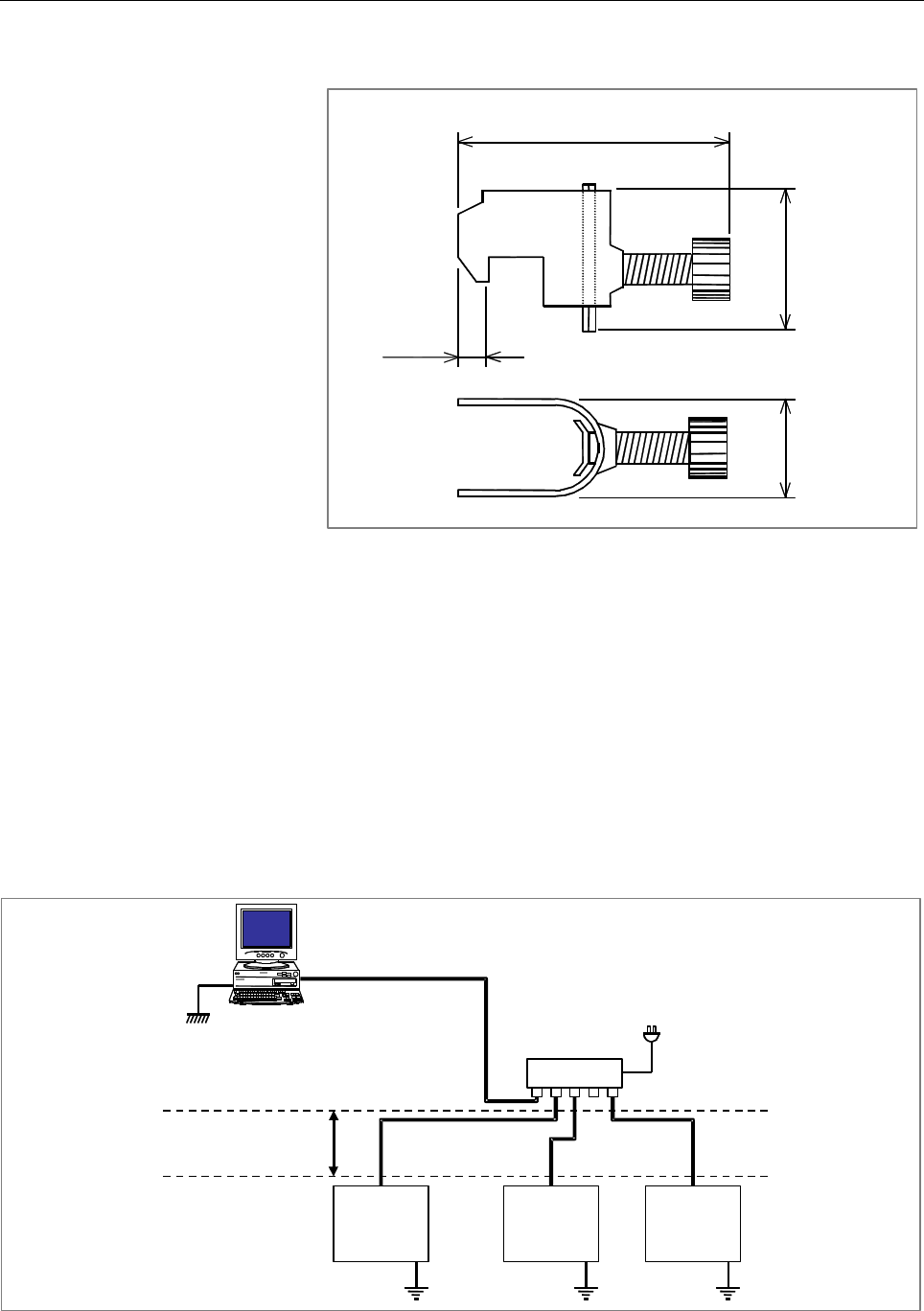

Outer drawings of metal fittings for clamp.
Max. 55mm
28mm
6mm
17mm
Ordering specification for metal fittings for clamp
A02B-0083-K301 (20 pieces)
(iii) Network Installation
Even when the machine satisfies its grounding requirements,
noise from the machine may get on communication lines
depending on the way the machine is installed and its
environment, resulting in a communication error.
Separating and isolating the Ethernet backbone cable and
PC from the machine can prevent noise from getting on the
communication lines.
An example of connection is shown below.
[Large-scale network]
HUB
Machine
STP cable
Electrical separation by connection
with 10BASE-T/100BASE-TX
PC
PC and backbone cable side
Machine system
(Note1)
Power supply for the HUB
(Note1)
Machine
(Note1)
Machine
(Note1)
STP cable
