B-63943EN/02 11.CONNECTION FOR Series 300is/310is/320is

- 311 -

11.3.4.2 Serial port 2

LCD-mounted type or

display unit for

s series CNC

PCR-E20MD

JD54

Reserve 6 Reserve

Reserve 8

Reserve

Reserve 9 +24V

+24V 10 Reserve

D-SUB 25

Relay connector (example 1)

RS 4

CS 5

DR 6

SG 7

CD 8

+24V25

D-SUB 9

Relay connector (example 2)

ER 4

SG 5

Shield

NOTE

1 The +24V signal is used as the power supply to

FANUC's RS-232C device.

2 This connector is used also as a USB port. The

Reserve pins must be left open.

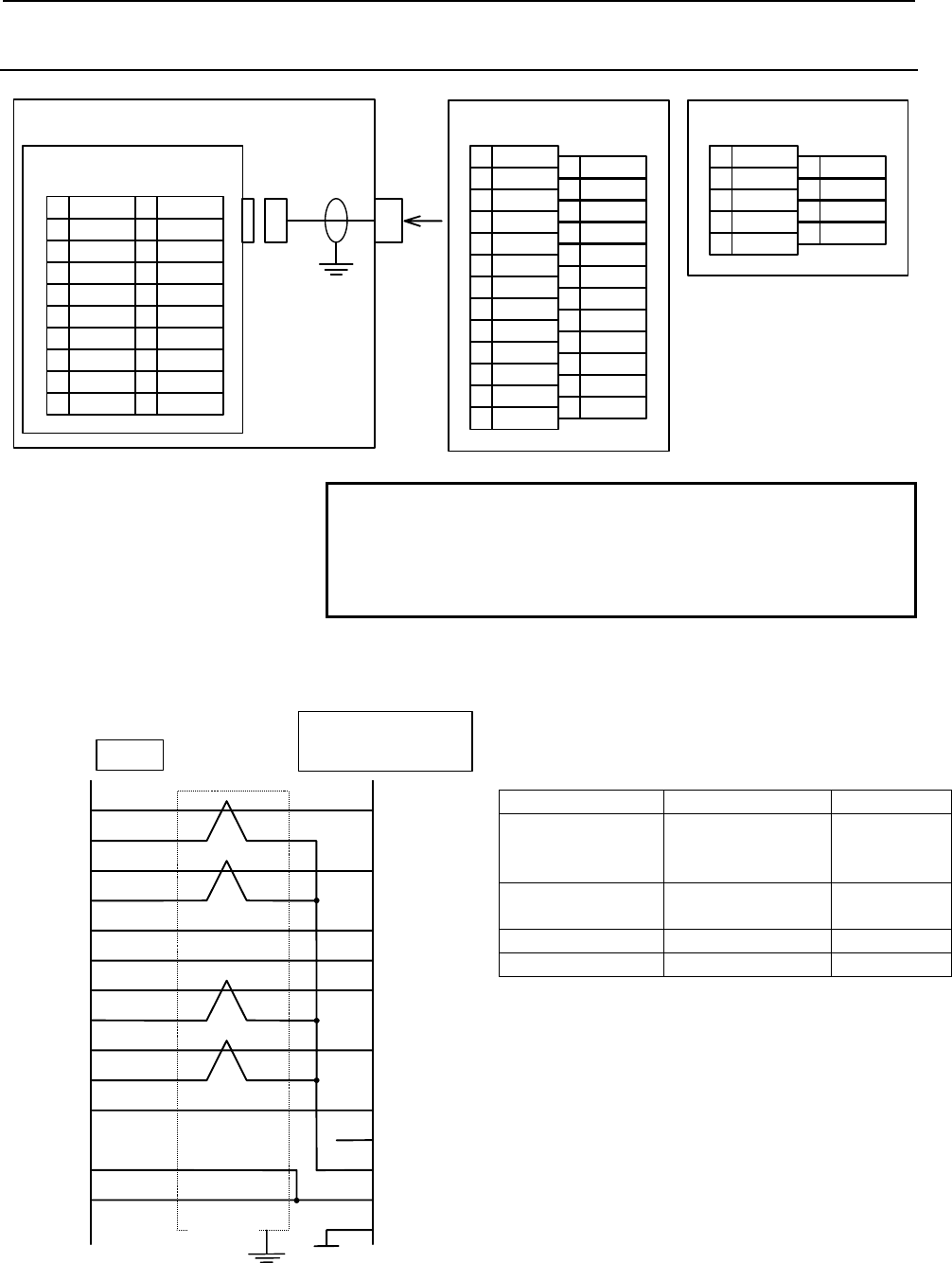

(i) Connection example (Example 1: Conversion to D-SUB 25-pin

connector)

Recommended wire specification:

A66L-0001-0284#10P

(#28AWG

× 10 pairs)

Recommended connector and housing (JD54 side):

Connector Housing Manufacturer

PCR-E20FA PCR-V20LA Honda

Tsushin

Kogyo

FI30-20S FI-20-CV2

FI-20-CV7

Hirose

Electric

FCN-247J020-G/E FCN-240C020-Y/S Fujitsu

52622-2011 52624-2015 Molex Japan

Recommended cable specification (name: Punch panel)

For JD36A, JD56A, JD54

Narrow type

A02B-0236-C191 (1m)

A02B-0236-C192 (2m)

A02B-0236-C193 (5m)

Relay connector

D-SUB 25

(Example 1)

+24V

GND

Ground

plate

Shield

JD54
