30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 489

Connection manual (Hardware)
B-63943EN/02 APPENDIX E.LIQUID CRYSTAL DISPLAY (LCD)
- 471 -
(2-2) For A02B-0236-K130
<1> Peel off the white film attached on the back (facing the
LCD) of the new protection sheet.

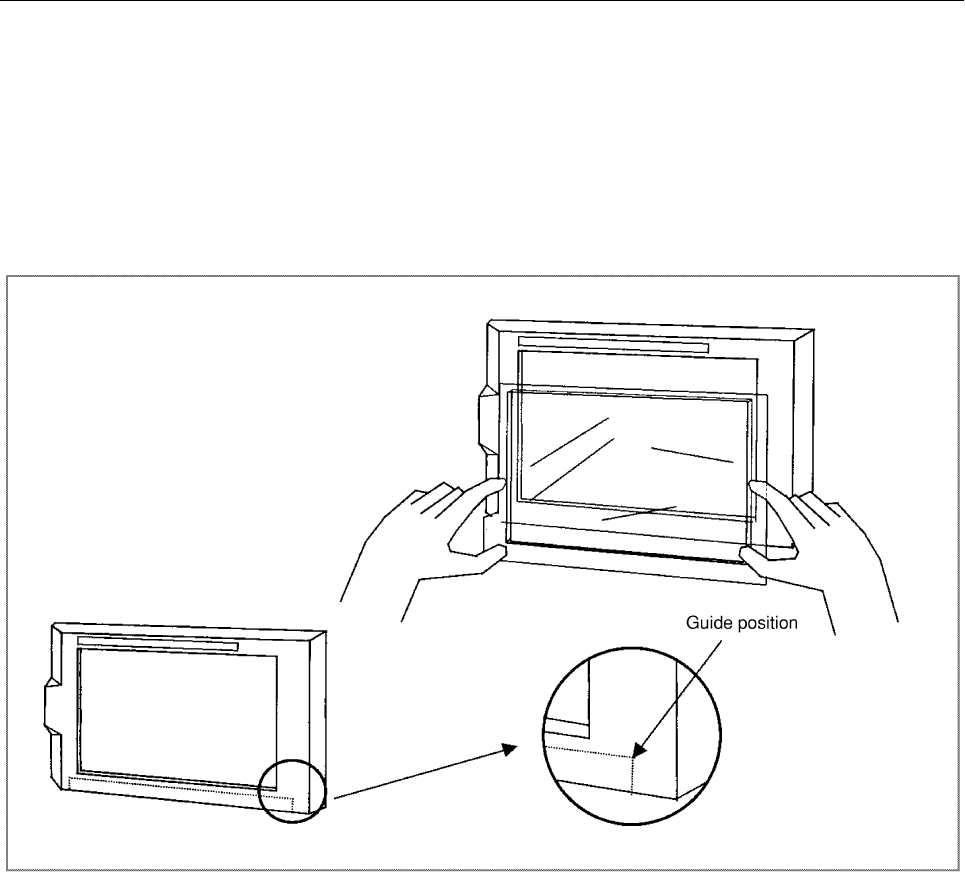

<2> Attach the protection sheet so that it is to the lower-left
of the replacement tab. At this time, align the
overhang edge at bottom of the escutcheon with the
corresponding part of the protection sheet. In
addition, prevent dust from entering between the LCD
and protection sheet.
<3> Attach the four sides while pushing out air between the
touch panel and protection sheet.
Do not pull the protection sheet to correct its position
with the part of the sheet kept stuck to the touch panel.
<4> Press the adhesive parts of the four sides, and attach
the sheet completely.
Check that the four corners and four sides of the
protection sheet do not float.
(3) Checks after replacement
<1> Check that there is no wrinkle on the surface of the
protection sheet.
<2> After power-on, check that there is no touch panel portion
kept pressed.
<3> Press the touch panel, and check that correct operation takes
place.
