4.POWER SUPPLY CONNECTION B-63943EN/02
- 68 -
Replacing D-size alkaline dry cells in the battery case
Replace four D-size alkaline batteries (A06B-6050-K061) in the
battery case installed in the machine.
(1) Have four D-size alkaline batteries on hand.
(2) Loosen the screws on the battery case. Remove the cover.
(3) Replace the alkaline batteries in the case. Pay careful attention to
the polarity of the alkaline batteries.
(4) Attach the cover.

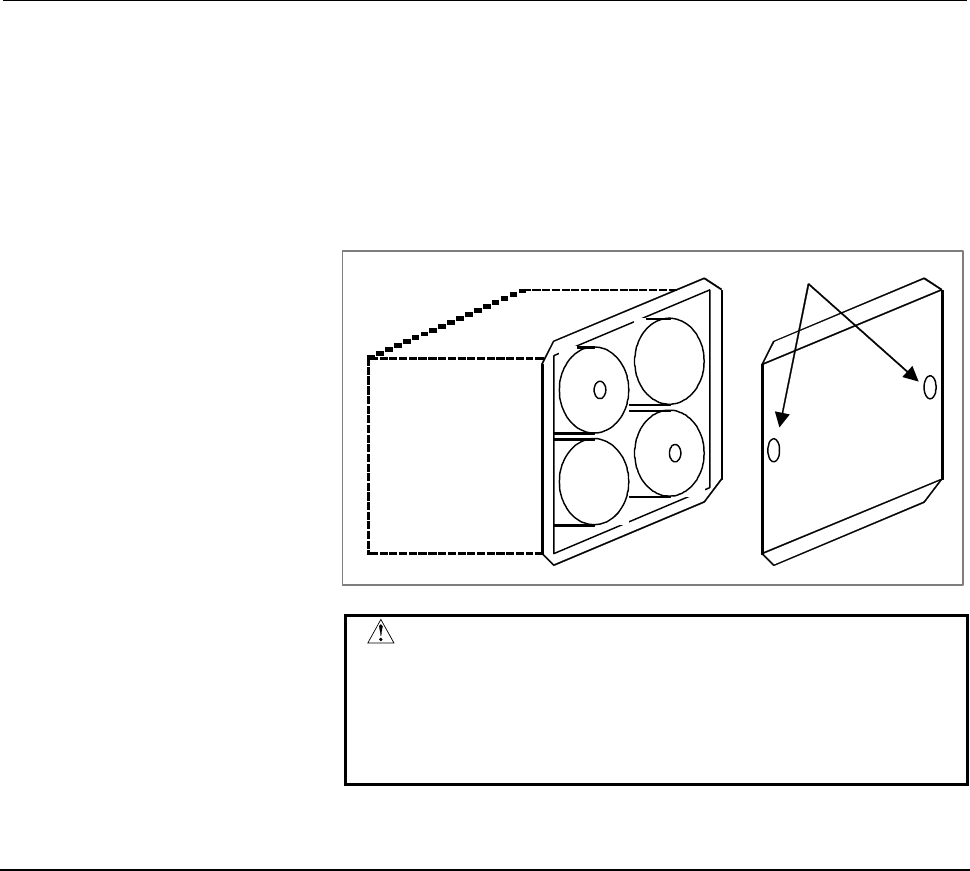

Screws
Cover
CAUTION
Install the battery with correct polarity. If the
battery is installed with incorrect polarity, it may
overheat, blow out, or catch fire. Or, absolute
position information in absolute pulse coders may
be lost.
4.4.4 Battery for Absolute Pulse Coder Built into the Motor (6VDC)
The battery for the absolute pulse coder built into the motor is
installed in the servo amplifier. For how to connect and replace the
battery, refer to the following manuals:
• FANUC SERVO MOTOR αi series Maintenance Manual
• FANUC SERVO MOTOR β series Maintenance Manual
• FANUC SERVO MOTOR β series (I/O Link option)
Maintenance Manual
