B-63943EN/02 8.CONNECTION TO FANUC I/O Link
- 171 -
FCN-247J020-G/E (Fujitsu)
52622-2011 (Molex Japan Co., Ltd.)
Connector FI30-20S (Hirose Electric Co., Ltd.) cannot be used as
connector JD51A for the stand-alone type 30i series main CPU board.
Recommended cable: A66L-0001-0284#10P
Cable length

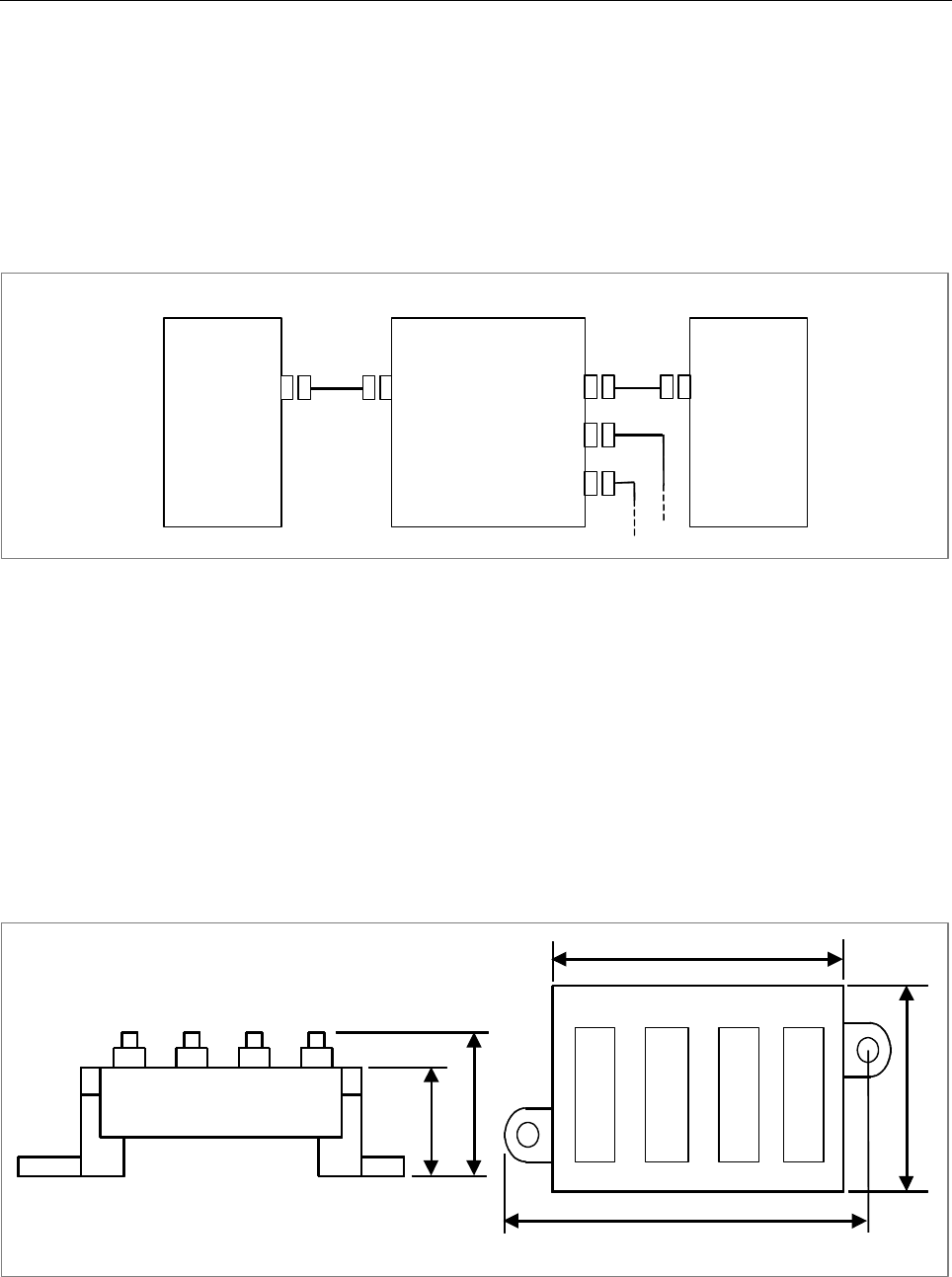

JD51A JD51B
JD1A
JD1B
L
A
CNC
I/O Link branching adapter
I/O Unit
L
B
JD44A-1
JD44A-2
The total of L
A
and L
B
must not exceed 10 m; where L
A
is the length
of the cable between connector JD51A on the CNC and connector
JD51B on the I/O Link branching adapter, and L
B
is the length of the
cable between connector JD44A-1, JD44A-2, or JD1A on the I/O Link
branching adapter and connector JD1B on the I/O unit. When all
cables are accommodated in the same cabinet, however, a total cable
length of up to 15 m is allowed.
Installation of the I/O Link branching adapter for three channels
Install the I/O Link branching adapter for three channels in a
hermetically sealed cabinet like the CNC.
External dimensions of the I/O Link branching adapter for three channels
Unit : mm
23
34
JD44A-2 JD44A-1
JD1A
80
45
105
JD51B
Allow a clearance of about 10 cm above the adapter for connection
and routing of cables.
