B-63943EN/02 11.CONNECTION FOR Series 300is/310is/320is

- 291 -

11.2 INSTALLATION

11.2.1 Connector Names and Connector Layout

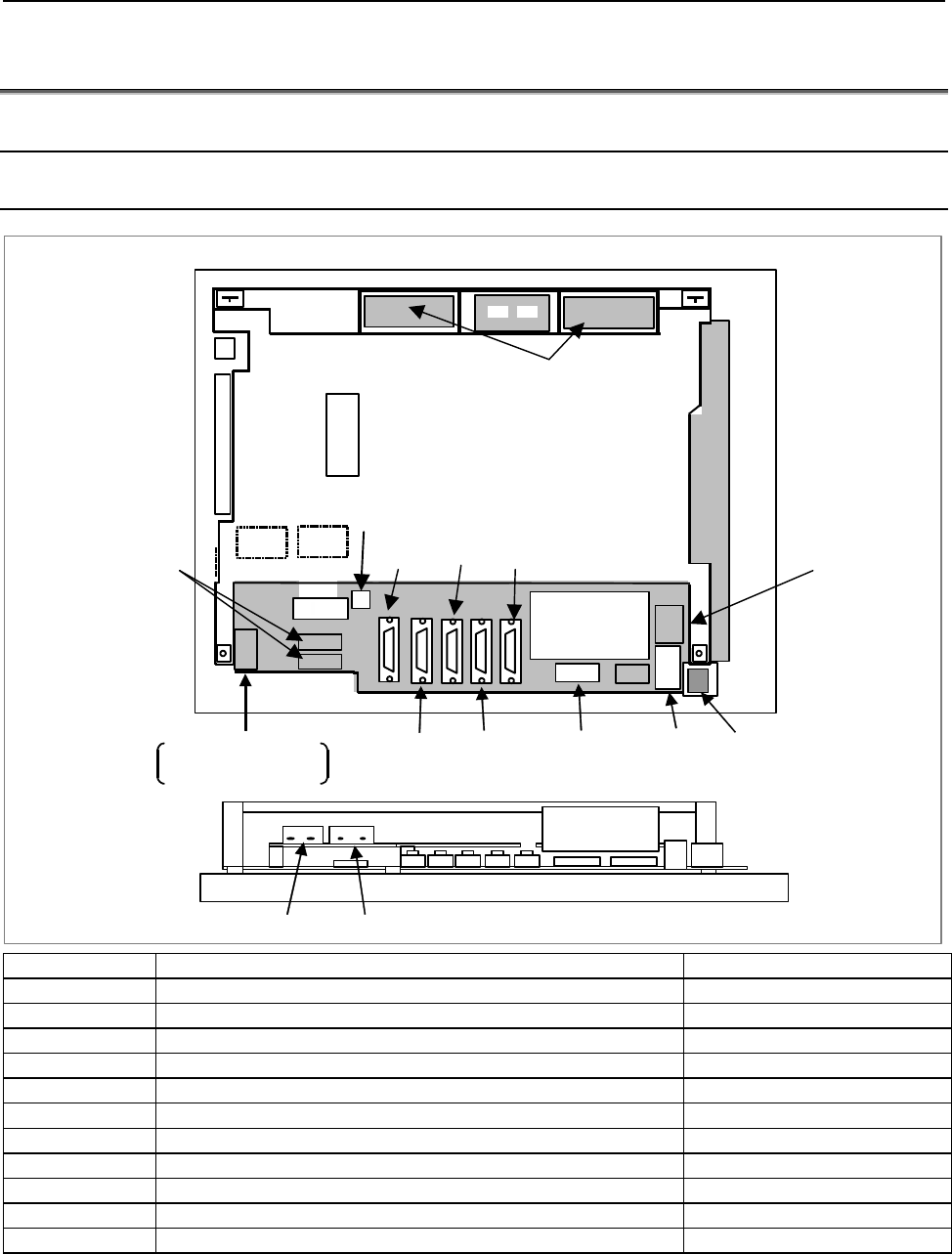

11.2.1.1 LCD-mounted Type Series 300is/310is/320is

COP10A-1

COP10A-2

Rear view

CP16A

CA75

Inverter connector

for 12.1"/15" LCD

JD54

JD51A

CD38S

CA55

JD56A

JA40

JA41

Power supply

module

Fuse

CA76

Soft key

Fan unit

Battery

Connector No. Function Reference item

CPD16A Connector for power supply 11.3.1

JA41 Connector for serial spindle 6.1

JD51A Connector for I/O Link 8.2

JA40 Connector for analog spindle or high-speed skip 5.4

JD56A Connector for I/O device interface or serial spindle

11.3.4.1，6.1

CA55 Connector for MDI 5.1

COP10A-1/2 Connector for servo unit (1 : left side, 2 : right side)

CA75 Connector for backup unit 11.3.2

JD54 Connector for I/O device interface or USB device connection 11.3.4.2 , 11.3.4.3

CD38S Connector for Ethernet 11.3.3

CA76 Connector for buzzer 11.3.6
