B-63943EN/02 8.CONNECTION TO FANUC I/O Link

- 163 -

Using the second channel

To use the second channel, use the I/O Link branching adapter to set a

branch in the FANUC I/O Link.

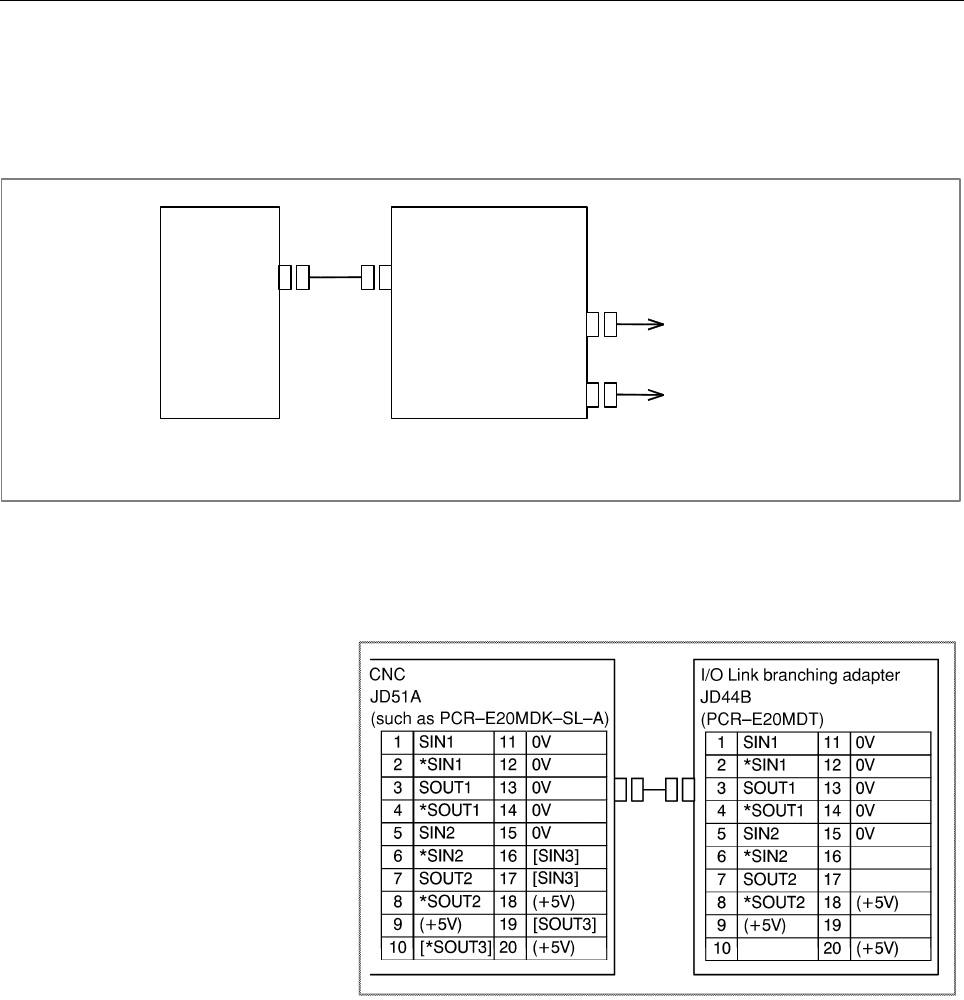

Connection

I/O Link branching adapter

JD44B

JD1A-1

JD1A-2

CNC

JD51A

FANUC I/O Link channel 1

FANUC I/O Link channel 2

Connection after the I/O Link branching adapter

is the same as that for the FANUC I/O Link.

Part number of the I/O Link branching adapter:

A20B-1007-0680 (60 g)

Connection between the CNC and I/O Link branching adapter

The +5V pin is provided to use the optical I/O Link adapter for optical

fiber transmission. When not using the optical I/O Link adapter,

leave the +5V pin unconnected.

The signals with brackets ([ ]) are used when three channels are

connected in the FANUC I/O Link.
