30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 224

Connection manual (Hardware)

Page of 512

/ 512

8.CONNECTION TO FANUC I/O Link B-63943EN/02

- 206 -

8.5 CONNECTION OF OPERATOR'S PANEL I/O MODULE

(FOR MATRIX INPUT)

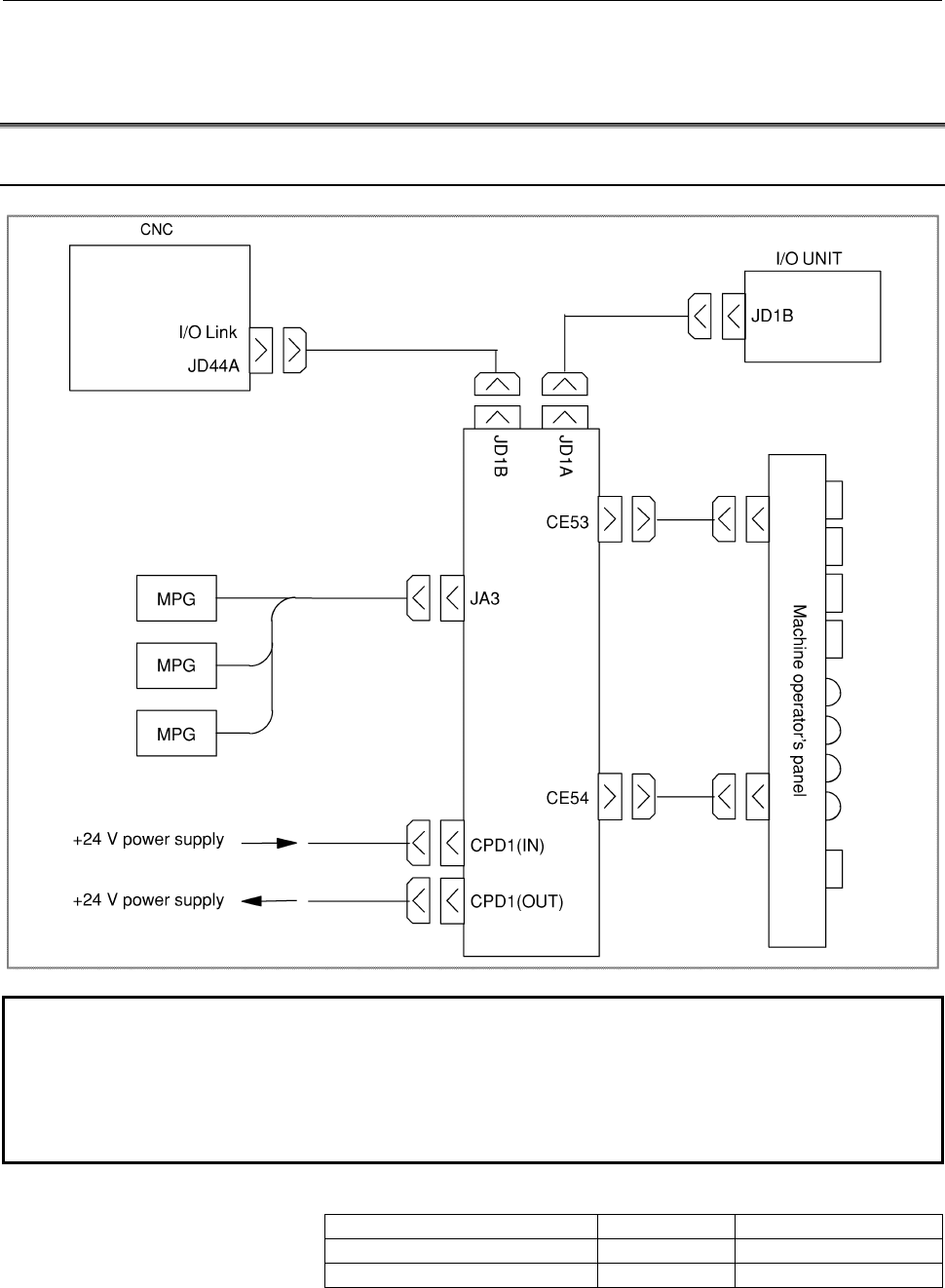

8.5.1 Overall Connection Diagram

NOTE

When the operator's panel I/O module is used together with a unit (connector panel

I/O module) connected to the I/O Link supporting another MPG interface, only the

MPG interface of the unit (module) closest to the CNC connected to the I/O Link is

enabled. The following screw type connectors, newly incorporated into the 30i

series main board, cannot be used to connect the I/O Link or MPG.

Connectors that cannot be used on the cable side

Specification Manufacturer

Connector case FI-20-CV7 Hirose Electric Co., Ltd.

Connector case and connector FI30-20S-CV7 Hirose Electric Co., Ltd.
