B-63943EN/02 4.POWER SUPPLY CONNECTION

- 53 -

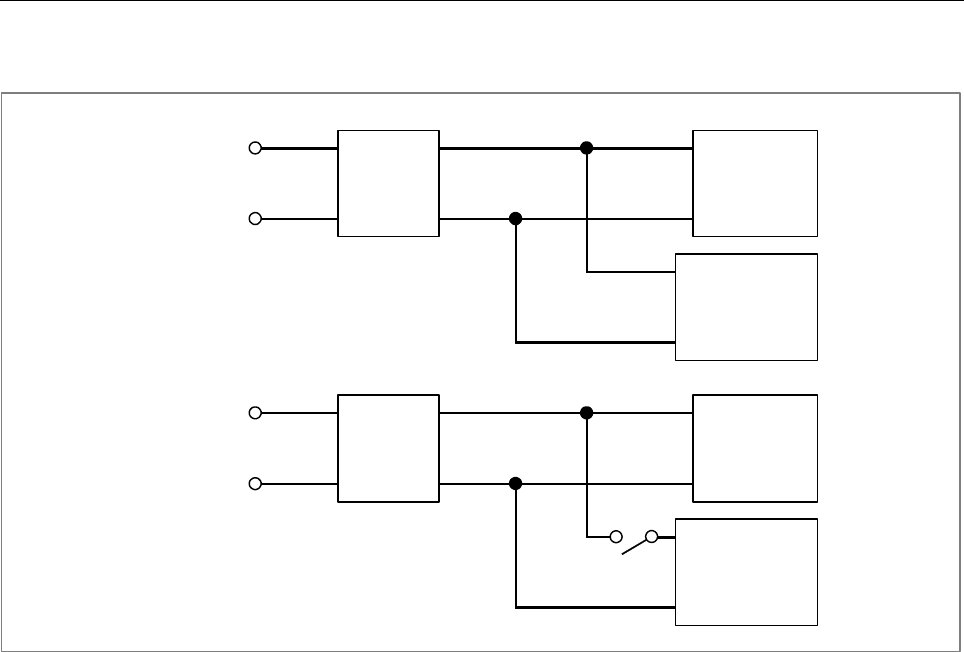

<2> Circuit examples that exceed the output voltage specifications

(21.6 V to 26.4 V) due to an abrupt load change

Example 1

C input

Example 2

Regulated

power supply

Device with

remarkable load

fluctuations

Device with large

rush current

CNC unit

Regulated

power supply

For a circuit configuration in <2>, connect another regulated power

supply to be specifically used for the device with remarkable load

fluctuations so that the CNC and other units are not affected.

Avoid the use of a configuration in <2> if possible, even in an

environment with small load fluctuations or rush current. When two

or more units are connected to the same power supply, the 24-VDC

power may not be turned on due to a failure in a unit other than the

CNC. If this happens, it takes much time to locate the failure

because the CNC cannot start and no alarm indication is provided.

When the CNC and other units are connected to the same power

supply because of limited space for the power magnetics cabinet or for

some other reason, careful consideration must be given to possible

rush currents and voltage fluctuations. In addition, to prevent power

supply noise from entering the CNC, a noise filter must be inserted

before the power to the CNC. (Recommended noise filter:

ZGB2203-01U manufactured by TDK)
