D.OPTICAL FIBER CABLE APPENDIX B-63943EN/02

- 460 -

(3) Procuring the cable

All the optical fiber cables mentioned above are special cable products

with optical connectors, which are designed, produced, and tested to

ensure the required system performance and reliability. It is

technically impossible for users to produce these cables or process

(cut and reconnect) them after purchase. Users are requested to

purchase cables of the necessary length from an appropriate supplier.

Cables are available from either FANUC or any of the

FANUC-approved manufacturers listed in Table D(d).

Table D(d) FANUC-approved cable manufacturers and cable model

numbers (retail)

<1> Internal cord type cable : A66L-6001-0023#LxRxxx

Manufacturer Model number Remark

Japan AMP, Co., Ltd. *-353373-*

Japan Aviation

Electronics Industry, Ltd.

PF-2HB209-**M-F-1 ** indicates the cable

length (m).

Hirose Electric Co., Ltd. H07-P22-F2VCFA-** ** indicates the cable

length (m).

<2> External Cable : A66L-6001-0026#LxRxxx

Manufacturer Model number Remark

Japan AMP, Co., Ltd. *-353199-*

Japan Aviation

Electronics Industry, Ltd.

CF-2HB208-**M-F-1 ** indicates the cable

length (m).

Hirose Electric Co., Ltd. H07-P22-F2NCFA-** ** indicates the cable

length (m).

Oki Electric Cable Co.,

Ltd.

OPC201HPXF-**MB ** indicates the cable

length (m).

(4) Handling precautions

<1> Protection during storage

When the electrical/optical conversion module mounted on the

printed circuit board and the optical fiber cable are not in use,

their mating surfaces must be protected with the lid and caps with

which they are supplied. If left uncovered, the mating surfaces

are likely to become dirty, possibly resulting in a poor cable

connection.

Electrical/optical conversion module

Lid

Optical fiber cable Optical fiber cable caps

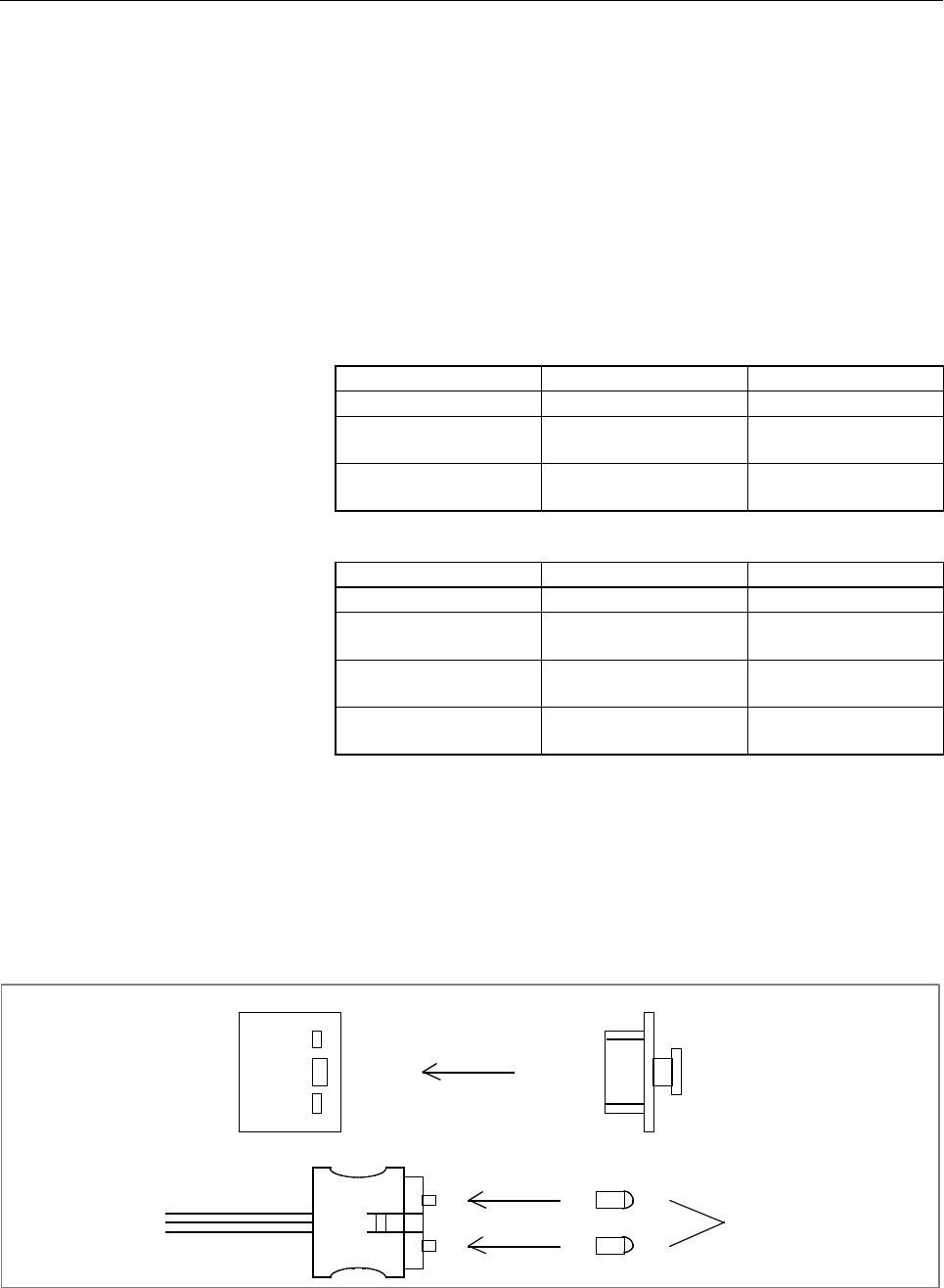

Fig. D (c) Protection of electrical/optical conversion module and optical fiber cable (when not in use)
