6.SPINDLE CONNECTION B-63943EN/02
- 110 -
1
2
3
4
15
17
19
10
12
14
16
SOUTA
*SOUTA
SINA
*SINA
SOUTB
*SOUTB
SINB
*SINB
0V
0V
0V
SINA
*SINA
SOUTA
*SOUTA
SINB
*SINB
SOUTB
*SOUTB
0V
0V
0V
Ground plate
Shield
JA41
Recommended cable connector:
PCR-E20FA (manufactured by Honda Tsushin Kogyo)
FCN-247J020-G/E (manufactured by Fujitsu)
52622-2011 (manufactured by Molex Japan)
Recommended cable specification: A02B-0236-K845
Recommended wire specification: A66L-0001-0284#10P (#28AWG
×
10 pairs)
Cable connection
JA48
3
4
1
2
15
17
19
10
12
14
16
NOTE
When this cable is installed close to other cables
such as a power line, a shielded wire must be
connected to the ground plate. When the CNC is
installed close to the serial spindle connector
panel, however, no connection to the ground plate
is necessary.

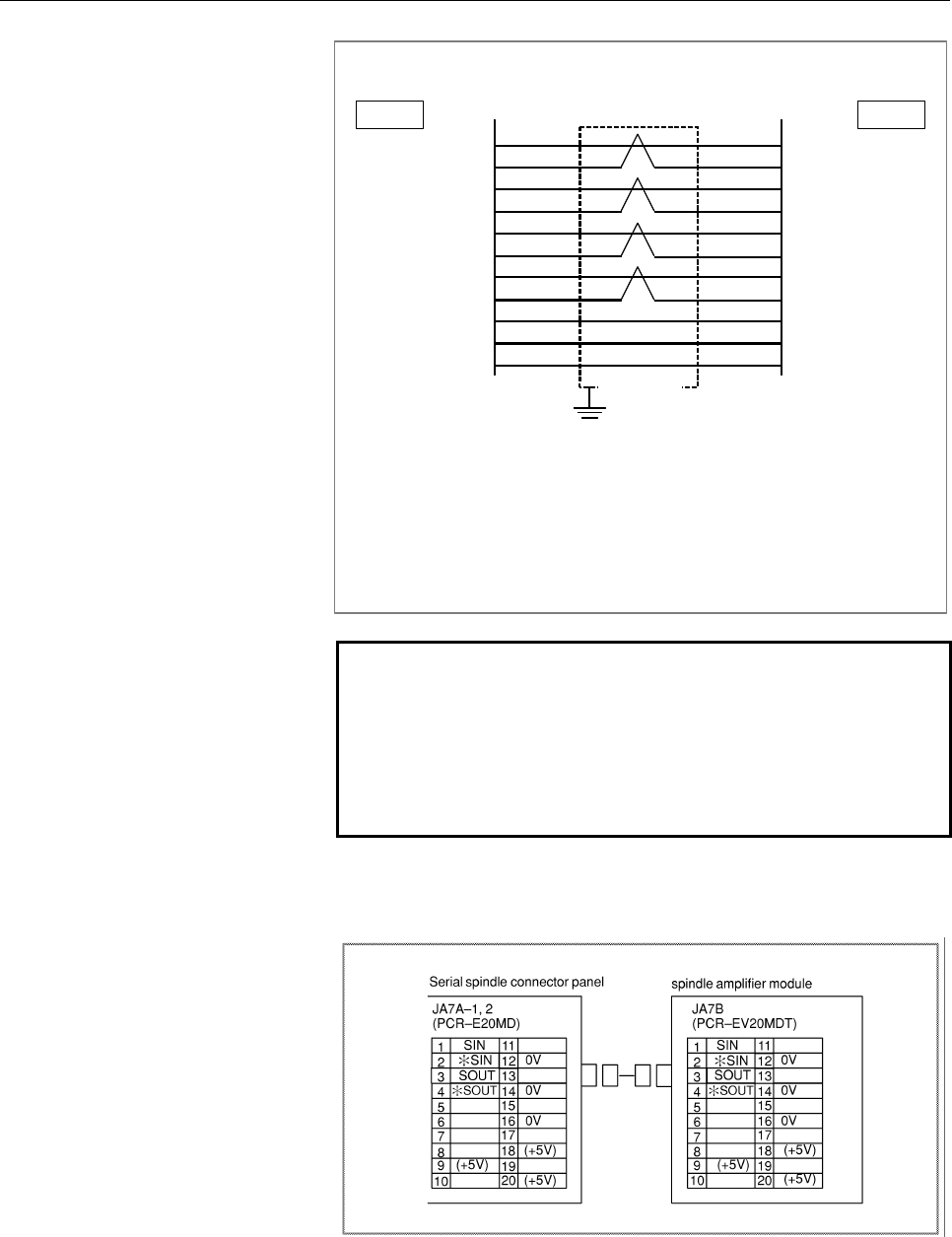

Cable connection between the serial spindle connector panel and a
spindle amplifier
(Interconnection cable 2)
