B-63943EN/02 8.CONNECTION TO FANUC I/O Link
- 253 -
NOTE
1 Both connectors CA64(IN) and CA64(OUT) are
same specification. And there is not indication of
(IN) and (OUT) on the PCB.
2 Power supply for the operator's panel must not turn
off at operation. If +24V is turned off at operation,
CNC happen to get system alarm(Communication
alarm between CNC and operator's panel). +24V
for operator's panel must be supplied before or
same time CNC power on.

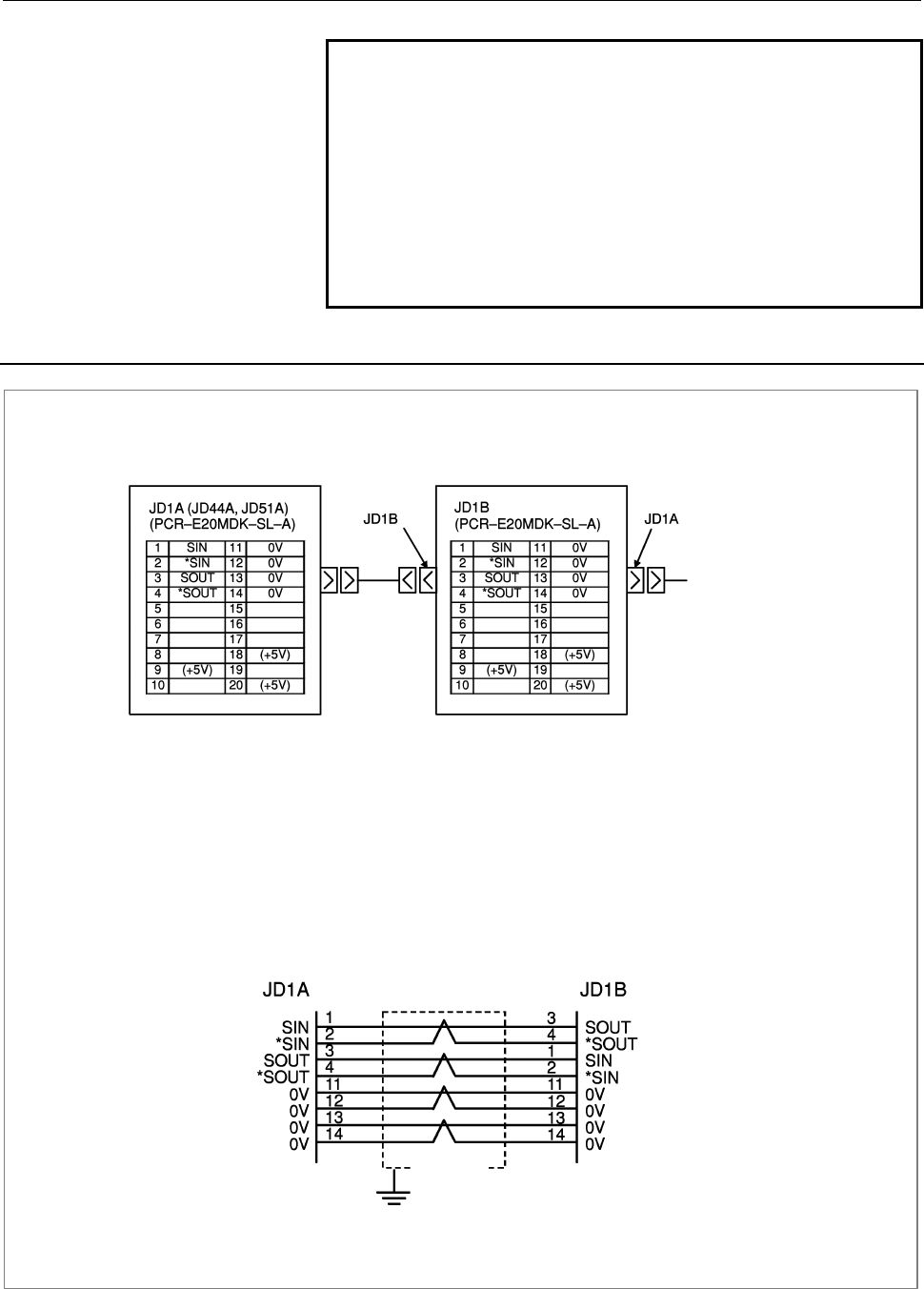

8.9.3.3 I/O link connection
Control unit preceding slave unit
Main panel
Recommended connector for cable of JD1A and JD1B on Main panel
When the depth of the operator's panel is 60mm min.
Hirose electric : FI30-20S (Connector), FI-20-CV7 (Case)
When the depth of the operator's panel is 80mm min.
Honda : PCR-E20FA (Connector), PCR-V20LA (Case)
Hirose electric : FI30-20S (Connector), FI-20-CV2 (Case)
Fujitsu : FCN-247J020-G/E (Connector), FCN-240C020-Y/S (Case)
Molex : 52622-2011 (Connector), 52624-2015 (Case)
+5V terminals are for an optical I/O Link adapter. They are not necessary when connecting with a me
t
al cable.
A
line for the +5V terminal is not required when the Optical I/O Link Adapter is not used.
Recommended wire material:
A
66L-0001-0284#10P (#AWG28
×
10 pairs)
Next slave unit
Shield
Ground
plate
