B-63943EN/02 6.SPINDLE CONNECTION
- 115 -
6.1.4 Connecting Seven or Eight Serial spindles
NOTE
When an optical cable is used for the connection
between the CNC and a spindle, the +5V signals
indicated in parentheses are used to feed power to
the optical adapter. Do not connect these signals
when an optical cable is not used. No connections
must be made to the pins with angle brackets (< >)
because they are reserved for expansions.
3
4
1
2
12
14
16
SIN
*SIN
SOUT
*SOUT
0V
0V
0V
SOUTA
*SOUTA
SINA
*SINA
0V
0V
0V
Ground plate
JA41L
Recommended cable connector:
PCR-E20FA (manufactured by Honda Tsushin Kogyo)
FCN-247J020-G/E (manufactured by Fujitsu)
52622-2011 (manufactured by Molex Japan)
Recommended cable specification: A66L-0001-0284#10P (#28AWG
×
10 pairs)

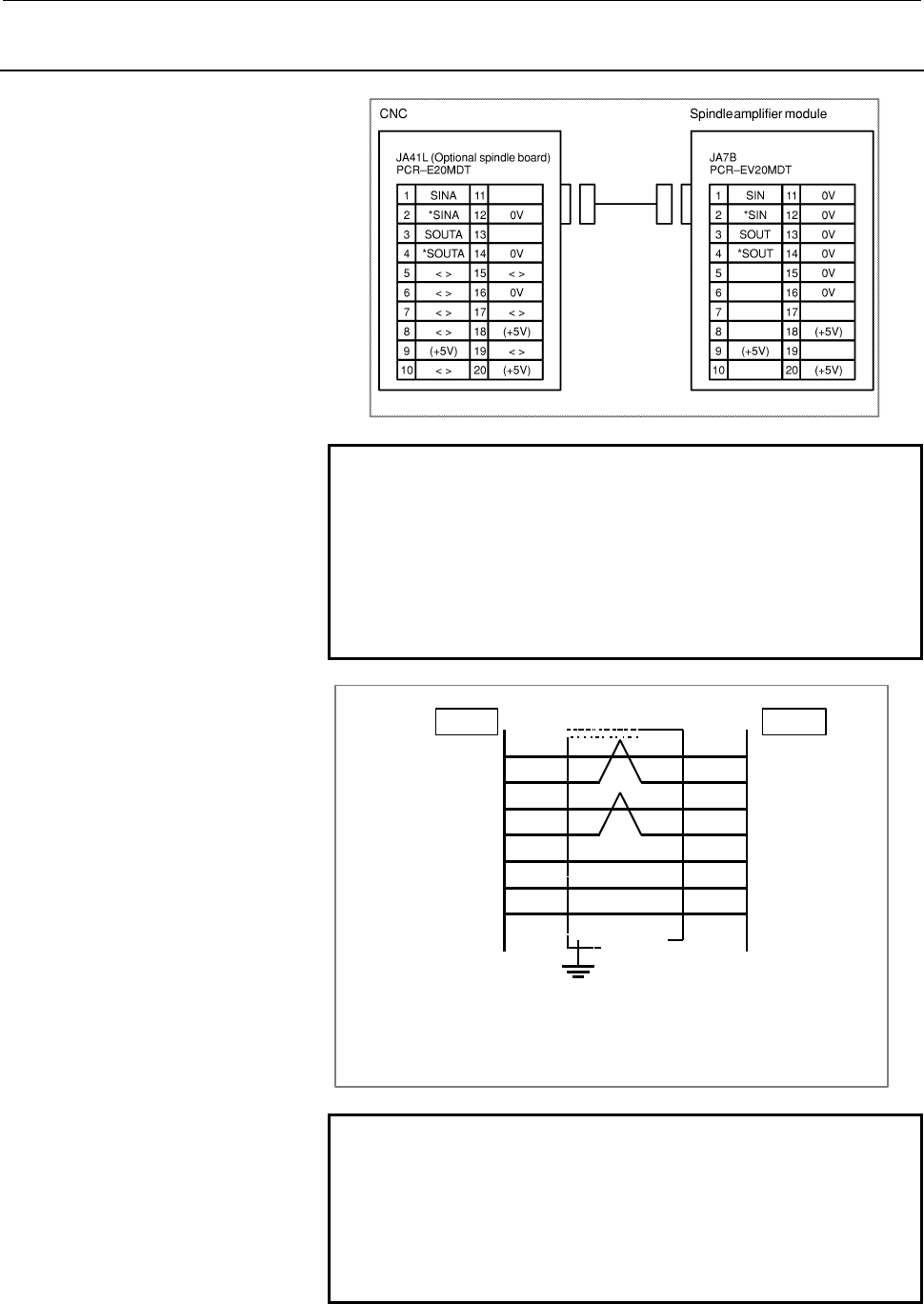

Cable connection
1
2
3
4
12
14
16
JA7B
Shield
NOTE
When this cable is installed close to other cables
such as a power line, a shielded wire must be
connected to the ground plate. When the CNC is
installed close to the spindle amplifier module,
however, no connection to the ground plate is
necessary.
