SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 137

Programming manual

Page of 612

/ 612

B–61803E–1/10

6. FUNCTIONS OF THE MACRO

EXECUTOR

PROGRAMMING

127

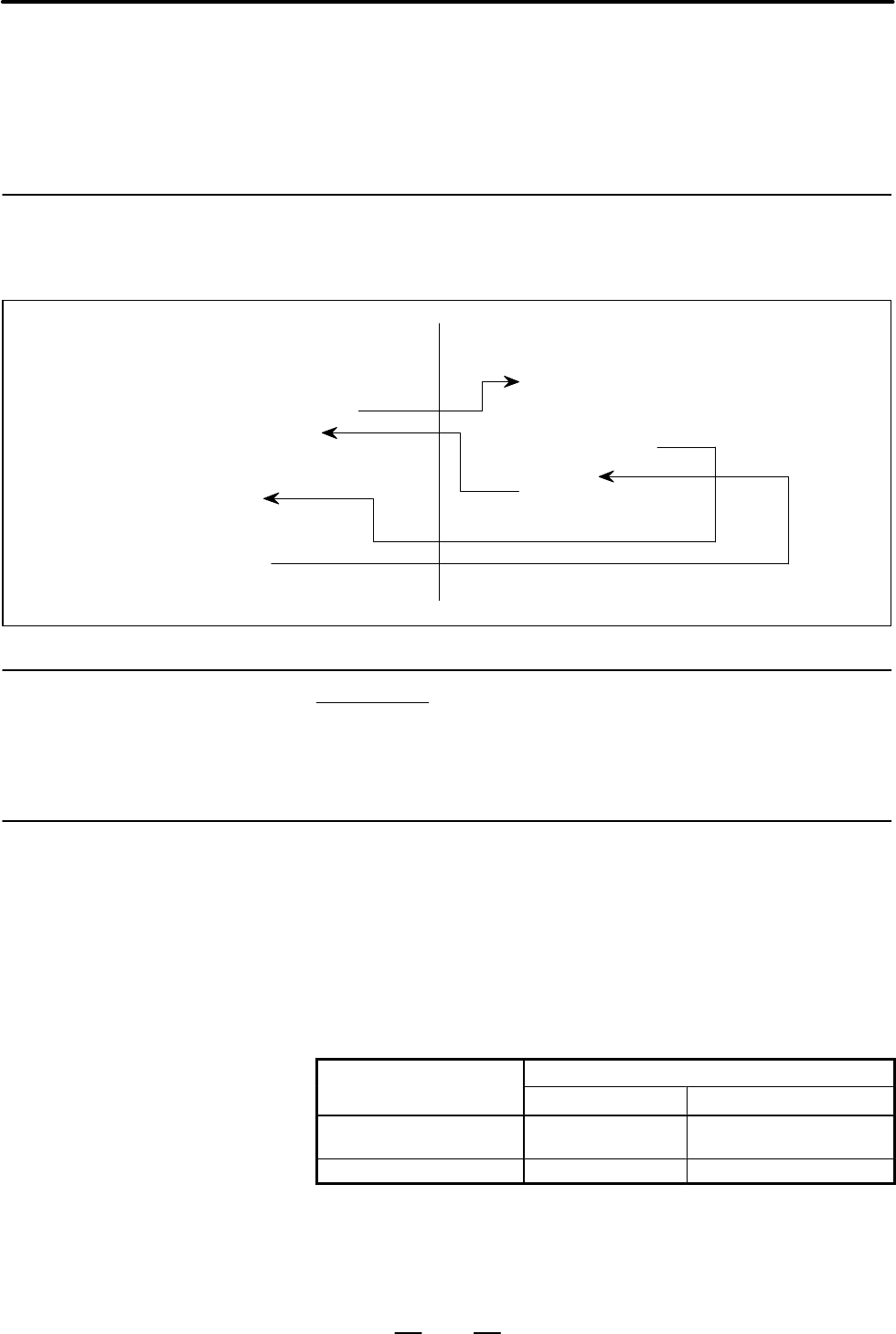

Using the M code specified by compilation parameter, a P-CODE

program (execution macro program) called by a G, M, or T code from a

user program can call another user program as a subprogram.

(User program)

O0001;

G100 X10. Z20. ;

M02

O1000;

M99;

(Execution macro program)

O9010;

Mmm P1000;

M99;

Mmm Ppppp;

mm : M code specified in compilation parameter No. 9033

pppp : Number of the user program to be called

(A variable or expression can be specified.)

(1) Program call from a user program which was called by an execution

macro

Other user program in the program editing memory can be called from

a user program, which was called by an execution macro program,

using M98, G65 and G66. However, other user program cannot be

called by using G, M, T, or special code, etc.

Also an execution macro program can be called from a user program

which was called by an execution macro.

Calling method

Program to be called

M98, G65, G66 M/S/T/Special code/etc

User program in program edit-

ing memory

Yes No

Execution macro program No Yes

(2) Calling from an execution macro

A user program can be called from an execution macro which was

called by a user program. However, user program cannot be called

doubly from an execution macro program.

6.29

FUNCTION FOR

CALLING A USER

PROGRAM BY AN

EXECUTION MACRO

6.29.1

Function

6.29.2

Calling Format

6.29.3

Multiple Calls
