1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 66

Programming manual
6. FUNCTIONS OF THE MACRO
EXECUTOR
B–61803E–1/10
PROGRAMMING
56
As for the graphic coordinates system, too, the horizontal direction is the
X coordinate and the vertical direction is the Y coordinate. Specify the
X coordinates from -160 to 159(-320 to 319) from left to right and the Y
coordinates from -112 to 112(-200 to 199) from bottom to top.(Value in
parenthesis is for high resolution mode.) Any command of display
outreaching the above range will be ignored. 1 unit is 1 dot.
The center of the screen will be (X, Y) = (0, 0).
X
Y
+159
(319)
–160
(–320)
–112(–200)
Screen
+112(199)
0.0
Value in parenthesis is for high
resolution mode.

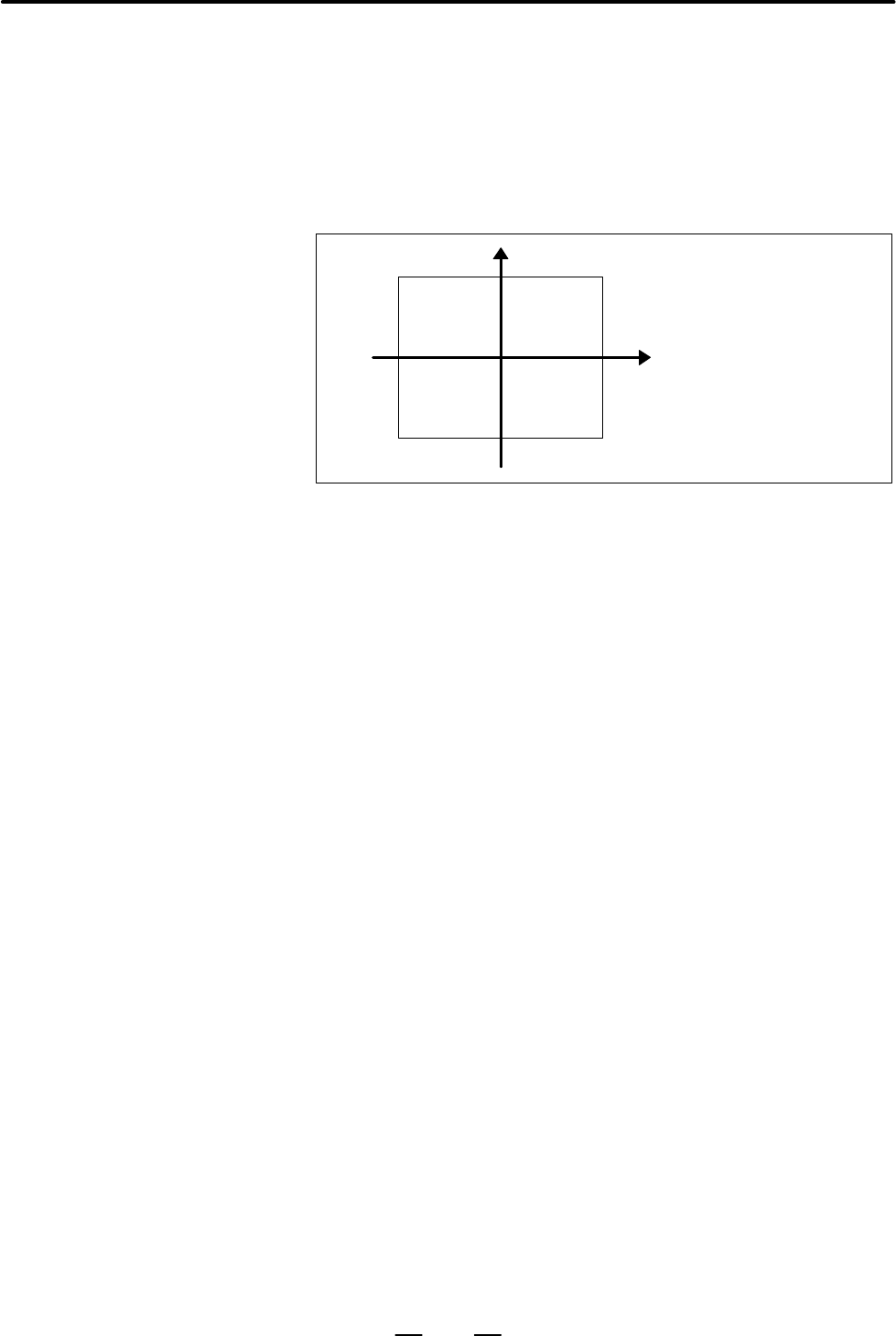

Fig.6.1.1(b) Graphic Coordinate System
(a) Standard mode
Use the same coordinate system as that of the series 0 standard
seven soft keys.
Center of screen
(X coordinates, Y coordinates) = (0, 0)
Left and right of screen
(X coordinates) = (–160 – 159)
Top and bottom of screen
(Y coordinates) = (–112 – 112)
(b) High resolution mode
Use the high resolution coordinate system.
Center of screen
(X coordinates, Y coordinates) = (0, 0)
Left and right of screen
(X coordinates) = (–320 – 319)
Top and bottom of screen
(Y coordinates) = (–200 – 199)
Graphic display macro prepared in the series 0 standard seven soft keys
can almost be used unchanged in standard mode. The high resolution
graphic mode allows highly accurate display that was not possible in
standard mode.
(2) Display unit with twelve soft keys
(a) Character coordinates line, graphic coordinates line
Character coodinate system instructs in the range of 0-79 for the
left and righ directions (X coodinates), and 0-24 for the up and
down directions (Y coordinates). The 20th line is used for input
and the 21st line is used by the system for status display and can
not be satisfied. The space for the software key also cannot be
satisfied.
