1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 464

Programming manual
G. DIFFERENCES BETWEEN
Series 0 AND Series 16/18/0i
(CONVERSION FROM FS0 TO FS16/18/0i)
B–61803E–1/10
APPENDIX
454

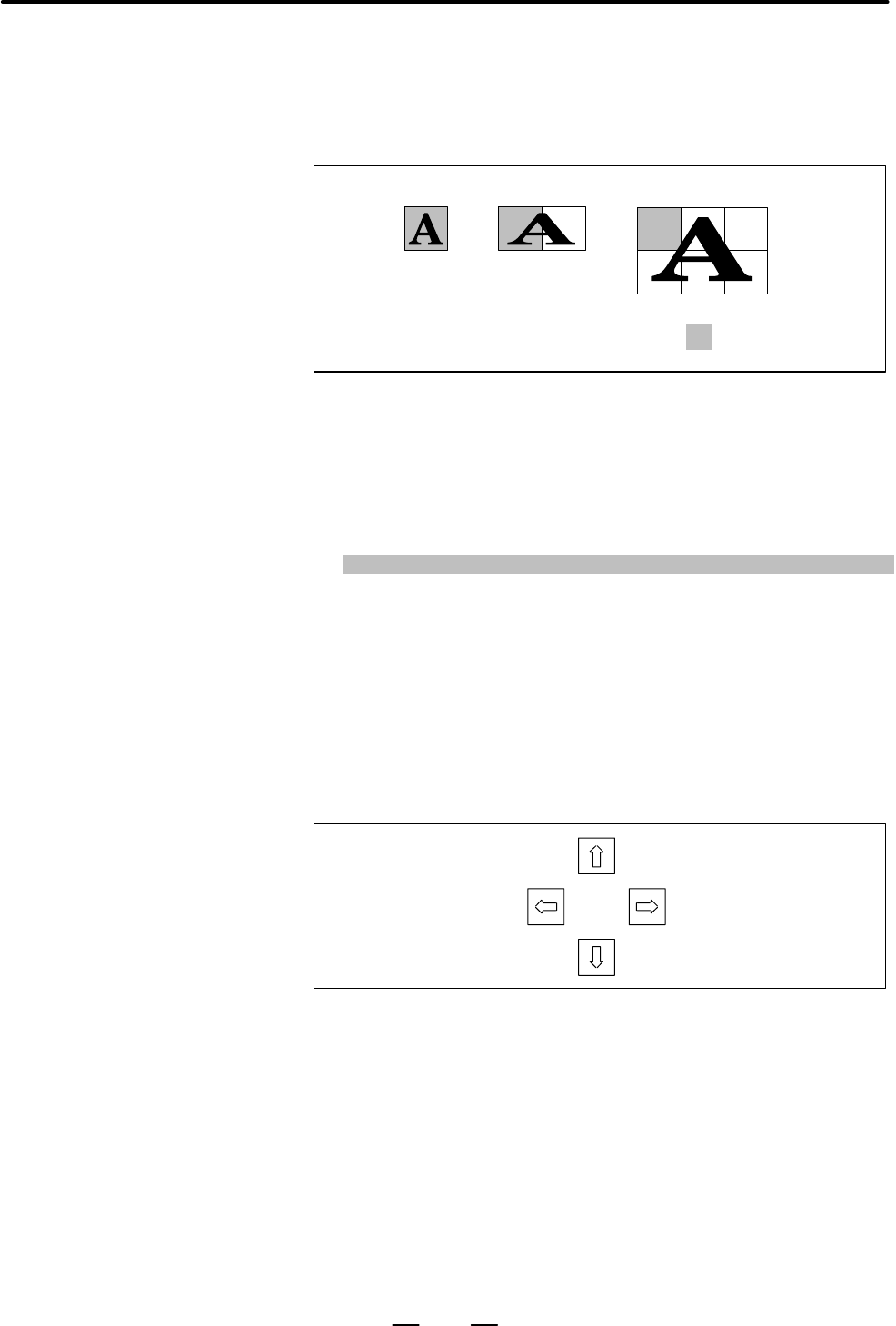

Double size can be specified for character size specification A (only for
alphanumeric characters).
⇒ An alphanumeric character is displayed having the same size as a
kanji character.
(1) A1 (2) A2 (3) A3
: Display start position
(1) Setting a negative value for the display color reverses the display.
G240 Pp;
P : 0=Black
1=Red 2=Green 3=Yellow 4=Blue 5=Purple 6=Blue-green 7=White
1=Red 2=Green 3=Yellow 4=Blue 5=Purple 6=Blue-green 7=White
(2) Blinking display can be specified in address L.
G240 Pp Ll; L : 0 = Does not blink 1 = Blinks
⇒ The display blinks under the control of the hardware. The program
does not have to contain a loop. Once blinking is specified for the
display, it keeps blinking.
(1) Key numbers are added for the cursor keys.
“4”
“19”
“3”
“18”
Cursor keys
(2) Key number 9 cannot be used because there is not a START key on
the MDI.
G.1
CHARACTER
DISPLAY (G243)
G.2
DISPLAY COLOR
SPECIFICATION
(G240)
G.3
KEY INPUT
VARIABLE (#8501)
