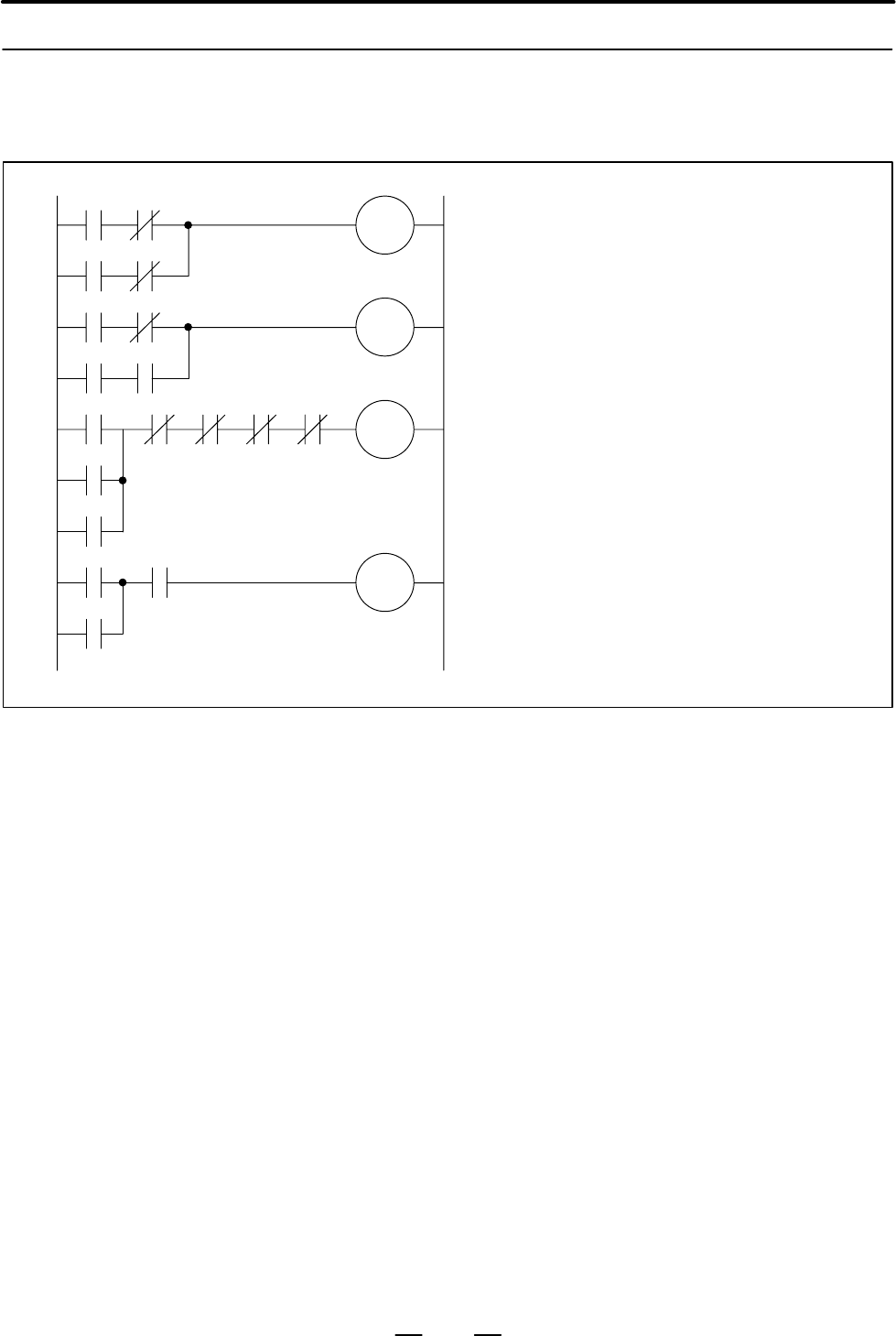

A. MACRO PROGRAM EXAMPLE
APPENDIX
191
JOG. M
ST
PN1
PN2
AUTO. L
PN1N
HND. MHOME. M
MDI. M
MC. A
MC. APN1M
MC. APN2N
MC. APN2M
AUTO. M
MC. A
AUTO. L
AUTO. LST. M
MC. S
MC. A : AUTO mode selecting signal from MACRO
MC. S : Cycle start signal from MACRO
PN1M : External program No. from MACRO
PN1N : External program No. from the machine
PN1 : External program No. search output signal to NC
AUTO. M : AUTO mode selecting signal from the operator’s
panel
MDI. M : MDI mode selecting signal from the operator’s panel
JOG. M : JOG mode selecting signal from the operator’s
panel
HOME. M : ZRN mode selecting signal from the operator’s panel
HND. M : HND mode selecting signal from the operator’s panel
AUTO. L : AUTO mode selecting signal(hold)
ST : Cycle start signal to NC
ST. M : Cycle start signal from the operator’s panel
