1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 20

Programming manual
2. MACRO COMPILER AND MACRO
EXECETOR
B–61803E–1/10
PROGRAMMING
10

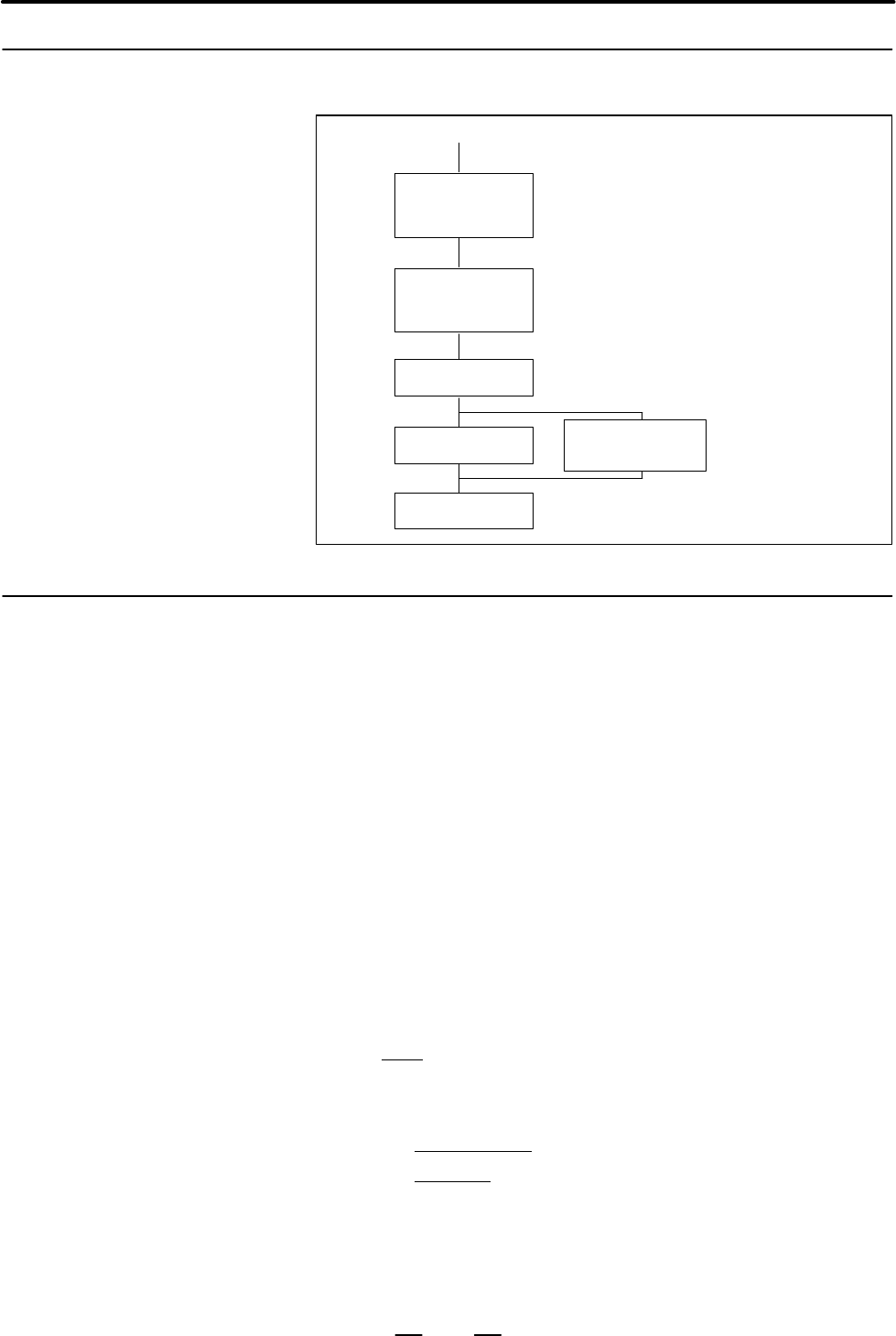

(START)
Source program
preparation
Test compile
* If a compiling error occurs,
correct a source program and
re-start compiling.
Compile
parameter setting
ROM write
Check performance
Loading in RAM
module
(1) Equipment connection
Connect FA writer to CN2 or CN3 of SYSTEM P series.
Generally, connect FANUC PPR to CN1.
(2) Turning on power of SYSTEM P series
Turn SYSTEM P series power ON.
(3) Loading system
1. Load the FAPT MACRO compiler system disk to either drive
unit.
2. Keep pressing the ”LOAD” key on the left upper side of the
keyboard for a few seconds.
3. When the menu is displayed, loading operation is completed.
(4) Source program input and correction
For detailed operation method, refer to APPENDIX B.
1. ”R2” (Display and edit)
2. No.=
”1” (Custom MACRO program display and edit) <NL>
(a) Input from keyboard
D ” <FO> = OFF, <F1> = OFF, <F2> = OFF”
D PROGRAM =
”IN” <NL>
D INPUT =
”Oxxxx” <NL>,”
Date <NL> , , , ,
only ”<NL>” at the last
(b) Reading from floppy disk
D ”<F0> = OFF, <F1> = OFF, <F2> = OFF”
2.1.3
Compiling Procedure
(Main Flow)
2.1.4
Compiling Procedure
Using System P Series
(Details)
Previous page
Next page
