AC Spindle Motor Alpha Series Parameter manual Page 194

Parameter manual
B–65160E/02
3. EXPLANATION OF
PARAMETERS
FANUC AC SPINDLE MOTOR a series
185
Setting data
Details
Pattern 1 Pattern 2
Power is not limited. 0 0
A. Power is limited on acceleration/deceleration
only.
1 4
B. Power is not limited on acceleration/
deceleration and it is limited on normal
rotation.
2 5
C. Power is limited over all operations. 3 6

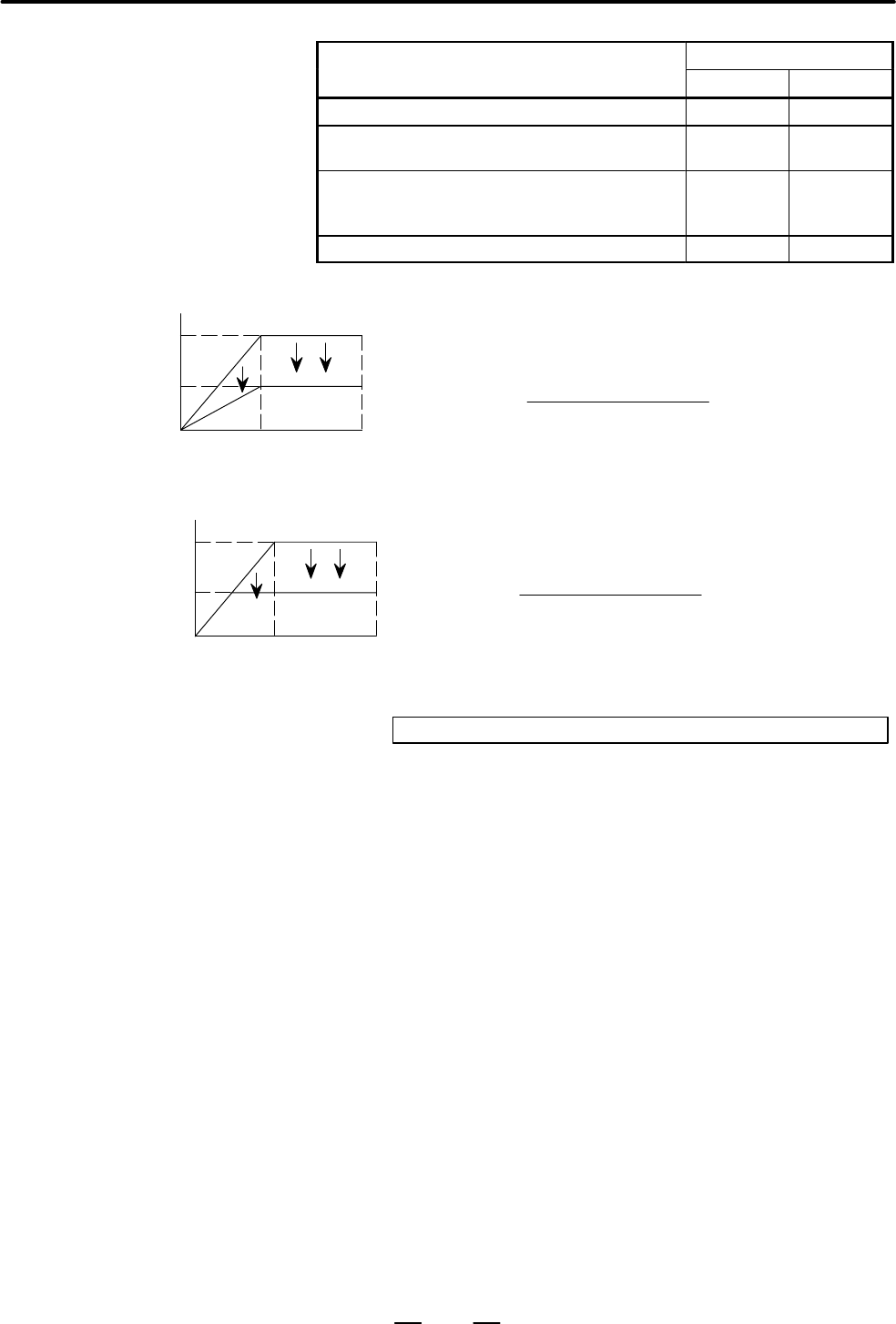

[Power limit pattern 1] Setting data = 1, 2, 3
Power
Pm
0
Nb Nm
Speed
Value written
in a catalog
100%
Pm
Setting value of
parametr (No. 4029)
100
Pout =
0
Pout
[Power limit pattern 2] Setting data = 4, 5, 6
Pm
Nb Nm
0
0
Pm
Setting value of
parametr (No. 4029)
100
Pout =
Speed
Power
Value written
in a catalog
100%
Pout
16i/1615 15i0
Power limit value
6529 3029 3029 4029
6669 3169
Data unit : 1%
Data range : 0 to 100 (0 to 100%)
Standard setting : 100
This data is used to set the value limited when the maximum power
(allowable overload capacity) is 100%.
This setting value is valid when power is limited by setting the data on
parameter No.4028.
Power limit value = Maximum power (Setting data)%
