12. DIRECT OPERATION FOR
MACHINING PROGRAMS
CREATED CONVERSATIONALLY
OPERATION
133
(3) Tailstock barrier data when the optional chuck/tailstock barrier
function is selected
In the same way as for chuck barrier data, the following soft keys are
displayed when the cursor is positioned to TAILSTOCK NO. or
TAILSTOCK BAR on the setting screen, before execution:
RETURN BARRI.
(TAIL–
S)
TOOL-
ING
<
By pressing [BARRI. TAILSTOCK], tailstock barrier data is displayed
in the window.
The tailstock barrier data is identical to that for the same option on the NC
side.

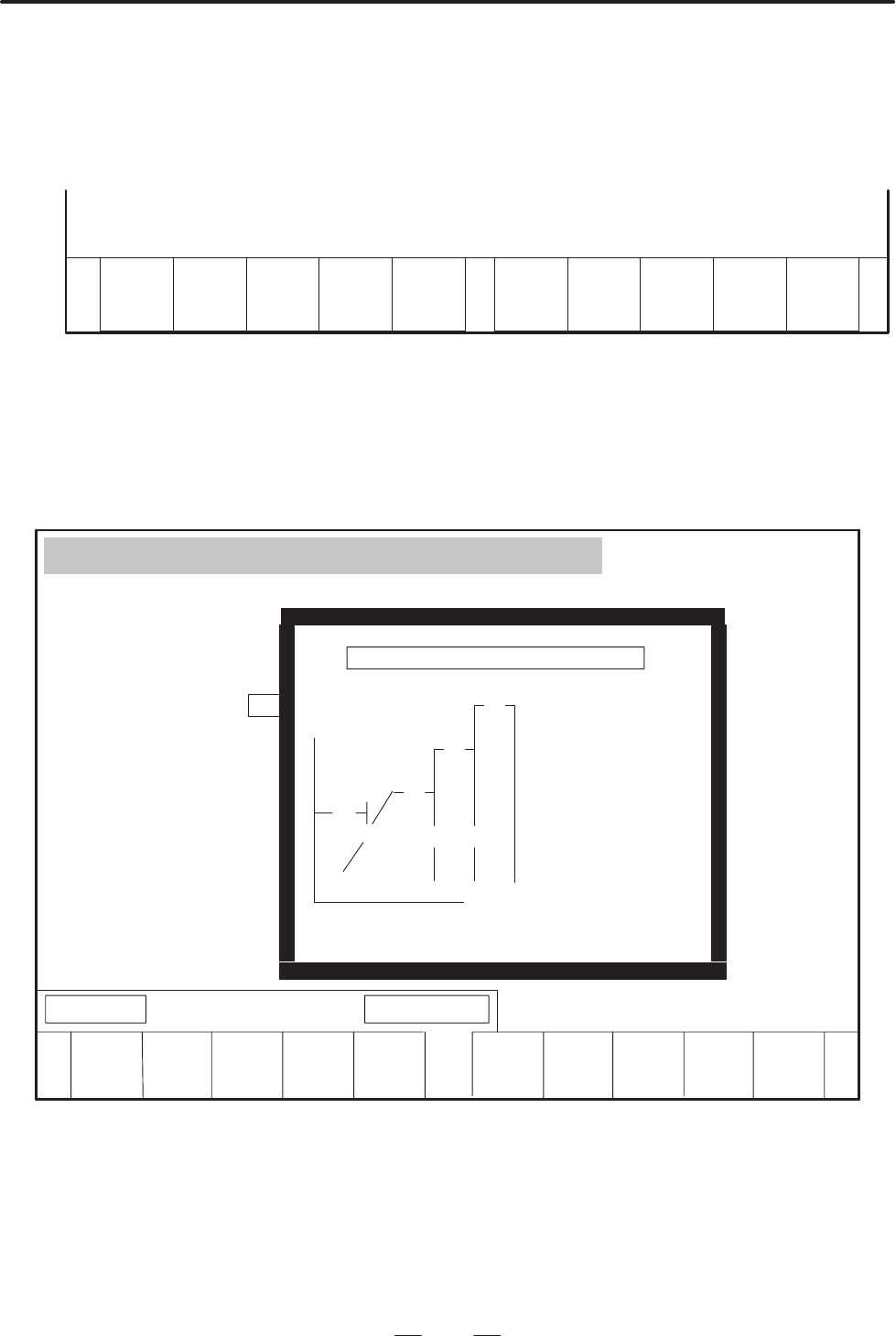

Example of tailstock barrier data window for a one–path lathe:
DIRECT OPERATION OF CAP PRG *** PRE–MACHINING *** [CAP.]
BASIS T–CODE T=
W–SHIFT (INC) SZ=
END REMOVAL CZ=
CHUCK ID NO. C=
CHUCK BARRIER X=
Z=–1
TAILSTOCK NO. T=
TAILSTOCK BAR Z=
TOOL–CHG POS X=2
Z=2
L L = 30.000
D = 60.000
L1 = 20.000
D1 = 40.000
L2 = 0.000
D2 = 20.000
D3 = 16.000
TZ = 0.500
L1
D3
L2
TZ
* D2 D1 D
PRES.POS (ABSOLUTE)
X 80.000 Z 120.000
<
RETURN
BARRIER (TAILSTOCK)
Z
By entering a tailstock number on the setting screen before execution,
tailstock barrier data is automatically determined and displayed in the
window.
