FANUC SUPER CAP T / CAP II T Operators manual Page 72

Operators manual

Page of 606

/ 606

B–62444E–1/04

6. CREATING MACHINING PROGRAMS

OPERATION

The selection of the workpiece figure, for either blank rods or blank

plates, determines the subordinate input data items for blank dimensions.

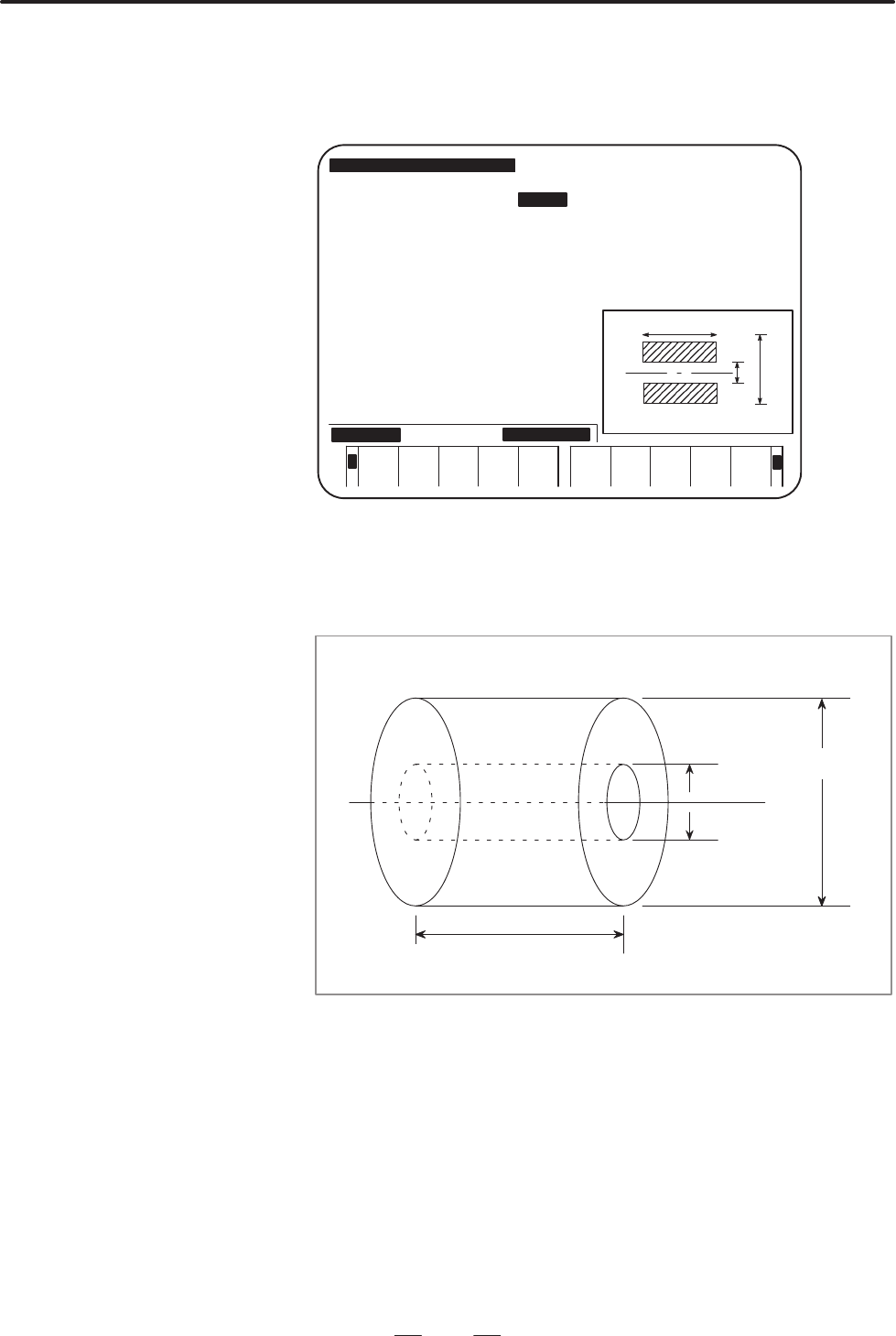

(1) When BAR is selected as the workpiece figure

PREP A NEW PROCESS PROGRAM [CAP.:HEAD–L]

NO. =0120 NAME = MSTU

INITAL SET MATERIAL SHAPE OUT–DIA IN–DIA WORK–LNG MAX–S COOLANT

FC25 BAR 100.000 145.000 2000 ON

FINISHX FINISHZE–REMOVLPROD–LNG

0.200 0.100 2.000 150.000

TOOL–D<

DELETE

PRO-

GRAM

END

WINDOW

ON/OFF

PROCES

EDIT

MCHN–C DETAIL

DATA

PLOTINSERT

OUTSIDE DIA

OUT–DIA (maximum diameter) : Outer diameter of the blank

IN–DIA (minimum diameter) : Inner diameter of the blank

WORK–LNG : Length of the blank

Outer diameter

of the blank (D)

Inner diameter

of the blank (H)

Length of the blank (L)
