FANUC SUPER CAP T / CAP II T Operators manual Page 276

Operators manual

Page of 606

/ 606

B–62444E–1/04

1. MACHINING PROGRAMS FOR

2–AXES (X AND Z AXIS) LATHES

TYPES OF MACHINING

PROGRAMS

265

(d) When the immediately preceding figure block specifies a pending

arc, and contact point determination is specified

It is assumed that the radius of the arc and the coordinates (X,Z)

of the arc center have already been entered.

i) When an angle (J) is entered, or

ii) When the X component (I) and Z component (K) of an angle

are entered

 The contact point selection request screen appears. Press

[TANGNT 1] or [TANGNT 2], then press [INSERT] (or

[ALTER] or [ALTER FIGURE] to change the figure).

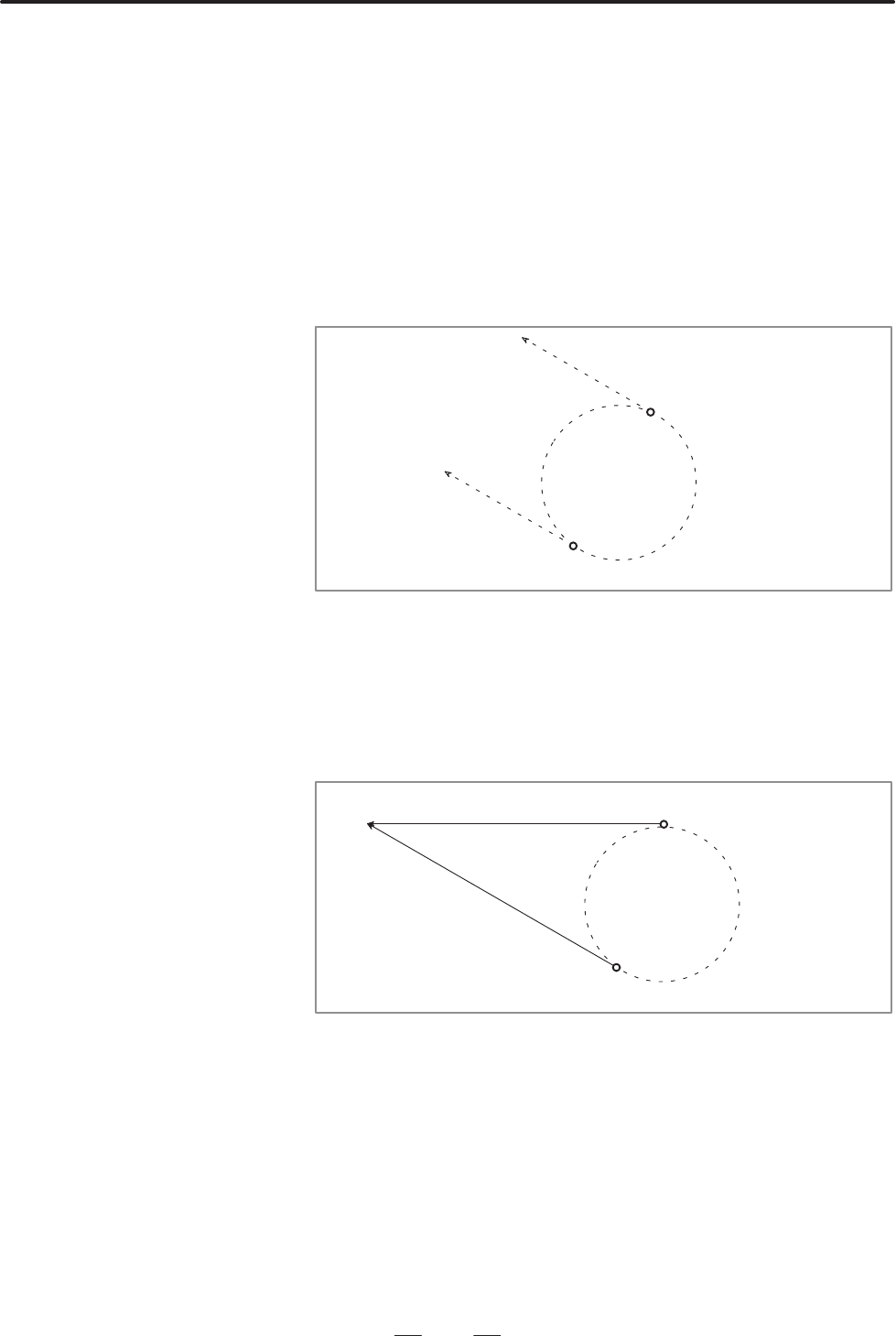

The slanted line is pending.

Contact point

iii) When the X coordinate (X) and Z coordinate (Z) of the end

point of a slanted line are entered

 The contact point selection request screen appears. Press

[TANGNT 1] or [TANGNT 2], then press [INSERT] (or

[ALTER] or [ALTER FIGURE] to change the figure).

The end point of the slanted line is determined.

Contact point

iv) When an angle (J) and the X coordinate (X) or Z coordinate

(Z) of an end point are entered, or

v) When the X component (I) and Z component (K) of an angle,

and the X coordinate (X) or Z coordinate (Z) of an end point

are entered
