FANUC SUPER CAP T / CAP II T Operators manual Page 409

Operators manual
2. MACHINING PROGRAMS FOR
LATHES WITH C–AXIS
B–62444E–1/04
TYPES OF MACHINING
PROGRAMS
398

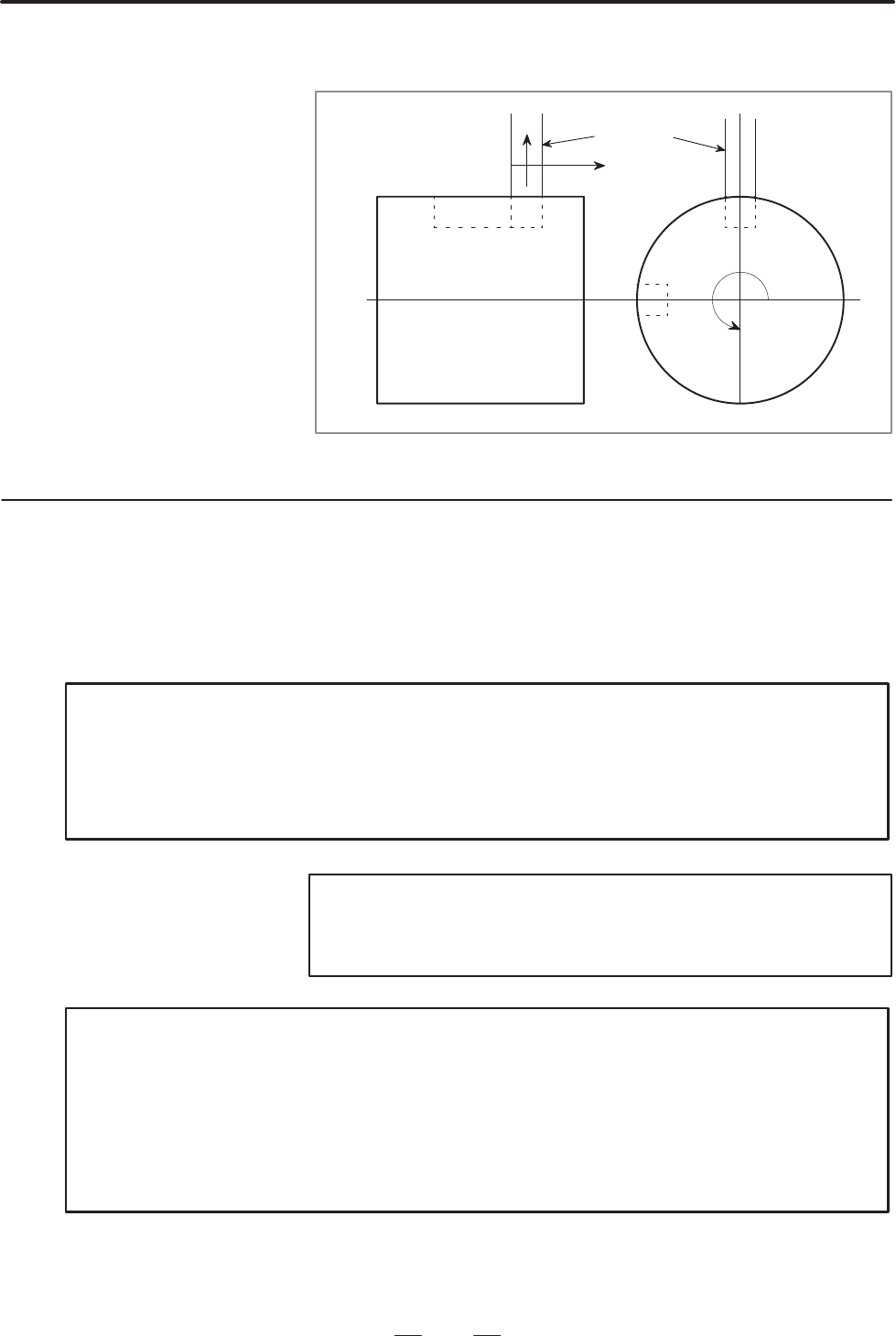

C
Front of a blank
End mill
Blank
X
C
When the cursor is moved to the end of program, a new process is
automatically created, and the machining type menu is displayed in the
soft key field.
To select C–axis side–face grooving, press the [C–GROV] soft key, then
the [CROSS] soft key.
PROC(01) AREA HEAD MIL–DIA TOOL–NO REV/MIN FEED.Z,C T–CODE
C–GRV(R) CROSS HEAD–L 10.000 752 2000 1200 0101
FEED.X SHAPE BEVEL–AM
1500 REGULAR
NOTE
When data other than 0 is specified for BEVEL–AM, the
following chamfering process is automatically created.
PROC(01) AREA HEAD MIL–DIA TOOL–NO REV/MIN FEED.Z,C T–CODE
C–GRV(R) CROSS HEAD–L 10.000 752 2000 1200 0101
FEED.X SHAPE BEVEL–AM
1500 REGULAR 1.000
PROC(01) AREA HEAD MIL–DIA TOOL–NO REV/MIN FEED/MIN T–CODE
C–GRV(C) CROSS HEAD–L 10.000 851 2000 1200 0909
SHAPE BEVEL–AM
REGULAR 1.000
2.4
C–AXIS GROOVING
FOR SIDE FACES
2.4.1
Machining Type
Selection
