FANUC SUPER CAP T / CAP II T Operators manual Page 454

Operators manual
B–62444E–1/04
3. CREATING MACHINING PROGRAMS
FOR A LATHE HAVING THE Y–AXIS
MACHINING FUNCTION
TYPES OF MACHINING
PROGRAMS
443

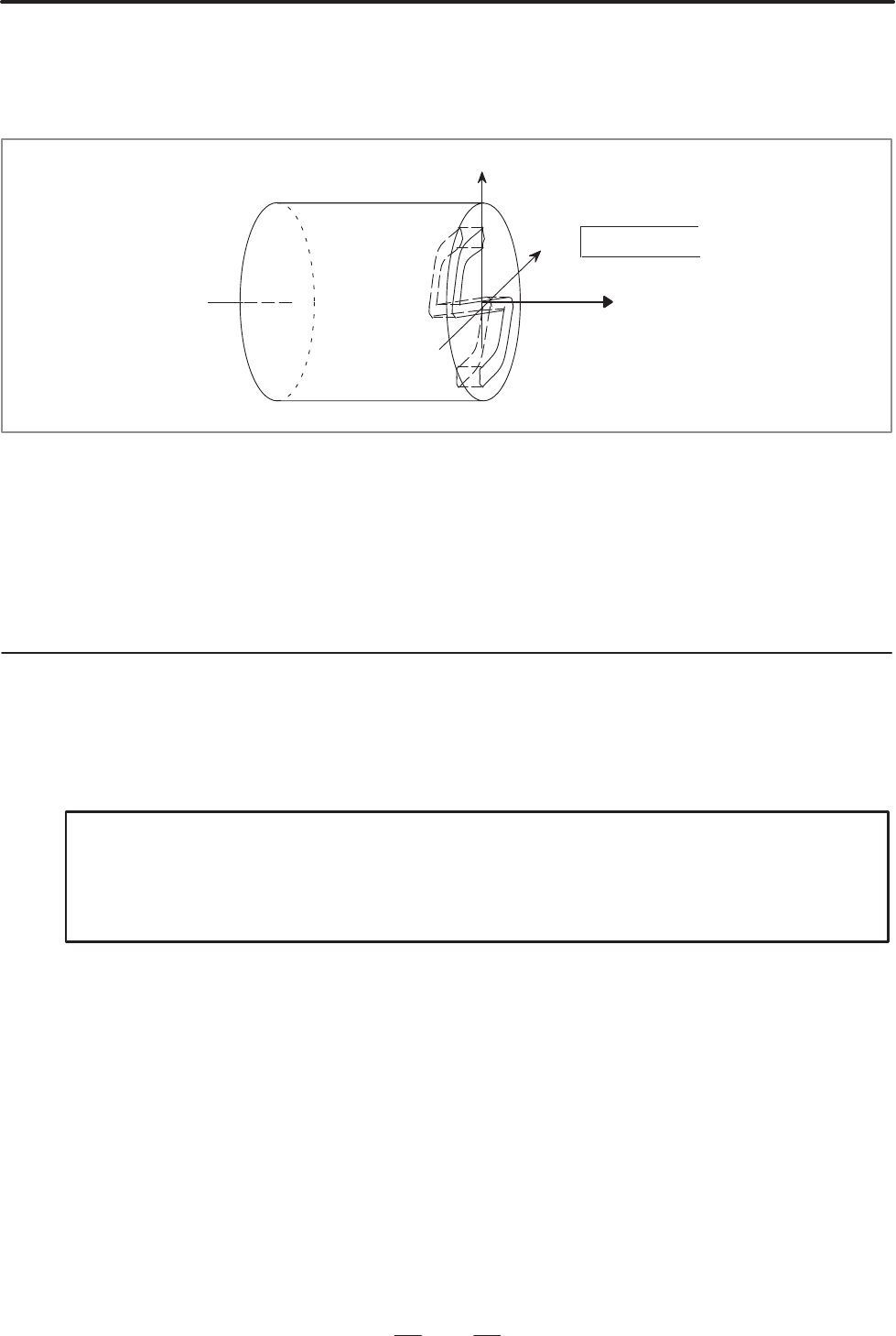

Y
X
Workpiece
Note) This figure shows the axes of the
workpiece coordinate system.
Z
End mill
In Y–axis milling (on the end face), an end mill cuts an end face of a
workpiece by moving only once along the contour determined by the
specified figure data. Specify a desired path along which the cutting tool
is to be moved.
Machining in bites is not performed along the Z–axis.
When the cursor is moved to the end of a program, a new process is
automatically created and the machining mode soft keys are displayed.
To select Y–axis end–face milling, press the [Y–MILLING] soft key,
then the [FACE] soft key.
PROC (01) AREA HEAD DEPTH MIL–DIA TOOL–NO REV/MIN T–CODE
Y–MIL FACING HEAD–L 5.000 5.000 751 1200 0101
FEED.X,Y FEED.Z ESCAPE–SZ SHIFT–DR
500 300 600 CENTER
3.3
Y–AXIS MILLING
(ON THE END FACE)
3.3.1
Machining Type
Selection
Previous page
Next page
