FANUC SUPER CAP T / CAP II T Operators manual Page 258

Operators manual
B–62444E–1/04
1. MACHINING PROGRAMS FOR
2–AXES (X AND Z AXIS) LATHES
TYPES OF MACHINING
PROGRAMS
247

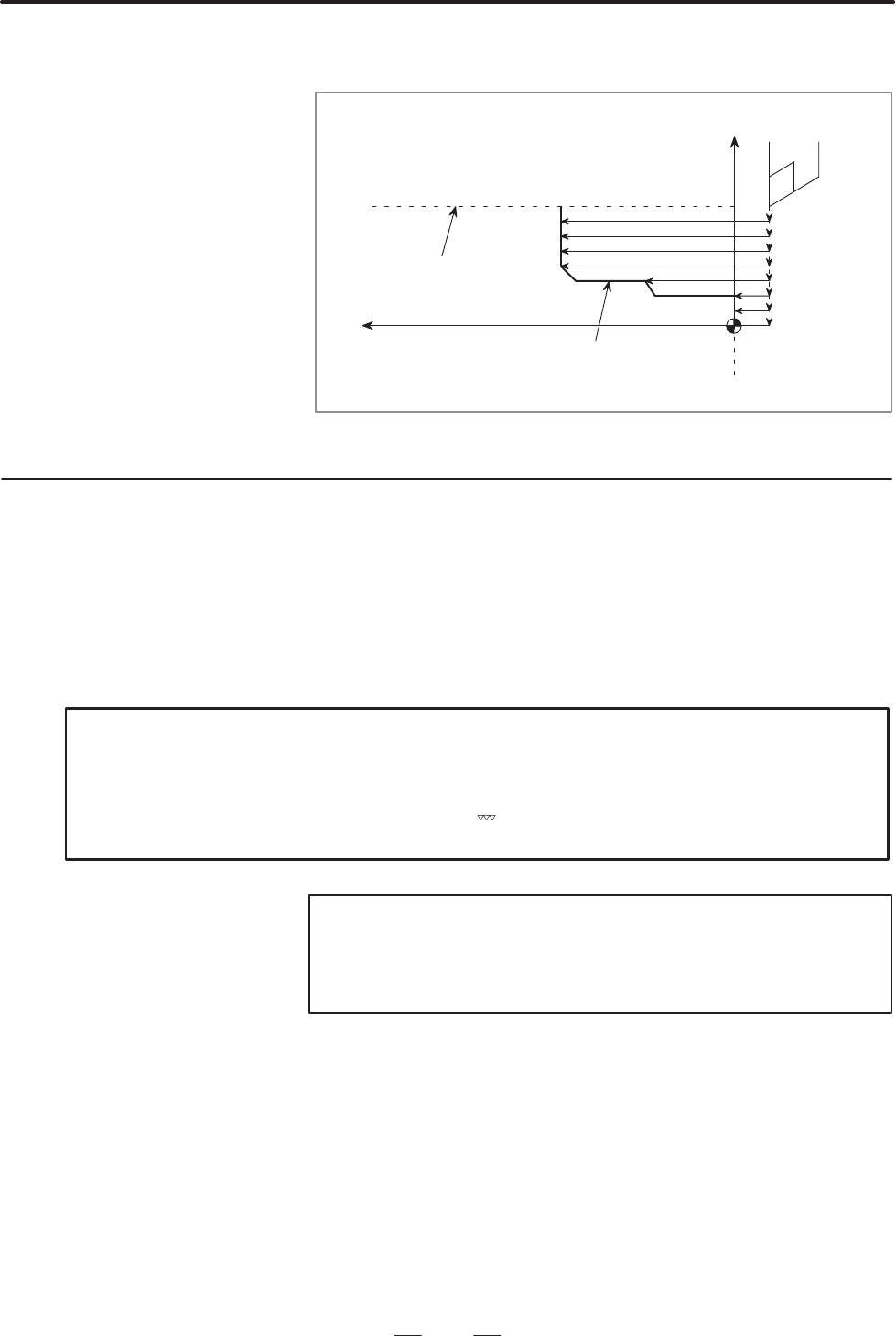

Round–bar materials are machined by bar machining.
Material figure
Product figure
+Z
+X
When the cursor is moved to the end of the program, a new process is
automatically created, and the machining type menu is displayed on the
soft key field.
Pressing the [BAR] soft key selects bar machining.
The process data varies according to the machining area (See the
following items.)
(1) For the outer surface, inner surface, and end face
PROC (01) AREA HEAD TOOL–NO CUT–SPD FEED/REV CUT–DPTH T–CODE
BAR (R) OUTER END HEAD–L 102 80 0.25 2.000 0101
PROC (01) AREA HEAD ROUGHNES TOOL–NO CUT–SPD FEED/REV T–CODE
BAR (F) OUTER END HEAD–L 5 102 80 0.25 0101
NOTE
One of “outer surface”, “inner surface”, and “end face” is
displayed as area data according to the specified machining
area.
1.1
BAR MACHINING
1.1.1
Machining Type
Selection
