B–62444E–1/04

1. MACHINING PROGRAMS FOR

2–AXES (X AND Z AXIS) LATHES

TYPES OF MACHINING

PROGRAMS

263

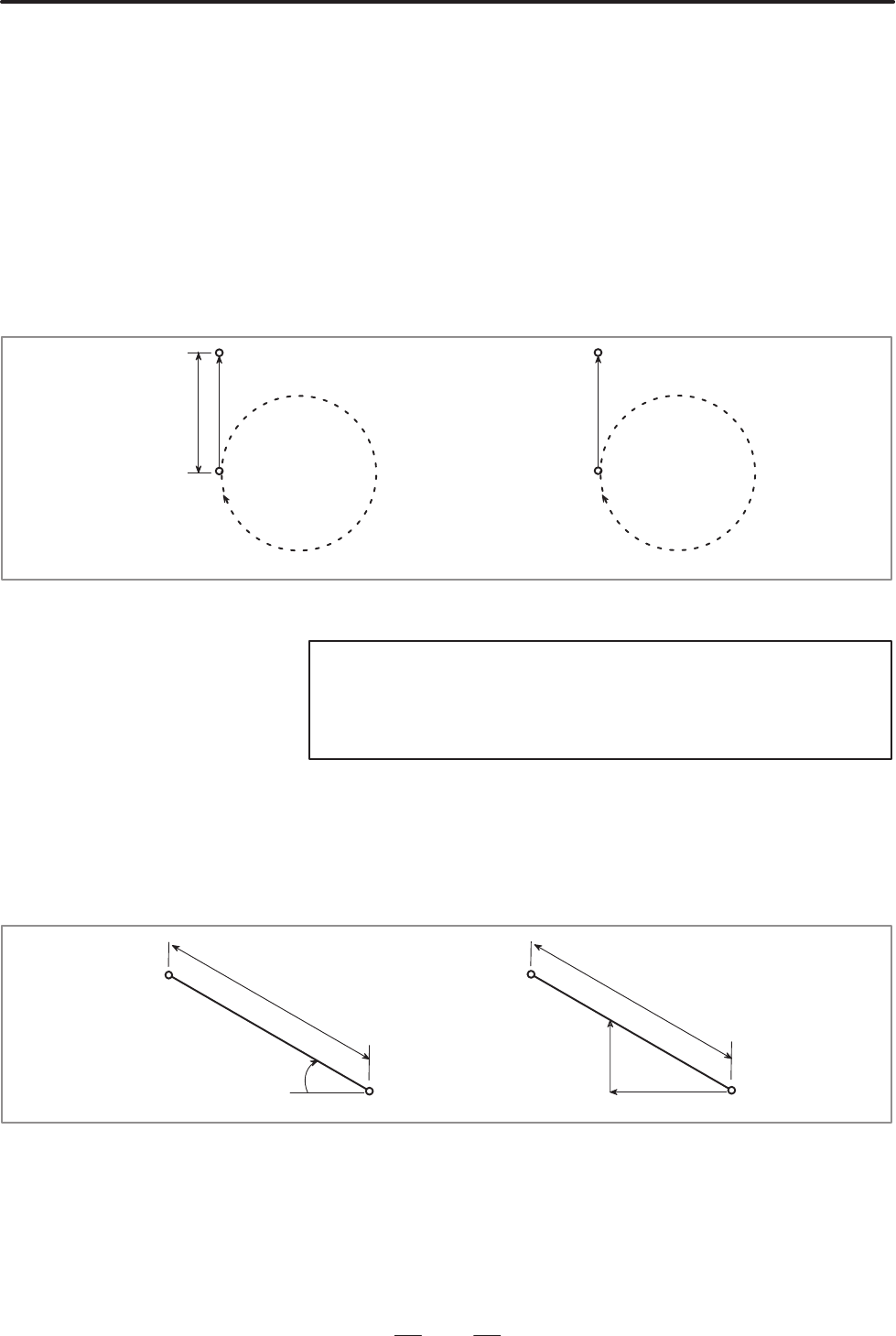

(b) When the immediately preceding figure block specifies a pending

arc, and contact point determination is specified

i) When no data is entered (with the direction of a vertical line

specified at figure selection)

 Usually, a contact point is automatically calculated from

the rotation direction of the arc and the direction of the

vertical line. The vertical line is pending.

If any of the specified directions is invalid, however, a warning

message is displayed to indicate that invalid data has been entered.

ii) When the X coordinate (X) of an end point, or a line length

(W) is entered.

Contact point

(5) Slanted line

NOTE

2 When an angle of 90° or greater is entered, a warning

message is displayed to indicate that invalid data has been

entered.

(a) When the immediately preceding figure block is not pending

i) When a line length (Q) and angle (J) are entered, or

ii) When a line length (Q), and the X component (I) and the Z

component (K) of an angle are entered

 The end point of a slanted line is determined.

Start point

End point

Start point

End point

iii) When an angle (J), and the X coordinate (X) or Z coordinate

(Z) of an end point are entered, or

iv) When the X component (I) and Z component (K) of an angle,

and the X coordinate (X) or Z coordinate (Z) of an end point

are entered

 The end point of a slanted line is determined
