2. MACHINING PROGRAMS FOR
LATHES WITH C–AXIS
TYPES OF MACHINING
PROGRAMS
403
2 When a number greater than or equal to 2 is entered for N (number
of grooves) and data is entered for EC (final angle), with no data
entered for A (angle)
C = 0
Example) C = 0.000
N= 3
EC =180.000
3 When data is entered for A (angle) and a number greater than or
equal to 2 is entered for N (number of grooves), with no data
entered for EC (final angle)
C = 0
Example) C = 0.000
A =180.000
N= 3

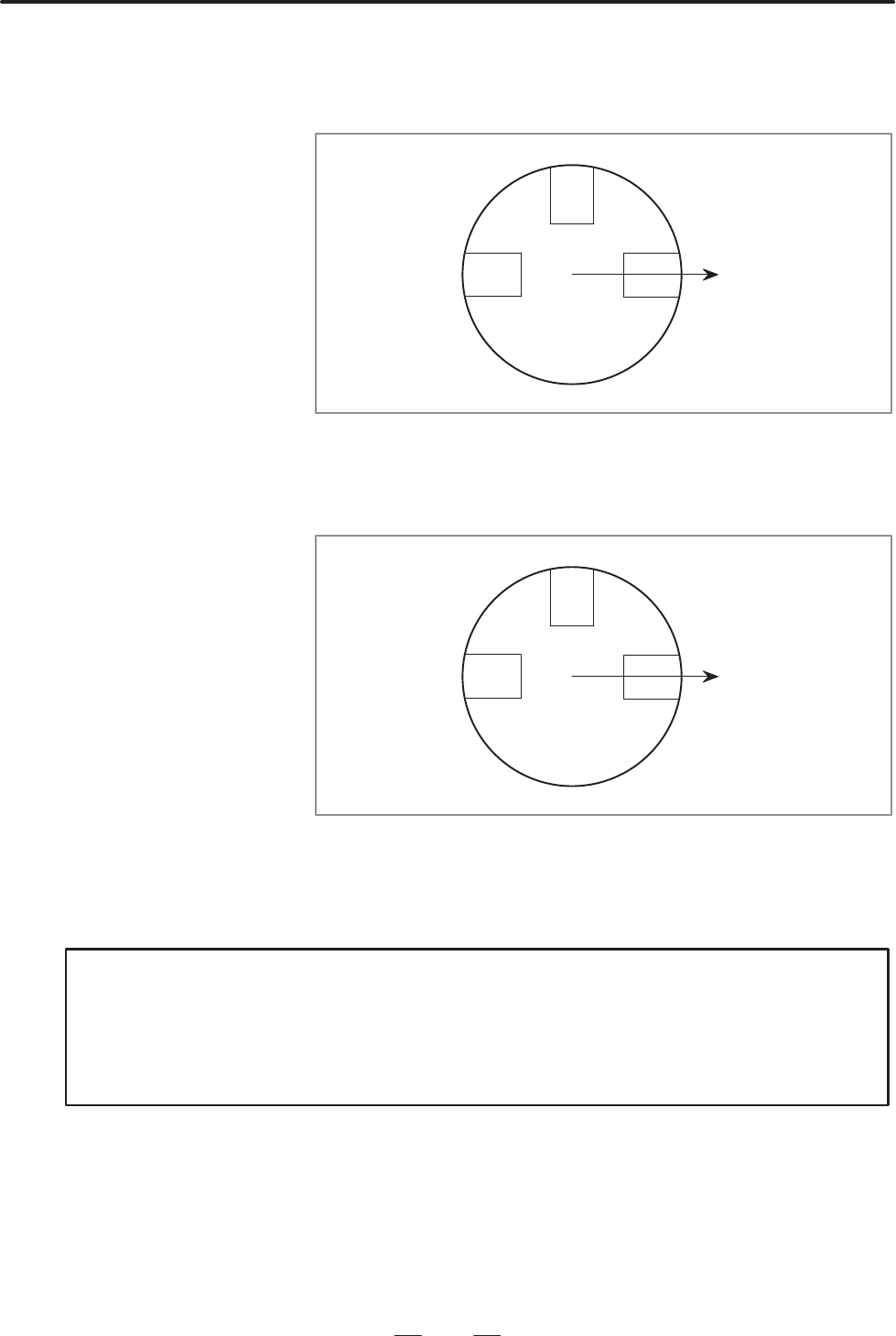

(2) Figure data when IRREGULAR. is specified as the groove figure
Up to six C–axis end face grooves can be specified at arbitrary
positions with arbitrary groove depths.
STAT–PX STAT–PZ STAT–PC END–PTZ END–PTC DEPTH
100.000 20.000 45.000 50.000 60.000 5.000
STAT–PX STAT–PZ STAT–PC END–PTZ END–PTC DEPTH
100.000 20.000 90.000 50.000 150.000 5.000
GROOV. n STAT–PX: X–coordinate of the start position of the nth
groove
STAT–PZ: Z–coordinate of the start position of the nth
groove
STAT–PC: C–coordinate of the start position of the nth
groove
