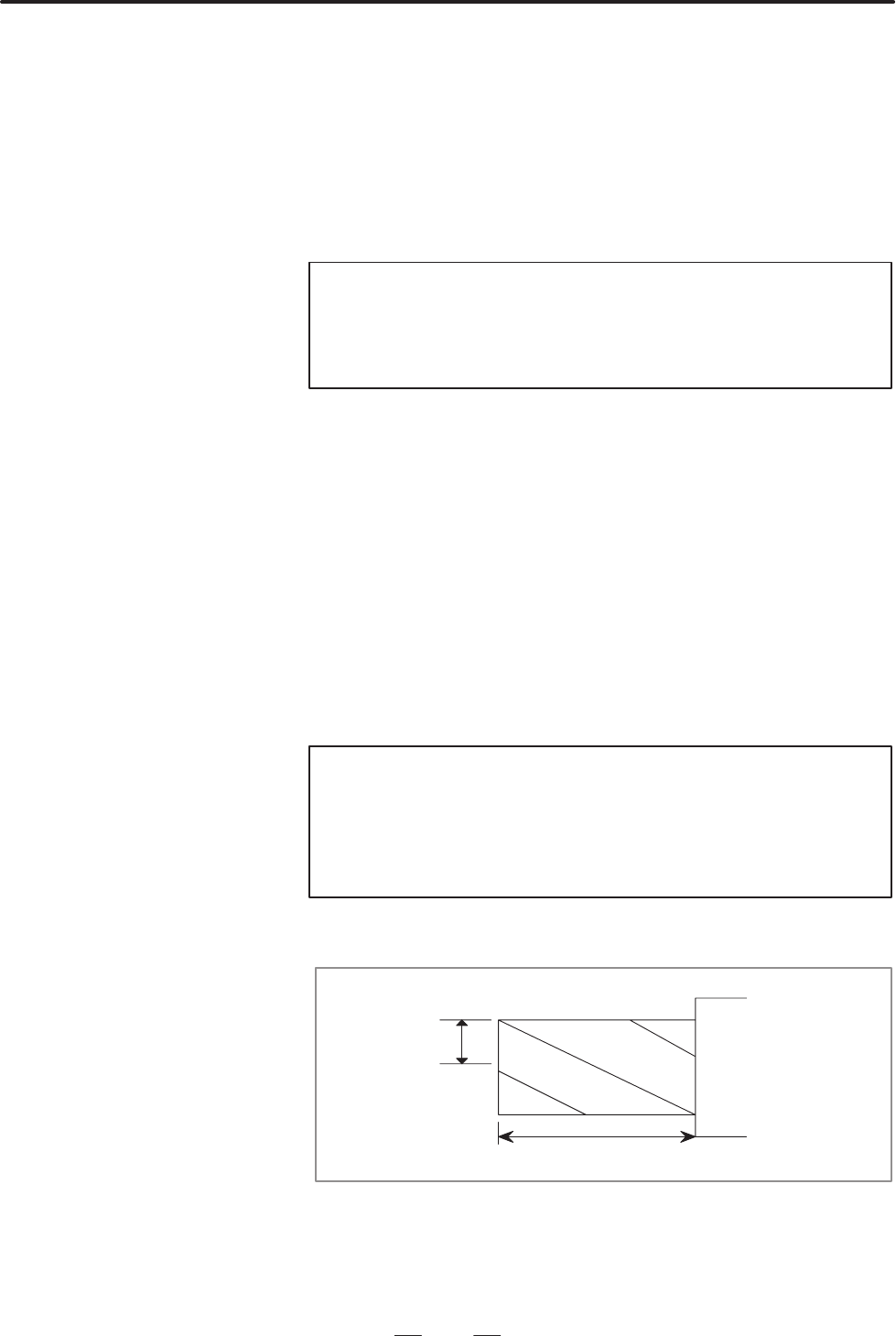

FANUC SUPER CAP T / CAP II T Operators manual Page 198

Operators manual
B–62444E–1/04
13. SETTING DATA
OPERATION
185
: Specify by pressing one of the [ROUGH], [FIN],
and [COMMON] soft keys.
: T–code to be output when a machining program
is executed (T4 digits/T6 digits)
: Direction in which a rotating tool rotates during
cutting
Specify by pressing the [NORMAL] or
[REVERS] soft key.
NOTE
The M code for normal rotation (parameter 9877) or reverse
rotation (parameter 9878) can be set in the respective
parameter for C–axis machining and Y–axis machining
: Radius of an end mill
When bit 0 (TLCOPY) of parameter 9774 is
set to 1, the cutter compensation value in a
conversationally coded program is specified
separately from that in an NC–format
program, and the former value is copied to
the NC offset data when a program is
executed.
When the bit is set to 0, the same cutter
compensation value is used in both a
conversationally coded program and an
NC–format program.
: Number of cutting edges on an end mill
NOTE
When cutting conditions are determined automatically, the
feed amount per cutting edge is specified. An actual feed
amount is calculated by multiplying the feed amount in the
determined condition data by the number of cutting edges.
: Effective length of an end mill
TR
TL
: Must be set to 0.
: Specify by pressing one of the [CARBID],
[HI–SPD], and [SPCIAL] soft keys.
ROUGH/FIN
OUTPUT T
REVOLUT.–D
TOOL RADIS (TR)
NUM OF BLAD (EN)
CUTTR LNGT (TL)
IMGNRY NOS (TD)
TL MATRIAL (TM)
