FANUC SUPER CAP T / CAP II T Operators manual Page 474

Operators manual

Page of 606

/ 606

B–62444E–1/04

5. BACK MACHINING FUNCTIONS

FOR A LATHE WITH

A SUB–SPINDLE

TYPES OF MACHINING

PROGRAMS

463

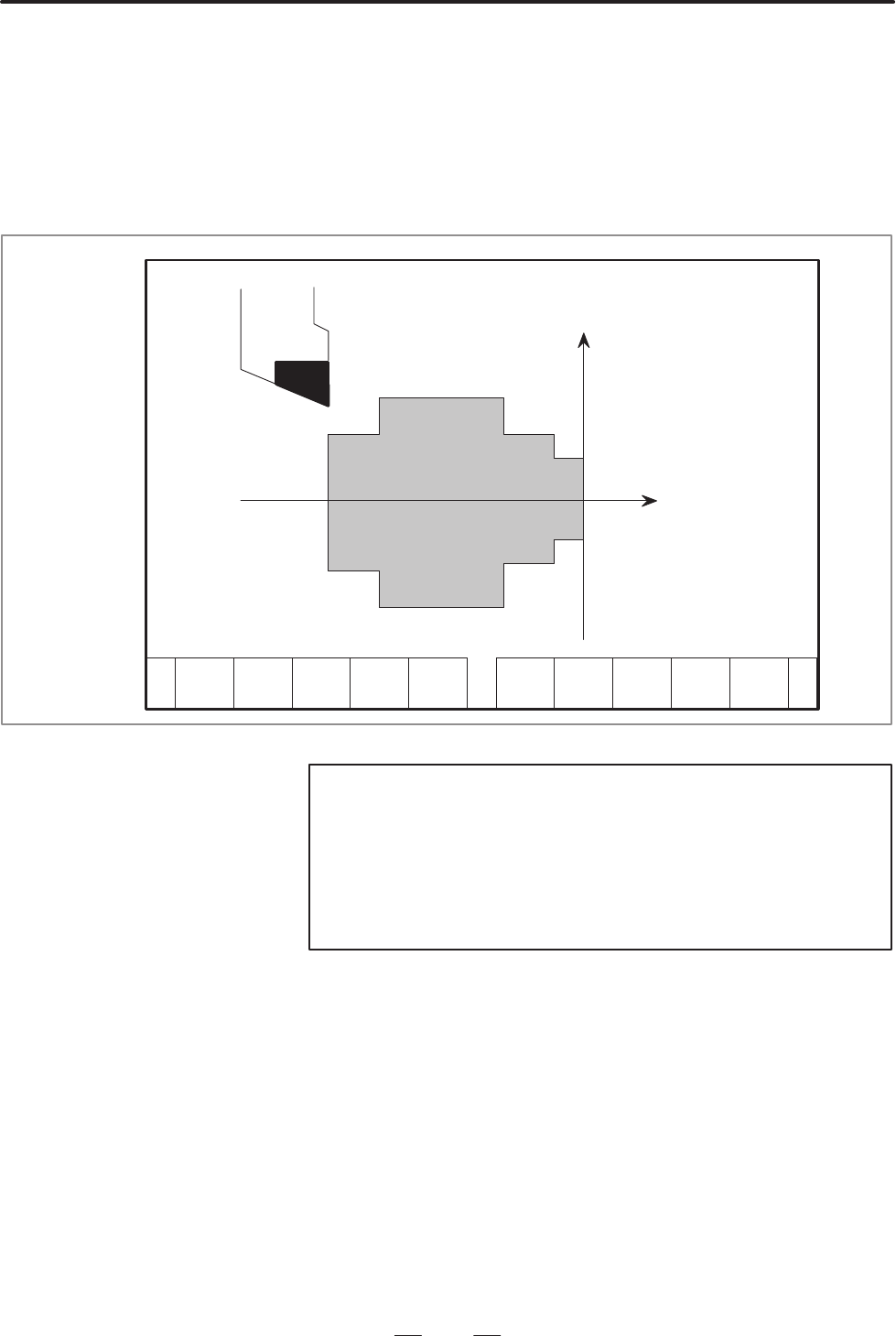

While an animated drawing of a single workpiece is displayed on the

screen as shown below, turning with the main spindle or sub–spindle is

simulated:

NOTE

When the function for machining with the sub–spindle is

used, the following animated simulation command for

shifting the graphic coordinate system is executed at the

beginning of each process of a converted NC program. The

command is not output if the suppression of the output in NC

program conversion is specified.

- Process of machining with the main spindle: G10 X0 Z0

P90105;

- Process of machining with the sub–spindle: G10 X0

Z(product–length) P90105;

In C–axis drilling, M codes for activating and deactivating the C–axis

brake are automatically output before and after each drilling action.

The M code for activating the C–axis brake and the M code for

deactivating the C–axis brake (M code for activating the brake plus 1) are

specified in parameter No. 5110. These M codes are automatically output

in the C–axis machining under control of spindle positioning.

5.4

ANIMATED

SIMULATION

FUNCTION FOR

MACHINING WITH

THE SUB–SPINDLE

5.5

FUNCTION FOR

CONTROLLING THE

C–AXIS BRAKE
