FANUC SUPER CAP T / CAP II T Operators manual Page 419

Operators manual

Page of 606

/ 606

2. MACHINING PROGRAMS FOR

LATHES WITH C–AXIS

B–62444E–1/04

TYPES OF MACHINING

PROGRAMS

408

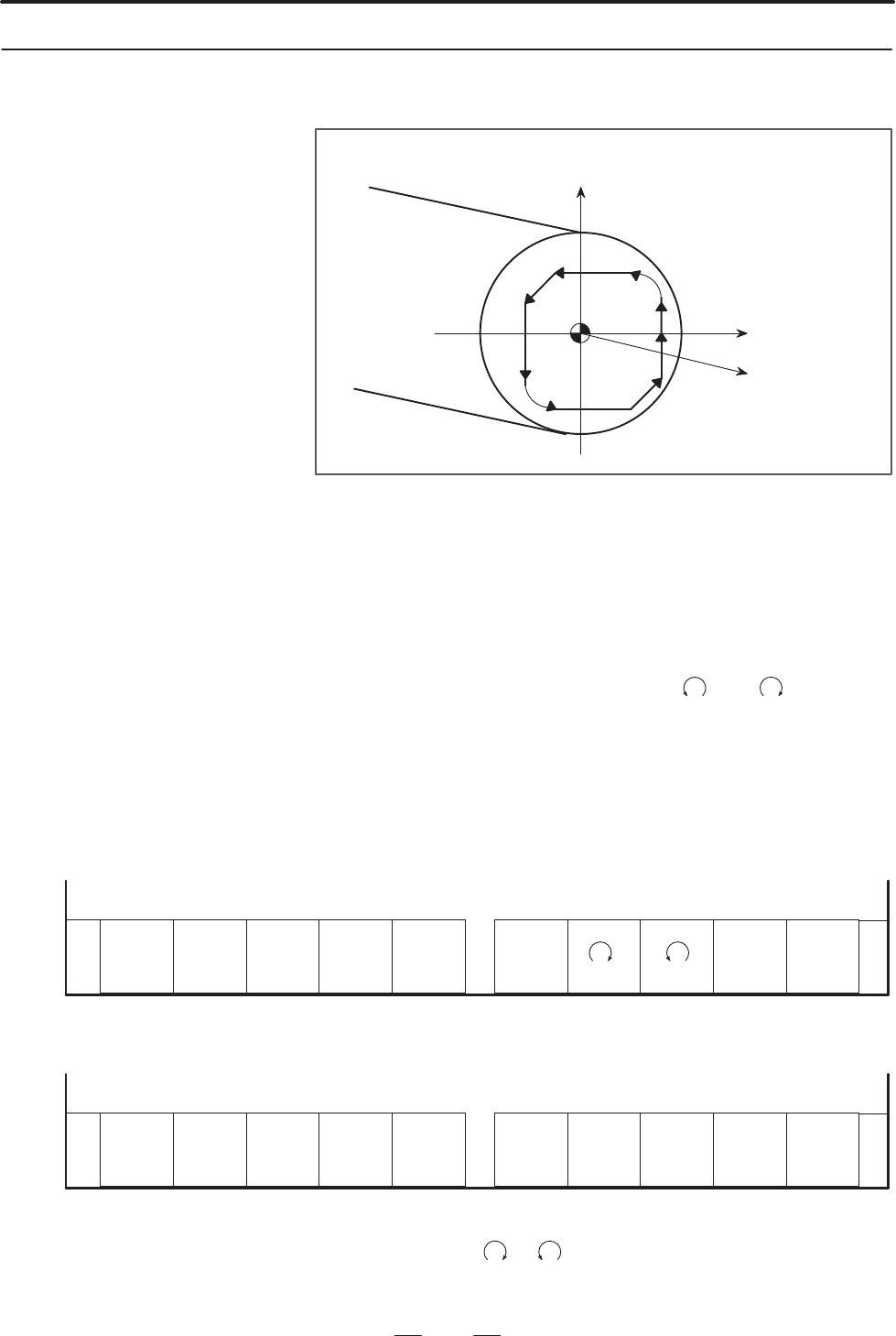

On the X–C plane coordinate system, a figure is specified having an

X–coordinate which is a diameter and a C–coordinate which is a radius:

C–axis (hypothetical axis)

(Radius)

X–axis

(Diameter)

Z–

axis

(1) Figure data programming screen for the approach

START PNT X COORD (X): X–coordinate of the notch start point

(diameter)

START PNT C COORD (C): C–coordinate of the notch start point

(radius)

APPROACH DIRECTION (P): Direction of rotation along the

approach arc

Use the [ ] or [ ] soft key to

select the direction.

APPROACH RADIUS (R): Radius of arc during approach

(2) Contour selection and figure data input

Enter the figure data for approaching and press the [INSERT] soft

key. Then, the following contour menu is displayed in the soft key

field.

± ²

ROUND PLOT

CHAM–

FER

Press the [+] soft key to display contour menus other than those

described above.

½ ¼

PLOT¿ TANGNT

FIGURE

END

ESCAPE

START

For information about contours that can be selected from the menu

other than arc [

] [ ], [ESCAPE], and start [START], see the

description of contour input in Section 1.1.

2.5.3

Details of Figure Data
