6. CREATING MACHINING PROGRAMS
OPERATION
57
Press the [1] soft key to create a new machining program on the main
menu.
A number and name can be specified for a machining program using the
conversational automatic programming function.
When entering the DEMONSTRATION program with number 210
(1) (PREP A NEW PROCESS PROGRAM)
210
INPUT
DEMONSTRAION
INPUT

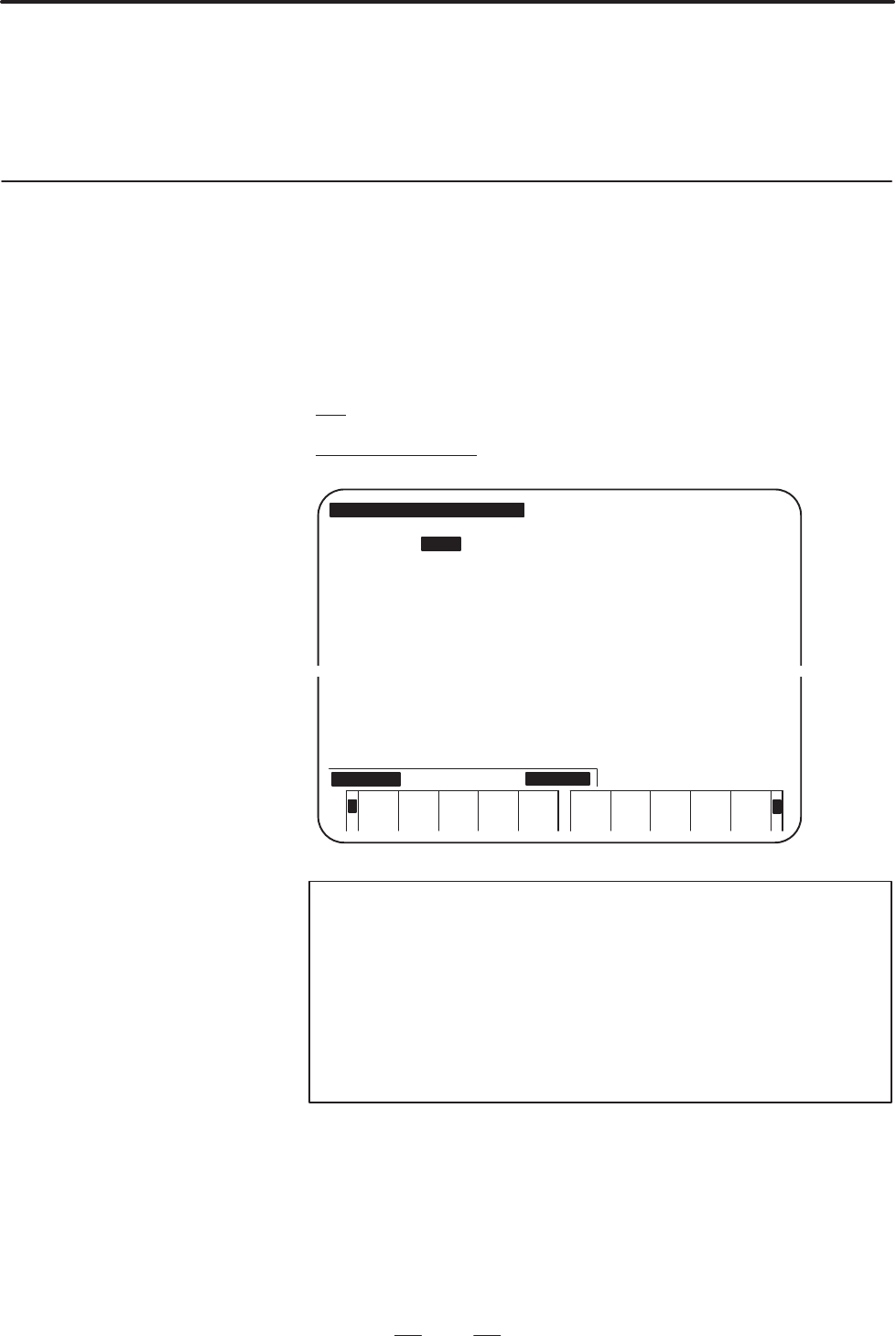

PREP A NEW PROCESSING PROGRAM [CAP.:HEAD–L]
NO. =0210 NAME = DEMONSTRATION
INITAL SET MATERIAL SHAPE OUT–DIA IN–DIA WORK–LNG MAX–S COOLANT
FC25 BAR 100.000 145.000 2000 ON
FINISHX FINISHZE–REMOVLPROD–LNG
0.200 0.100 2.000 150.000
SOFTKE TURRET_BE_OT
AL<
FC25
SS41 S45C SKD11 SUS304 PLOTFCD45
+
SOFTKEY MATERIAL
∼
∼
NOTE
1 Up to 20 characters can be used for the name of a program.
2 The PROD–LNG data item is displayed only when the
conversational function for two–turret lathes with two
opposing spindles or lathes with a sub–spindle is used.
3 The displayed workpiece materials vary with the machine
tool builder. For details, refer to the manual supplied by the
machine tool builder.
6.4
CREATING A
MACHINING
PROGRAM
6.4.1
Entering the Number
and Name of a
Program
