FANUC SUPER CAP T / CAP II T Operators manual Page 166

Operators manual

Page of 606

/ 606

B–62444E–1/04

12. DIRECT OPERATION FOR

MACHINING PROGRAMS

CREATED CONVERSATIONALLY

OPERATION

153

D : Outside diameter of a workpiece

L’ : Workpiece length

GOZ : Tool geometry compensation (Z)

WOZ : Tool wear compensation (Z)

WSZ : Shift of the Z coordinate in the workpiece

coordinate system (Z)

CL : Amount of clearance (100 mm or 10 inches)

L, W, L1, W1 : Dimensions of the chuck

(2) When machining is suppressed in the area formed by points a’, b’,

e’, and f’

C–axis center drilling : Side face

C–axis drilling : Side face

C–axis tapping : Side face

C–axis grooving : Side face

Cylindrical machining : Side face

(3) When machining is suppressed in the area formed by points a”, b”,

e”, and f”

C–axis center drilling : Side face

C–axis drilling : Side face

C–axis tapping : Side face

C–axis grooving : Side face

C–axis notching : End and side faces

NOTE

When the origin of the workpiece coordinate system is on

the end face of the chuck, the length of the workpiece (L’)

is ignored. The machining allowance for the end face is not

included in workpiece length L’.

When a blank plate is machined, point X1 on the outer

surface is used.

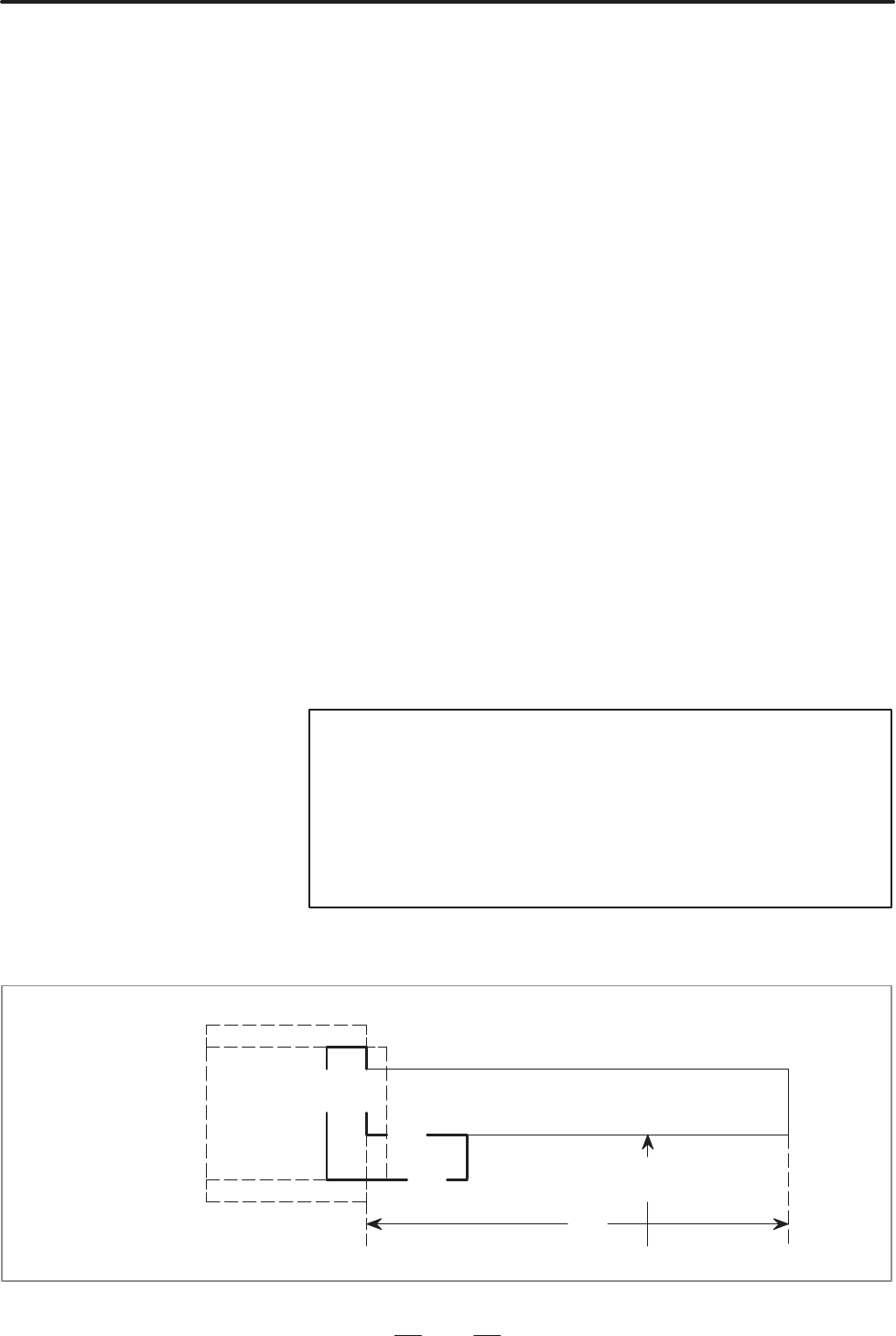

(d) Internal claw chucks (rotating tool)

f”

f’

e”

e’

a”

a’

b’

b”

L’
