FANUC SUPER CAP T / CAP II T Operators manual Page 594

Operators manual
B–62444E–1/04
A. PARAMETERS
APPENDIX
587
X1
GRPAXS=11 GRPAXS=12
Z
Z
X2
X2
X1
ZZ
X2
X1
GRPAXS=15
X1
X2
GRPAXS=14

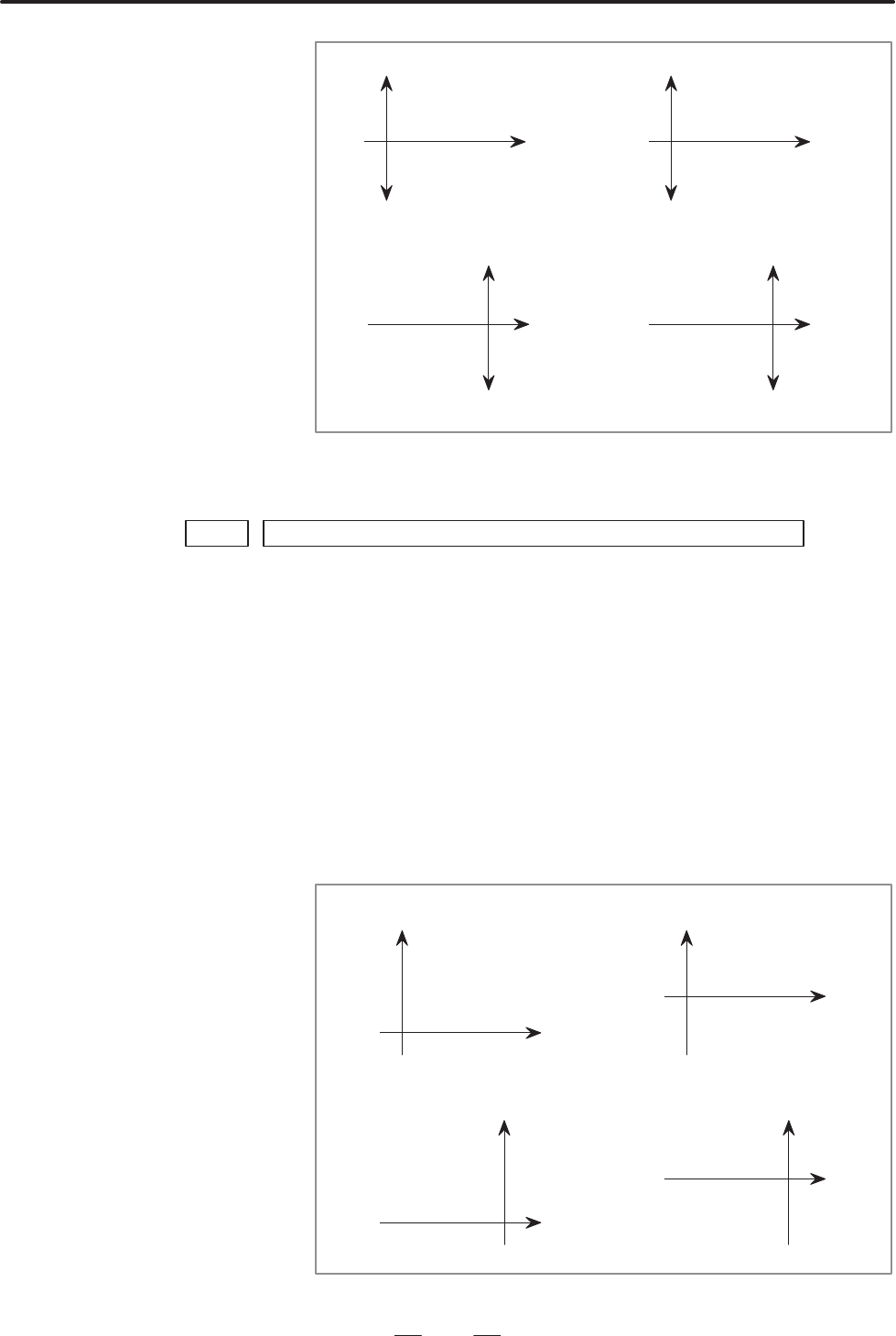

6510 Drawing coordinate system: GRPAX
GRPAX: Drawing coordinate system in the graphic function (Set the value each tool
post)
D Only the following values are valid for tool post 1 of the 1–path lathe
and tool post 1 of the 2 turrets lathe with facing two spindles.
1 : The program reference position is on the chuck end surface and only
the upper half of the material is displayed.
11: The program reference position is on the chuck end surface and the
upper and lower sides of the material are displayed.
4 : The program reference position is on the workpiece end surface and
only the upper half of the material is displayed.
14: The program reference position is on the workpiece end surface and
the upper and lower sides of the material are displayed.
X
GRPAX=1
Z
X
GRPAX=11
Z
X
Z
GRPAX=4
GRPAX=14
X
Z
