6. CREATING MACHINING PROGRAMS
OPERATION
61

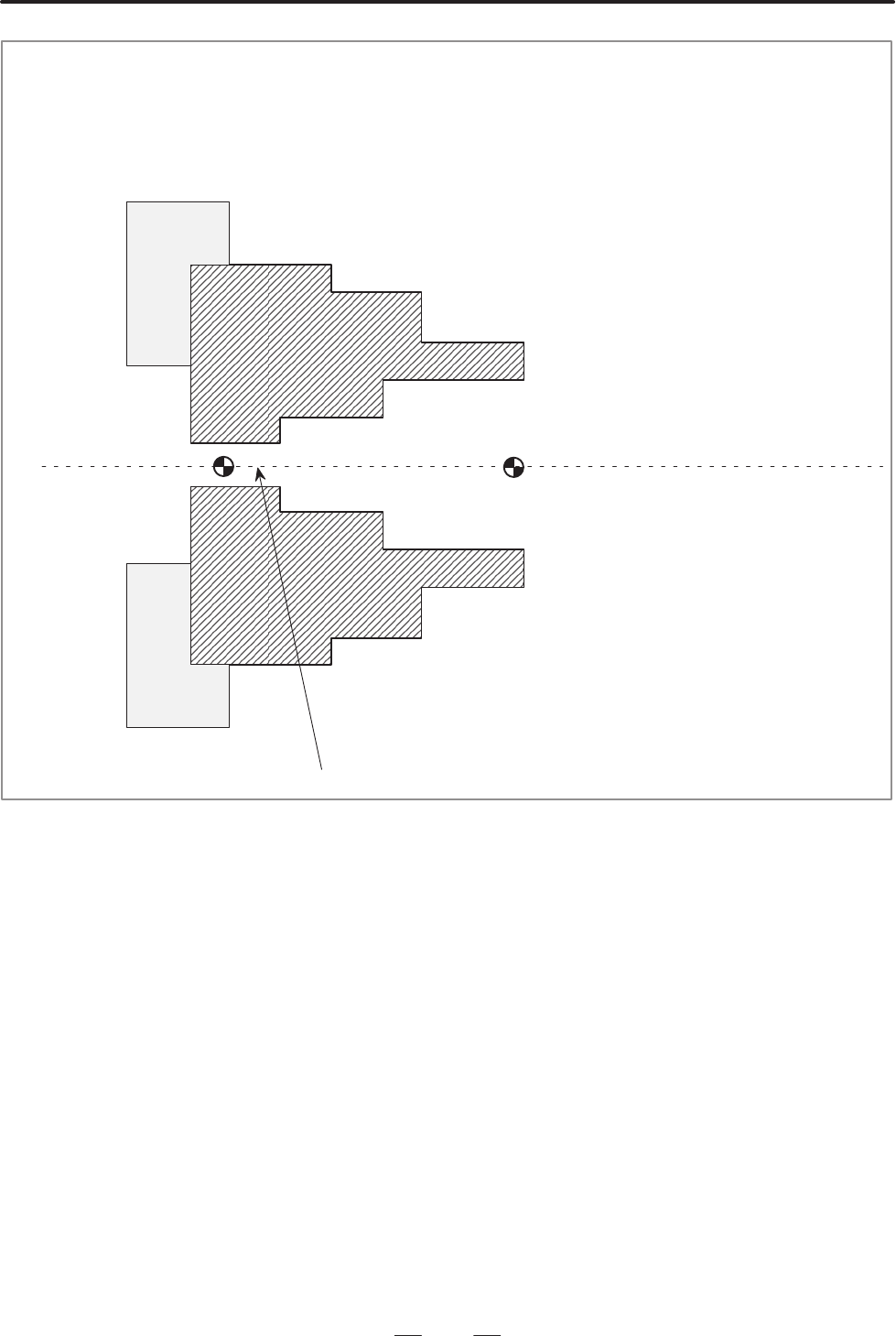

Example) Cross–section of molding material
Points on the outer surface
Coordinates of point (1) = (X1, Z1)
Coordinates of point (2) = (X2, Z2)
Coordinates of point (3) = (X3, Z3)
Coordinates of point (4) = (X4, Z4)
Coordinates of point (5) = (X5, Z5)
Coordinates of point (6) = (X6, Z6)
Points on the inner surface
Coordinates of point (7) = (X1, Z1)
Coordinates of point (8) = (X2, Z2)
Coordinates of point (9) = (X3, Z3)
Coordinates of point (10) = (X4, Z4)
Coordinates of point (11) = (X5, Z5)
Coordinates of point (12) = (X6, Z6)
(2)
Program reference position
(on the edge of a workpiece)
Program reference position (on the edge of the chuck)
Figure for checking
the outside claw
(1)
(4)
(3)
(5)
(6)
(7)
(8)
(11) (12)
(10)
(9)
