B-63784EN-1/01 OPERATION 3.MANUAL OPERATION

- 79 -

3.7 MANUAL ABSOLUTE ON AND OFF

Whether the distance the tool is moved by manual operation is added to

the coordinates can be selected by turning the manual absolute switch

on or off on the machine operator's panel. When the switch is turned on,

the distance the tool is moved by manual operation is added to the

coordinates. When the switch is turned off, the distance the tool is

moved by manual operation is not added to the coordinates.

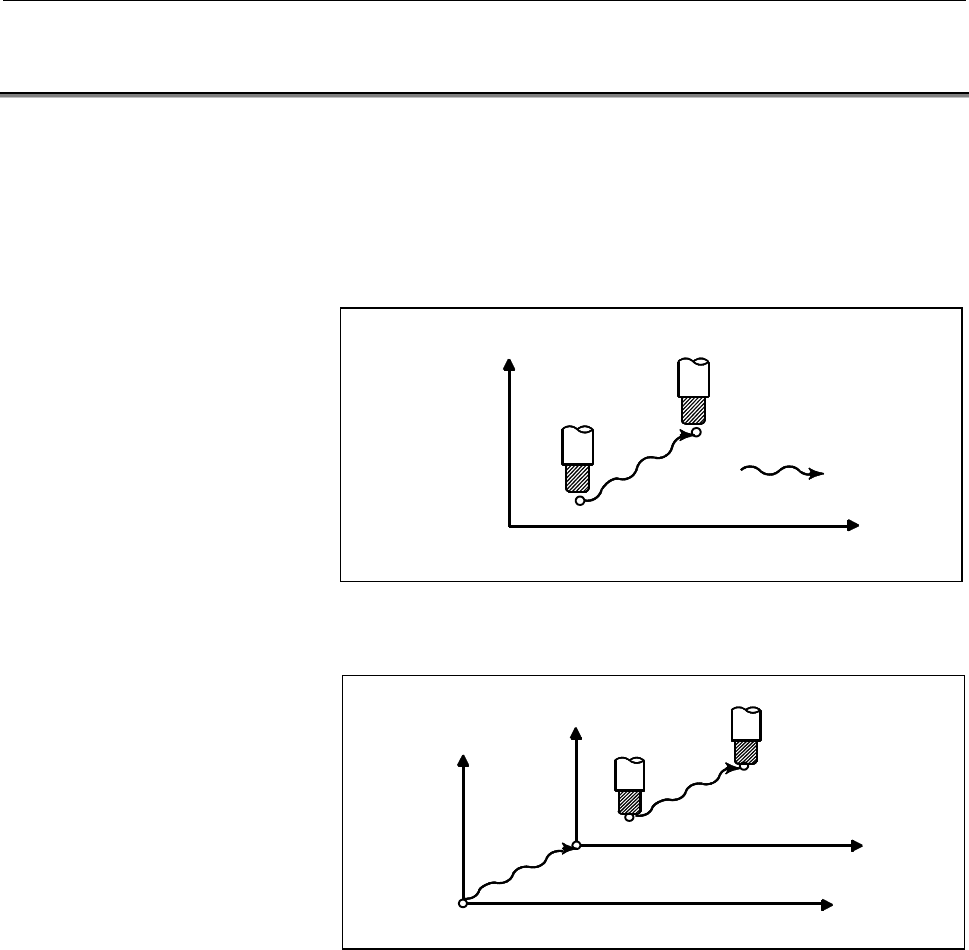

Fig.3.7 (a) Coordinates with the switch ON

Fig.3.7 (b) Coordinates with the switch OFF

Y axis

X axis

Manual operation

The coordinates values change by the amount of manual operation.

The coordinates do not change.
