B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 393 -

9.18

HIGH-SPEED HIGH-PRECISION MACHINING SETTING SCREEN

The high-speed high-precision machining setting screen displays

parameters associated with high-speed high-precision machining.

This screen can be used to save and switch between three types of

parameter sets defining different finish levels.

This screen can also be used to set basic parameters for high-speed

high-precision machining easily with the automatic setting function

and automatic adjustment function.

Displaying the high-speed high-precision machining setting screen

Adjustment screen

To display the adjustment screen, follow the procedure described in

Section II-2.3 or II-2.5, "System."

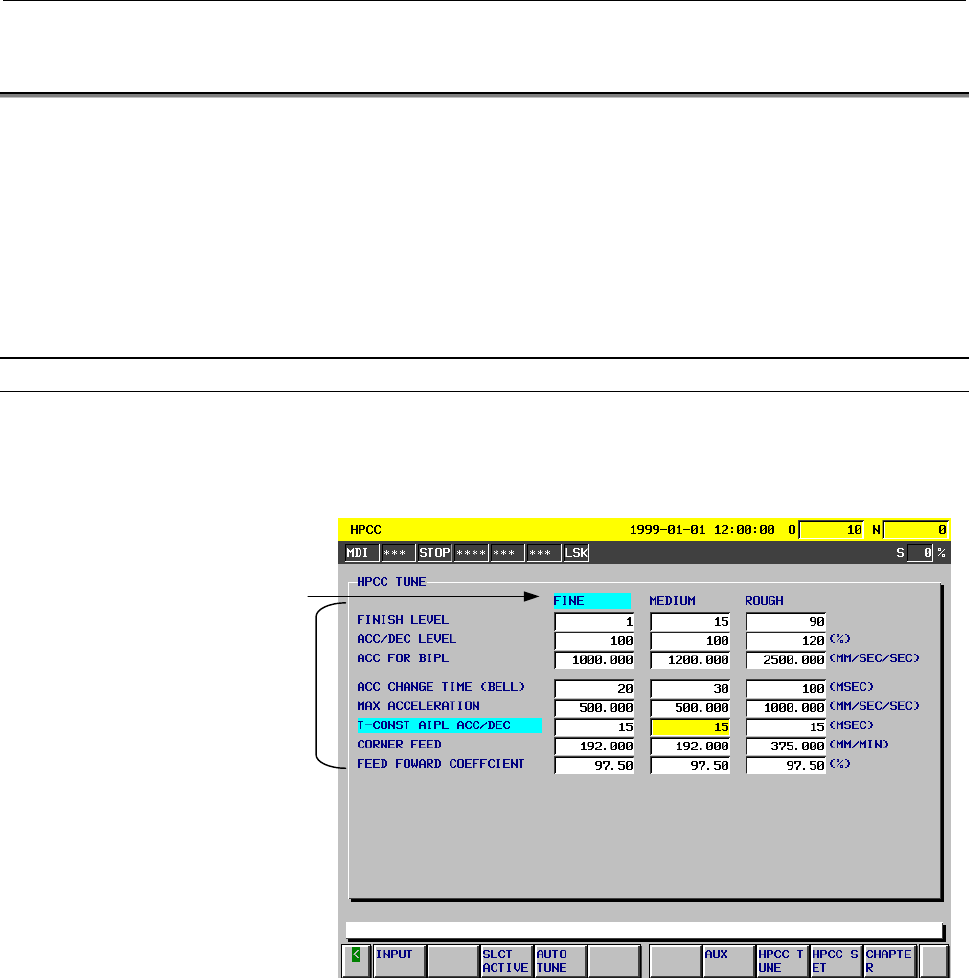

Fig.9.18 (a) Adjustment Screen

(A) Parameter set

The state of the parameter set used by the machining program is

displayed. Three types of parameter sets are supported: the parameter

set for finish machining, the parameter set for semifinish machining,

and the parameter set for rough machining. A selected parameter set is

displayed in reverse video.

(A)

(B)
