Series 15i/150i-MB Operators manual Page 393

Operators manual

Page of 640

/ 640

B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 371 -

- Adding a tool group

Method 1

(1) Select a group for which no data is set.

(2) Position the cursor to the tool data (state, T code, H code, or

D code).

(3) Press the [ADD T CODE] soft key.

(4) Enter a tool number.

(5) Press the [EXEC] soft key.

Method 2

(1) Select a group for which no data is set.

(2) Position the cursor to the tool data (state, T code, H code, or

D code).

(3) Enter a tool number.

(4) Press the [ADD T CODE] soft key.

A service life count type is set according to bit 3 (LTM) of parameter

No. 7400. All of the service life values, service life counter value, H

code, and D codes are set to 0.

- Adding a tool number

Method 1

(1) Position the cursor to the tool data (state, T code, H code, or

D code) immediately preceding the number to be added.

(2) Press the [ADD T CODE] soft key.

(3) Enter a tool number.

(4) Press the [EXEC] soft key.

Method 2

(1) Position the cursor to the tool data (state, T code, H code, or

D code) immediately preceding the number to be added.

(2) Enter a tool number.

(3) Press the [ADD T CODE] soft key.

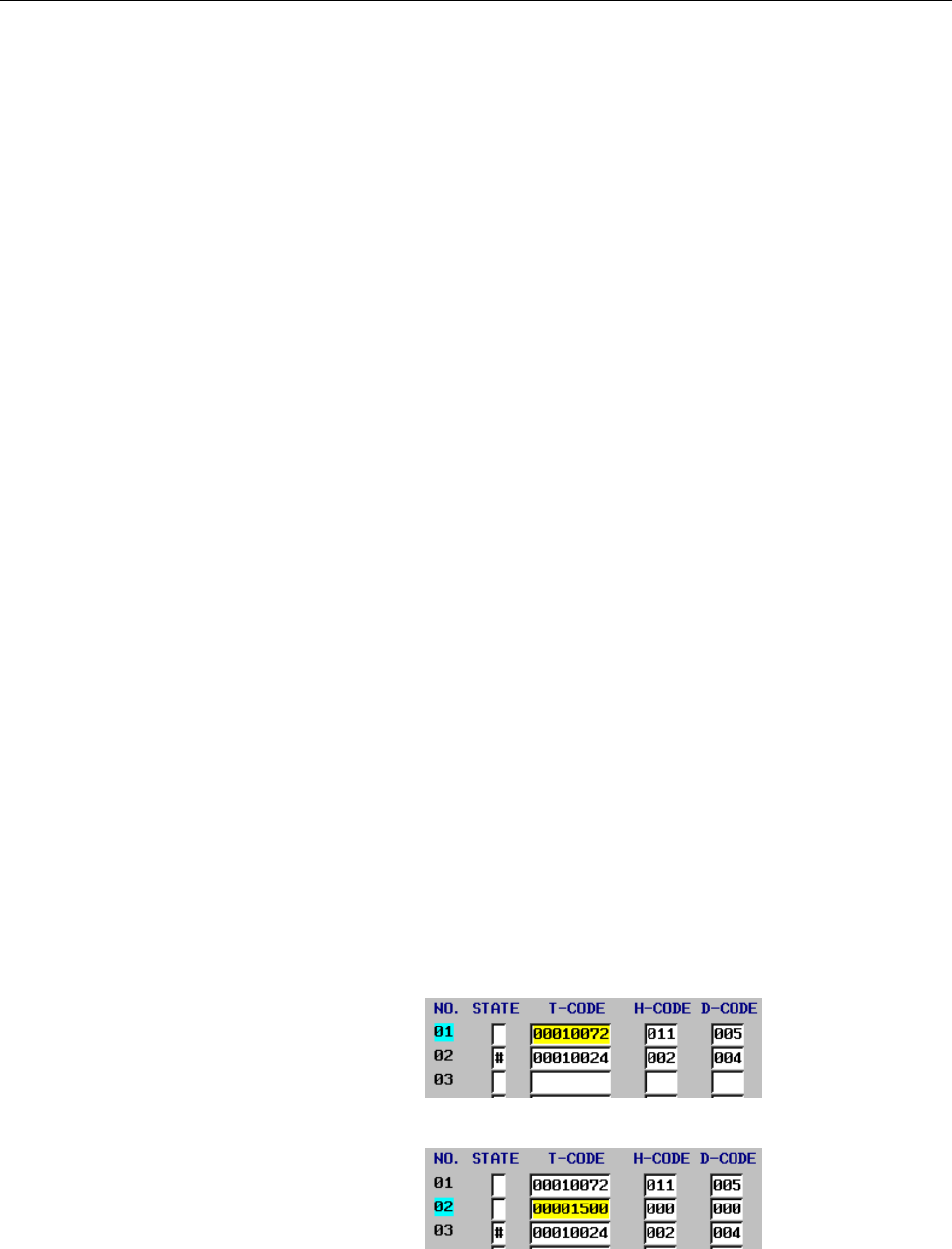

(Example) Adding tool number 1500 between No. 1 and No2.

(1) Position the cursor to the data of displayed number 1. Then,

enter 1500 and press [ADD T CODE].

(2) The entered T code 1500 is added at the position of No. 2. H

code and D code are set to 0.
