4.10 TOOL WITHDRAWAL AND RETURN

The tool can be withdrawn from a workpiece in order to replace the tool

when it is damaged during machining, or merely to check the status of

machining. The tool can then be advanced again to restart machining

efficiently.

Procedure for tool withdrawal and return

Procedure1 Programming

Specify a retraction axis and distance in command G10.6IP_

beforehand. In the sample program below, the N20 block specifies that

the Z-axis is the retraction axis and the retraction distance is to be 50

mm.

N30

N10

(Sample program)

N10 G91 Z-50. ;

N20 G10.6 Z50. ;

N30 G01 X150. F500. ;

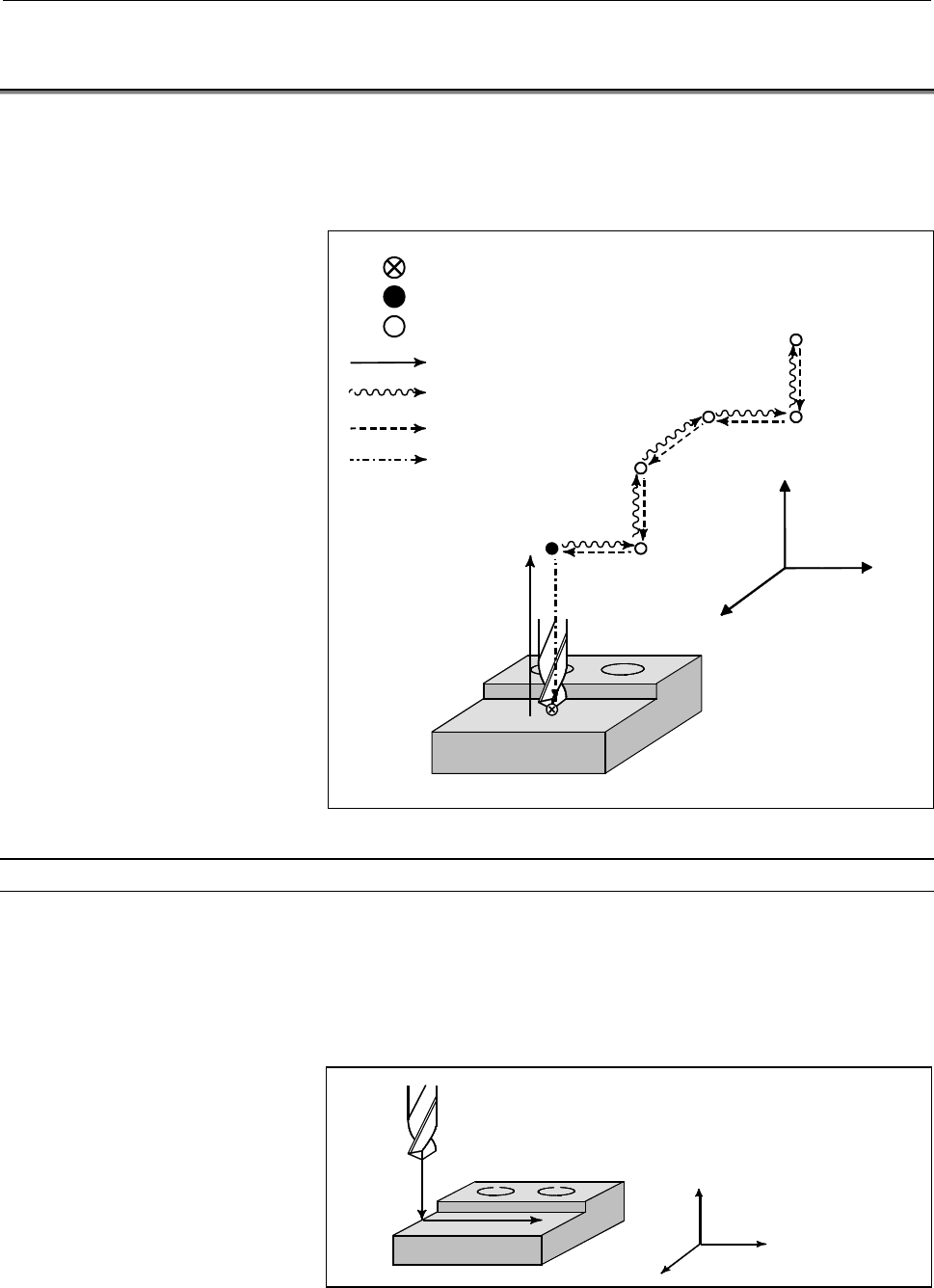

: Position where the TOOL WITHDRAW switch is turned on

: Programmed position

: Position to which the tool is retracted by manual operation

: Retraction path

: Manual operation (withdraw path)

: Return path

: Repositioning
