10.5 CURRENT POSITION DISPLAY

Four current-position screens are used.

- Overall position display screen

- Current-position screen based on the relative coordinate system

- Current-position screen based on the workpiece coordinate

system

- Current-position screen based on the machine coordinate system

On each screen, the actual feedrate and the actual spindle speed are also

displayed, in addition to the current position.

Overall position display

Overall position display screen

On the overall position display screen, the current positions in the

relative, workpiece, and machine coordinate systems are displayed, as

well as the remaining amount of travel.

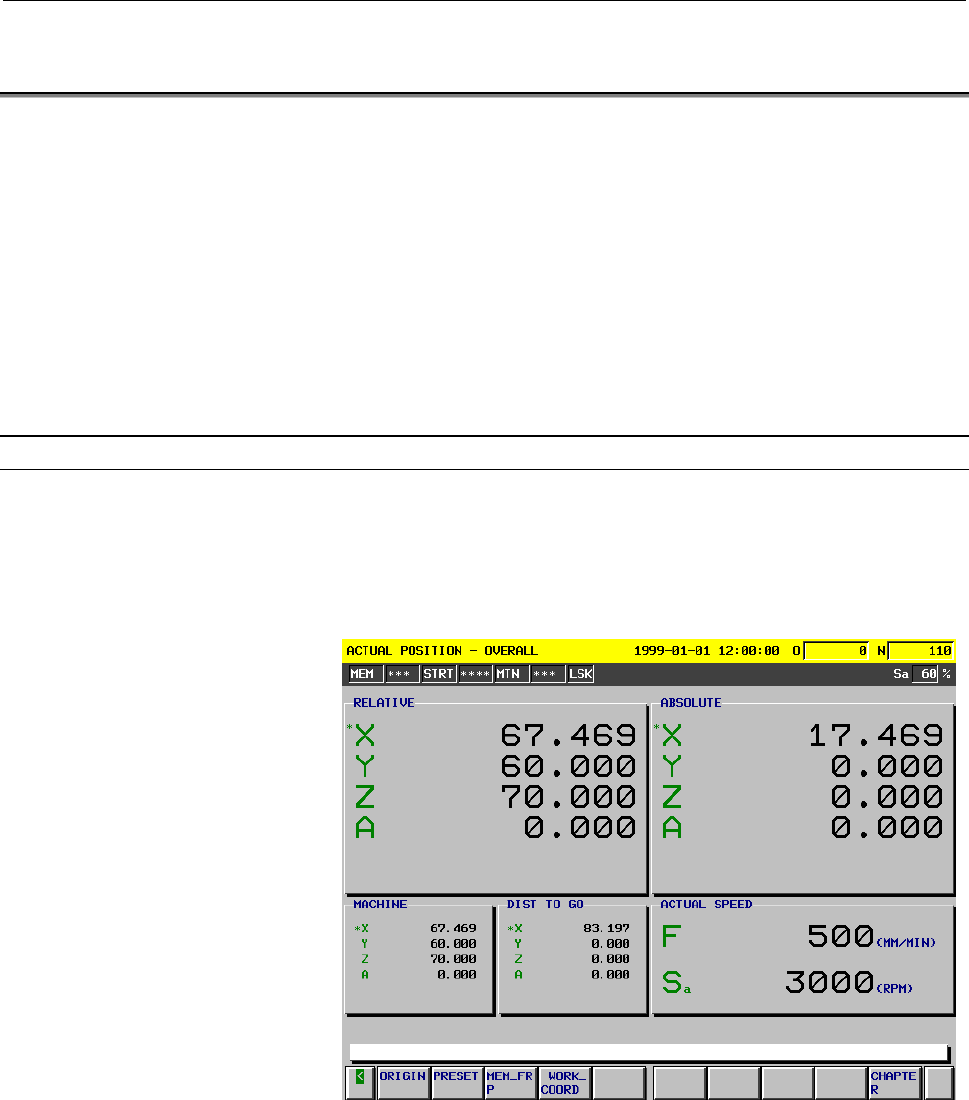

Fig.10.5 (a) Overall position desplay screen
