B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 333 -

9.8 MANUAL TOOL LENGTH MEASUREMENT

A numeric value displayed as a relative position can be placed in offset

memory as an offset by using the soft keys.

To do this, first choose the tool offset screen. This screen shows a

relative position. Then, choose a reference tool, and manually move

the reference tool until it touches a machine-specific point. Next, reset

the reference position displayed on the screen to zero. Then, manually

move the tool to be measured until it touches the same machine-

specific point. At this time, the relative position display indicates the

difference between the reference tool and the tool to be measured. This

difference can be set as an offset.

Displaying the tool offset screen

To display the tool offset screen, follow the procedure described in

Section II-2.3 or II-2.5, "Offset Setting." The screen has three layouts

for tool offset memories A, B, and C. An example of memory A is

shown below:

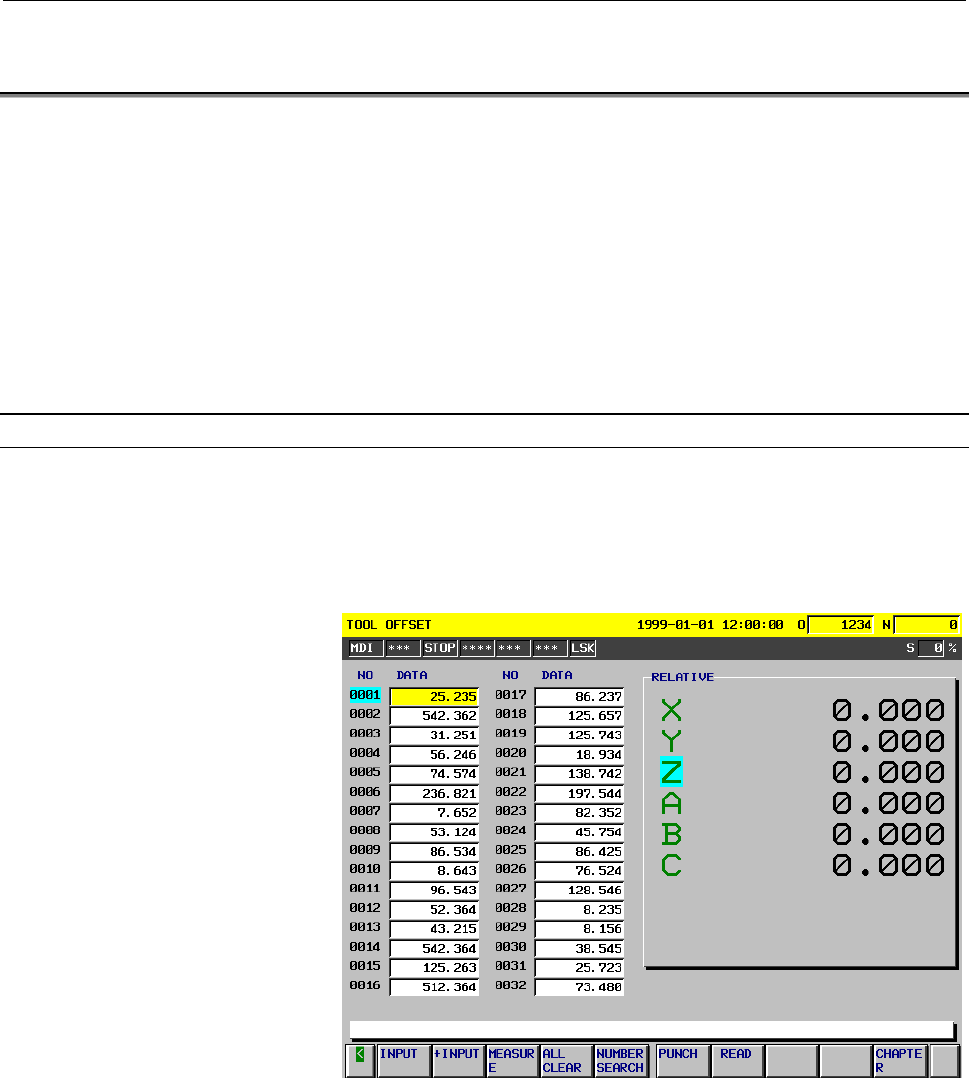

Fig. 9.8 (a) Tool Offset Memory A
