6.SAFETY FUNCTIONS OPERATION B-63784EN-1/01

- 198 -

Limitation

- Manual numeric command

For manual numeric commands, no stroke limit check is made before

movement.

- Machine lock

If machine lock is applied at the start of movement, no stroke limit

check made before movement is performed.

-G23

When stored stroke limit 2 is disabled (G23 mode), no check is made to

determine whether the tool enters the inhibited area defined by stored

stroke limit 2.

- A block consisting of multiple operations

If a block consisting of multiple operations (such as a canned cycle and

Cutter Compensation) is executed, an alarm is issued at the start point

of any operation whose end point falls within a inhibited area.

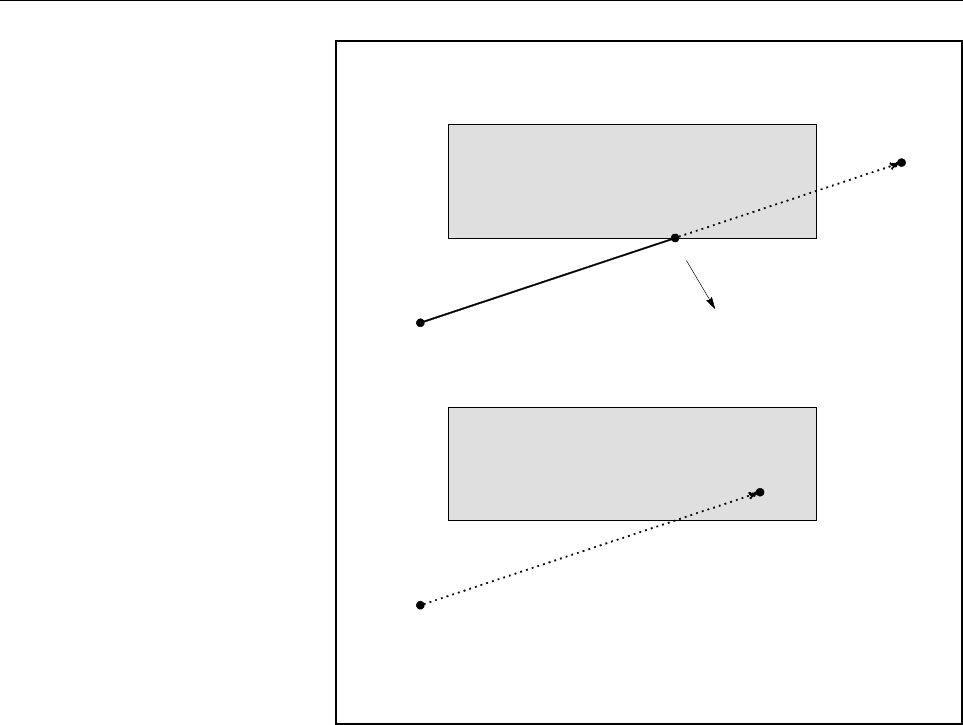

Example 2)

End point

Start point

Immediately upon movement commencing

from the start point, the tool is stopped to

enable a stroke limit check to be performed

before movement.

The tool is stopped at point a according

to stored stroke limit 2.

Inhibited area defined by

stored stroke limit 2

Inhibited area defined by

stored stroke limit 2

End point

Start point
