9.SETTING AND DISPLAYING DATA OPERATION B-63784EN-1/01

- 332 -

9.7 DISPLAYING AND SETTING PITCH ERROR COMPENSATION

DATA

Pitch error compensation data is set to match the characteristics of a

machine connected to the CNC.

Pitch error compensation data varies from one machine to another, and

any modification made to the pitch error compensation data degrades

the machine precision.

In general, the end user should not modify the pitch error compensation

data.

Displaying and setting pitch error compensation data

- Pitch error compensation screen

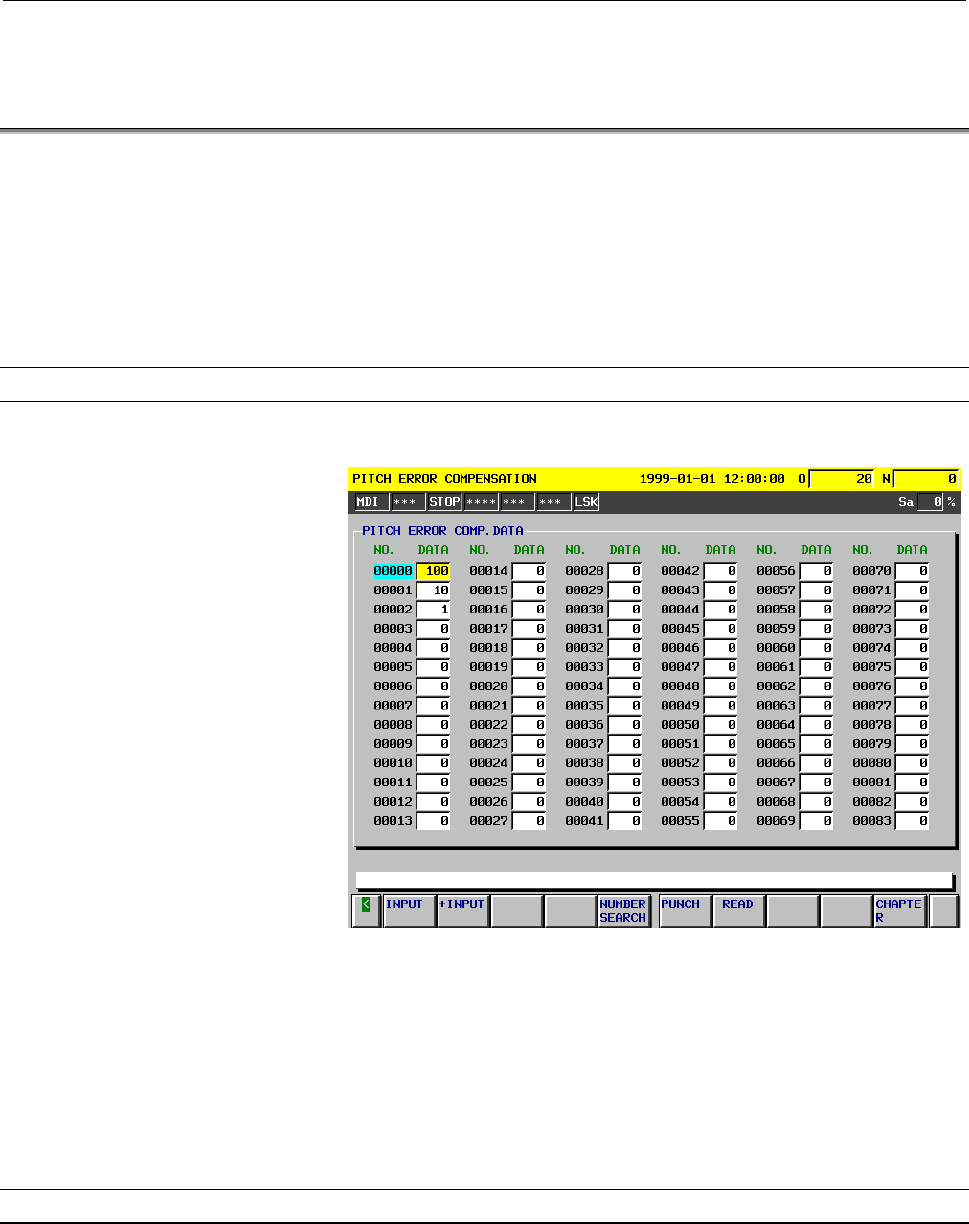

Fig. 9.7 Pitch Error Compensation Screen

- Display data

The numbers and values of the pitch error compensation data are

displayed.

Pitch error compensation data ranging from No. 0 to No. 1279 (1280

points) is displayed.

For bidirectional pitch error compensation, additional data ranging from No.

10000 to No. 11279 (1280 points) is displayed.

Setting pitch error compensation data

For the method of setting, refer to the Connection Manual (B-

63783EN-1).
