9.SETTING AND DISPLAYING DATA OPERATION B-63784EN-1/01

- 312 -

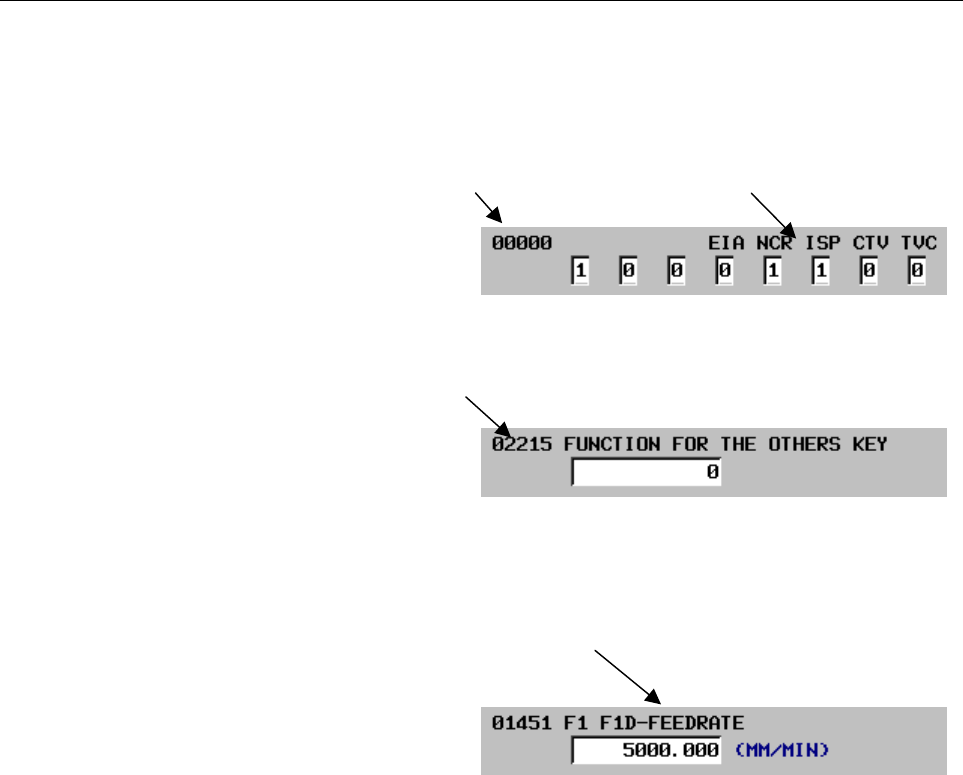

1. Bit type parameters

This type of parameter consists of 8 bits, each of which is set to 0 or 1.

A bit name is displayed above each bit position. (No name is displayed

above some bit positions.)

2. Integer type parameters

In this type of parameter, an integer is set.

3. Parameters of real number type

In this type of parameter, a real number is set.

A setting with a decimal point is displayed, and the unit of a setting is

also displayed.

In addition, parameters of axis type are supported to enable the setting

of a value for each axis. According to the types of settings, parameters

of axis type are divided into three types: bit axis type, integer axis type,

and real number axis type.

An axis name is displayed to the left of the setting for each axis.

However, no axis name is displayed for axes beyond the maximum

number of controlled axes.

Variable name

Unit

Bit name

Setting

Parameter number
