10.DISPLAY OPERATION B-63784EN-1/01

- 520 -

(5) Enter a character string used in the names of the programs

belonging to the group to search for, using the MDI keys. No limit

is imposed on the number of characters in the program name;

however, the system can search for only the first 48 characters of

the program name.

(Example 1) To search for those programs whose program names

start with character string "GEAR-1000", enter

DIR.GRP >GEAR-1000*

(Example 2) To search for those programs whose program names

include character string "GEAR-1000", enter

DIR.GRP >*GEAR-1000*

(Example 3) To search for those programs whose program names

are identical to "GEAR-1000," enter DIR.GRP >GEAR-

1000

The character string to be specified can contain wildcard

characters (* and ?). See "Explanation" for details.

(6) Click soft key [EXEC]. The group-by-group program directory

screen is displayed with a list of all programs whose program

names contain the entered character string.

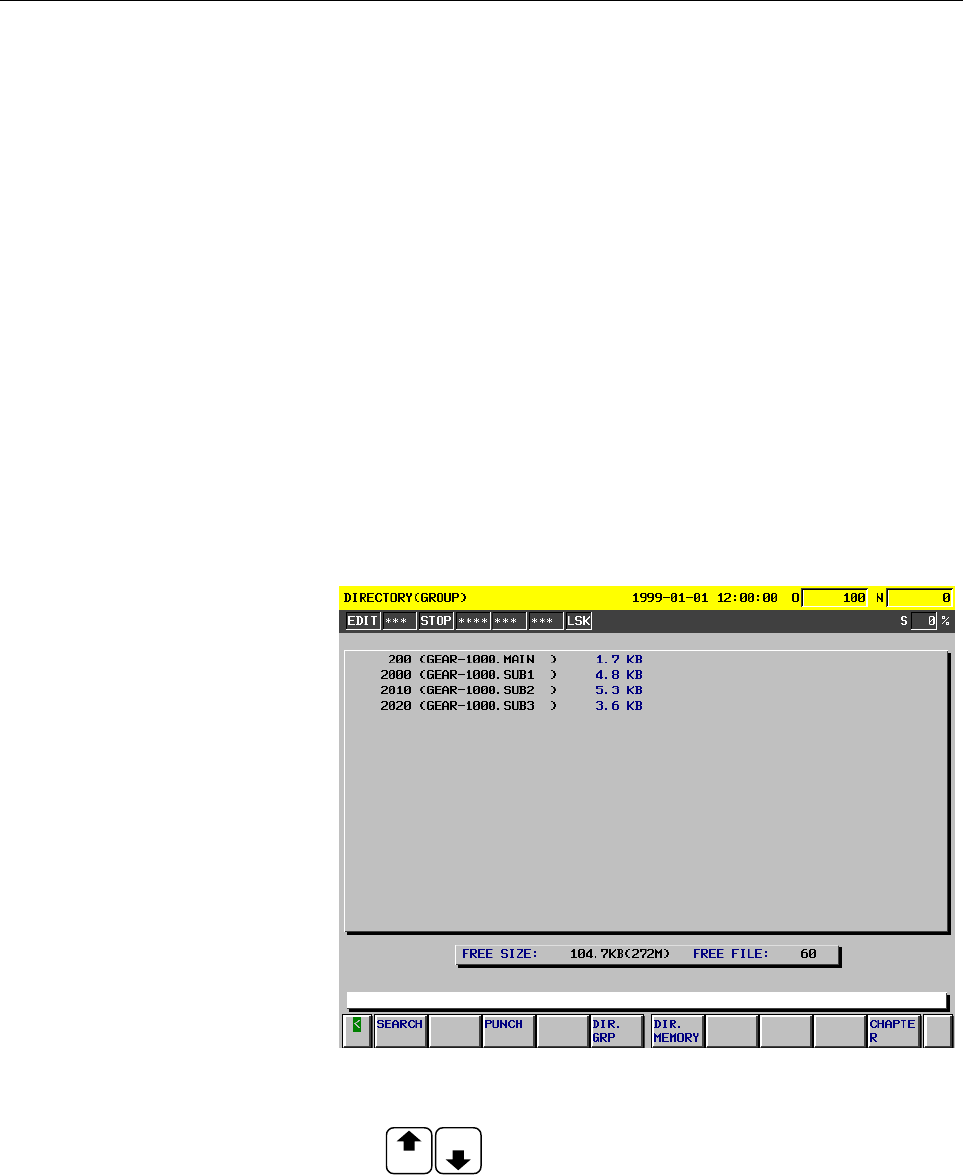

Fig. 10.16 (b) Group-by-Group Program Directory Screen

If the program directory spans multiple pages, the page keys

PAG E

can be used to switch between pages.
