2.OPERATIONAL DEVICES OPERATION B-63784EN-1/01

- 48 -

2.5.5.2 Program

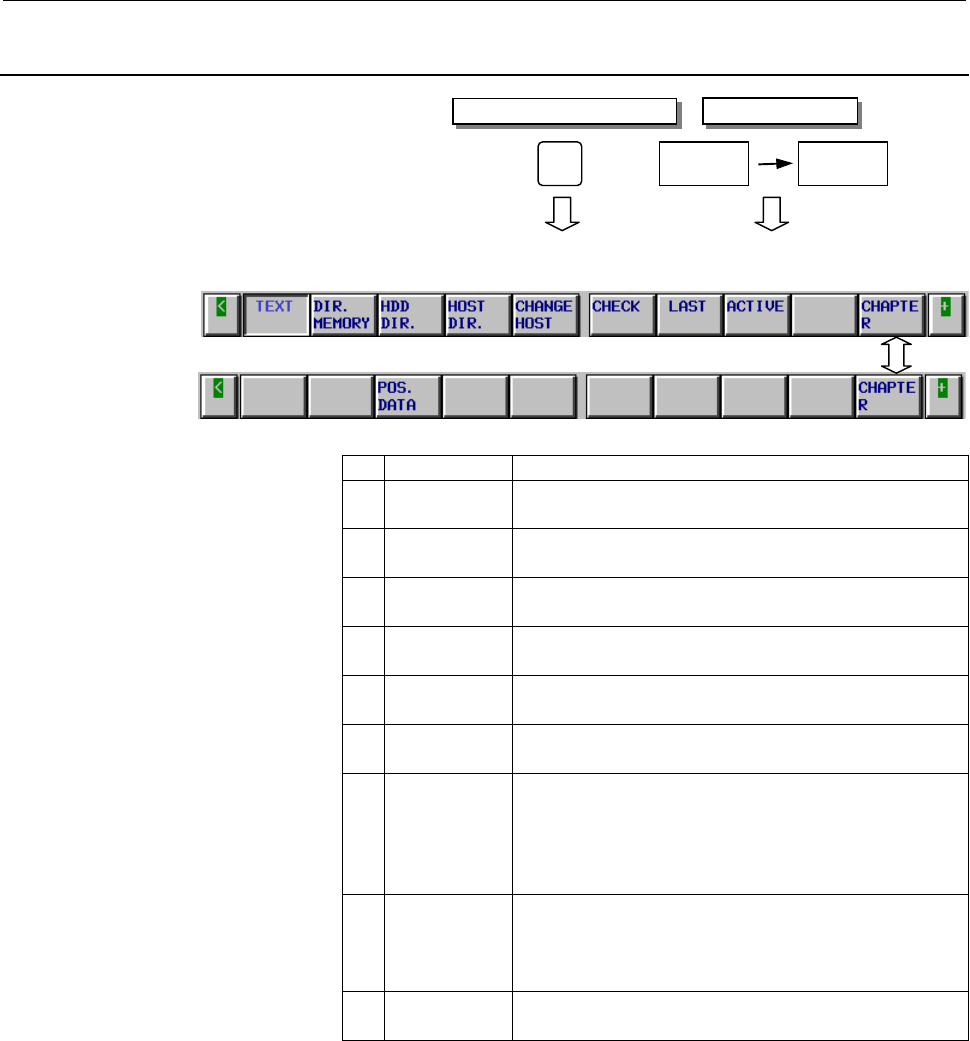

(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)

(11) (12) (13) (14) (15) (16) (17) (18) (19)

No. Chapter menu Explanation

(1) TEXT Selects the screen for displaying the contents of a

currently selected part program.

(2) DIR. MEMORY Selects the screen for displaying a list of currently

registered part programs.

(3) HDD DIR. Selects the screen for displaying a list of files saved on

the hard disk of the data server.

(4) HOST DIR. Selects the screen for displaying a list of files on the host

computer.

(5) CHANGE

HOST

Selects the screen for changing to connect the host

computer.

(6) CHECK Selects the screen for displaying a program, positions,

modal information, and so forth at the same time.

(7) LAST Selects the screen for displaying the values specified in

the block immediately preceding the block currently

being executed, and modal values such as G code and F

code which were specified in the blocks up to the

preceding block.

(8) ACTIVE Selects the screen for displaying the values specified in

the block currently being executed, and modal values

such as G code and F code which were specified in the

blocks up to the current block.

(13) POS.DATA Selects the screen for displaying information about

position compensation.

PROG PROGRAM

CHAPTER

Function key on the MDI panel Soft keys
